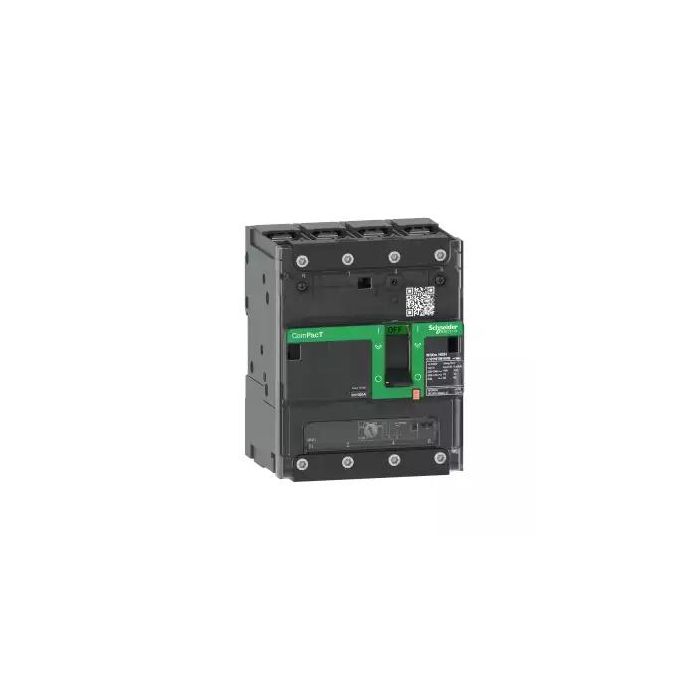

Schneider Electric NSXm160B 25kA AC 4P3D 125A TMD BUSBAR (Model: C12B6TM125B)
Product Overview
The Schneider Electric NSXm160B is a high-performance molded case circuit breaker designed for reliable protection of electrical circuits. This 4-pole (3D) version with 125A TMD trip unit and busbar connection offers superior protection for your electrical installations.
Key Features
- Model: C12B6TM125B
- Range: NSXm160B
- Breaking Capacity: 25kA at 415V AC
- Number of Poles: 4P3D (4 poles with 3 protected poles)
- Rated Current: 125A
- Trip Unit: Thermal Magnetic (TMD)
- Connection Type: Busbar
- Standards Compliance: IEC 60947-2
- Brand: Schneider Electric – A global leader in energy management and automation
Applications
Ideal for commercial and industrial applications including:
- Main distribution boards
- Motor protection circuits
- Generator protection
- HVAC systems
- Industrial machinery
Why Choose This Product?
- Reliable protection against overloads and short circuits
- Compact design saves panel space
- Easy installation with busbar connection
- High breaking capacity for demanding applications
- Schneider Electric quality and reliability
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Operational Voltage (Ue) | 415V AC |
| Rated Insulation Voltage (Ui) | 690V AC |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 25kA at 415V AC |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
Package Contents
- 1 x Schneider Electric NSXm160B 125A TMD Circuit Breaker (Model C12B6TM125B)
- Product documentation
Note: For optimal performance and safety, we recommend professional installation by a qualified electrician.
