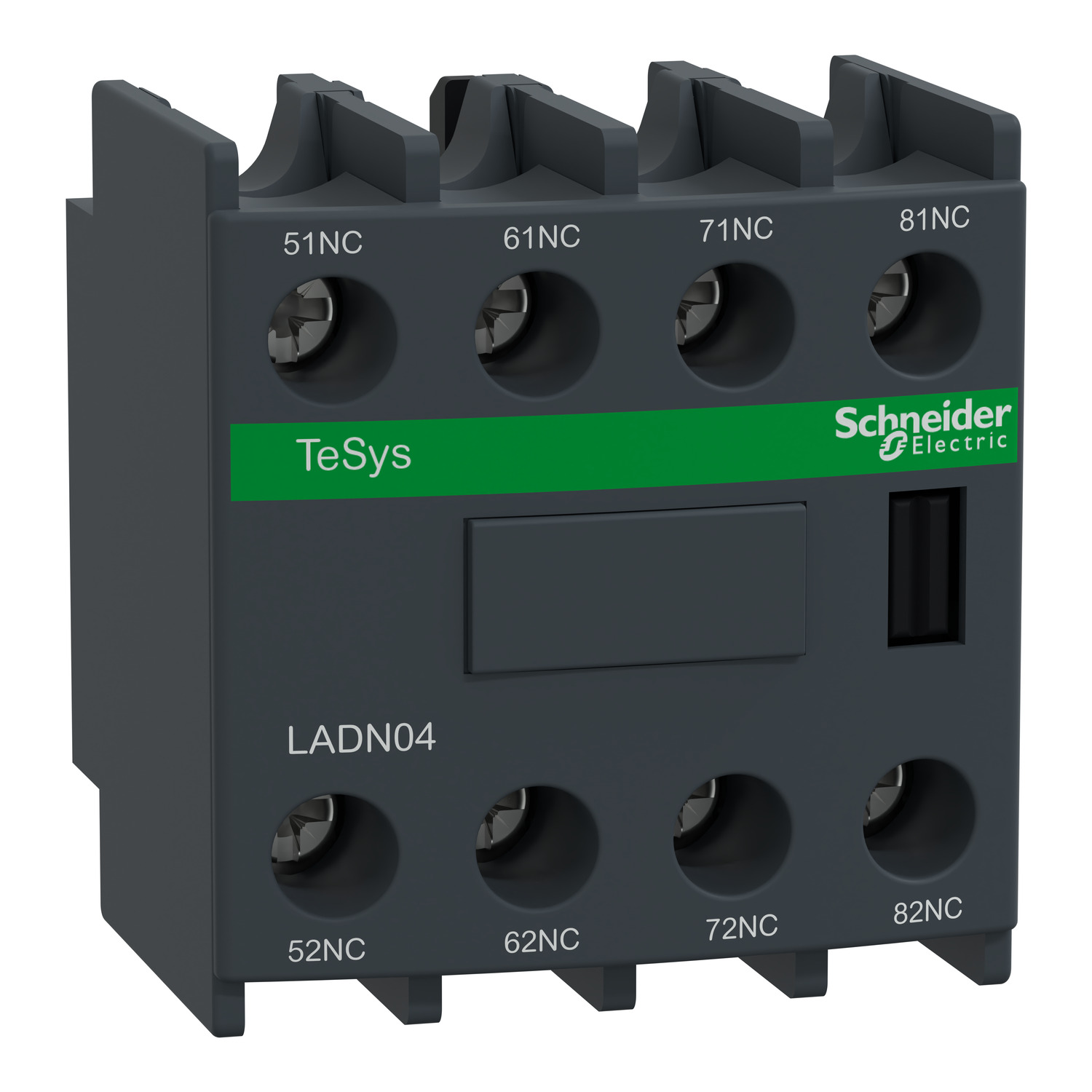

LADN04 – Auxiliary Contact Block
TeSys D, 4NC, Front Mounting, Screw Clamp Terminals
Manufacturer: Schneider Electric
Product Code: LADN04
Description: The LADN04 is an auxiliary contact block designed for use with TeSys D contactors. It features 4 normally closed (NC) contacts and is mounted on the front of the contactor. The screw clamp terminals ensure secure and reliable connections.
Key Features:
- Number of Contacts: 4 NC (Normally Closed)
- Mounting Type: Front Mounting
- Terminal Type: Screw Clamp Terminals
- Compatibility: Designed for TeSys D contactors
- Electrical Rating: Suitable for low voltage applications
- Mechanical Life: High durability with a long mechanical life
- Installation: Easy to install and replace
- Safety: Complies with international safety standards
Applications:
The LADN04 auxiliary contact block is ideal for use in industrial control systems, motor control centers, and other applications requiring reliable auxiliary contacts for signaling or interlocking purposes.
Technical Specifications:
| Parameter | Value |
|---|---|
| Number of Contacts | 4 NC |
| Mounting Position | Front |
| Terminal Type | Screw Clamp |
| Rated Voltage | Up to 690V AC |
| Rated Current | Up to 6A |
| Mechanical Life | 10 million operations |
| Electrical Life | 1 million operations |
| Operating Temperature | -25°C to +55°C |
| Standards | IEC 60947-5-1, UL 508 |
Additional Information:
For more detailed technical information, installation guidelines, and safety instructions, please refer to the official Schneider Electric product documentation or contact their customer support.
