LC1E65F7 | Easy TeSys Contactor

Product Overview

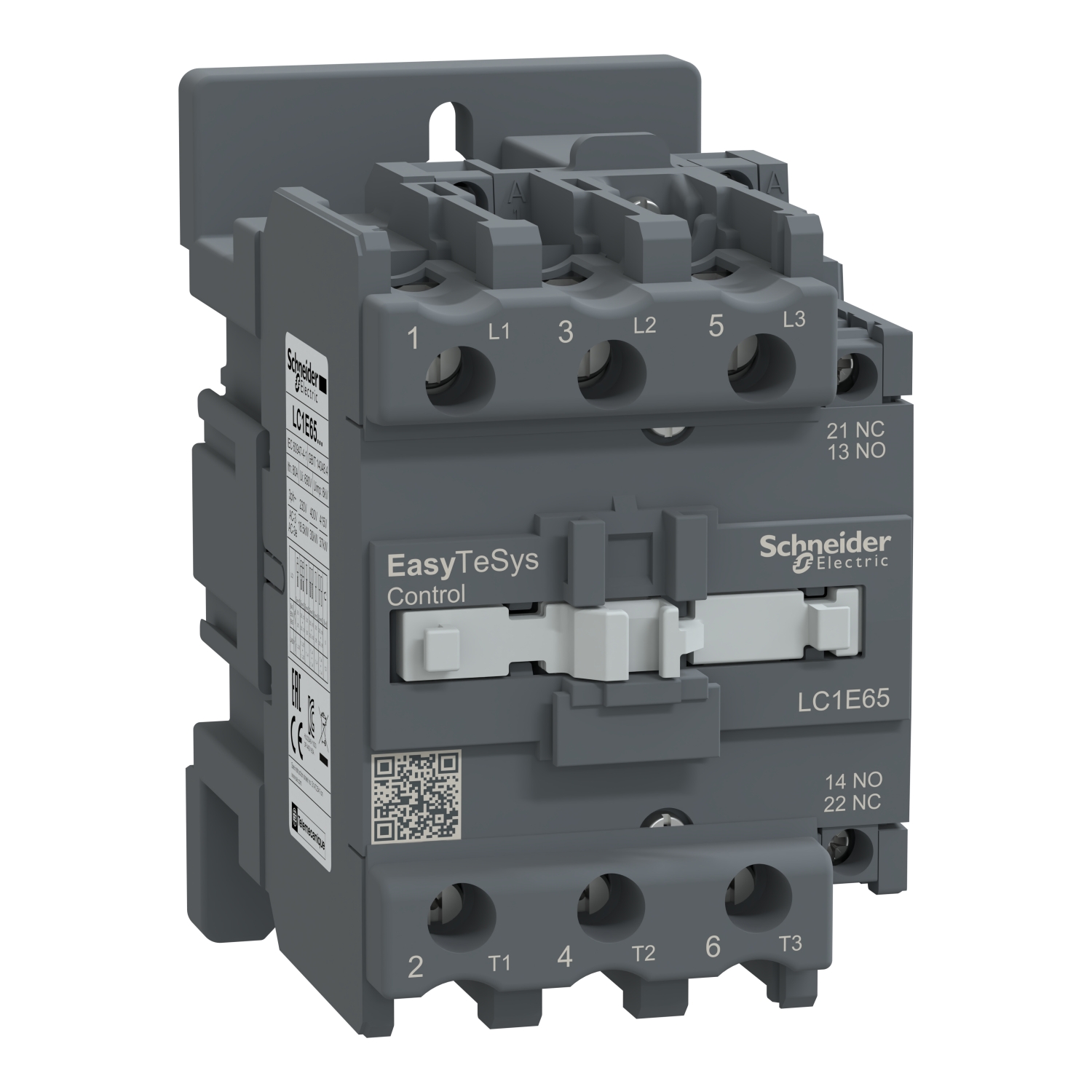

The LC1E65F7 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for a wide range of industrial and commercial applications, offering high performance and durability.

Key Features

• Type: Contactor
• Poles: 3P (3 Normally Open Contacts)
• Rated Operational Current (Ie): 65A
• Rated Operational Voltage (Ue): ≤ 440V AC
• Utilization Category: AC-3 (Squirrel cage motors: starting, switching off)
• Coil Voltage: 110V AC
• Mounting: Screw mounting or snap-on mounting
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant
• Standards: IEC 60947-4-1, IEC 60947-5-1
• Dimensions: Compact design for space-saving installation
• Accessories: Compatible with auxiliary contacts, timers, and mechanical interlocks

Applications

The LC1E65F7 contactor is ideal for controlling motors, lighting, heating, and other electrical loads in various industries, including manufacturing, HVAC, and automation.

Benefits

• High reliability and long service life
• Easy installation and maintenance
• Compact and modular design
• Compatible with a wide range of accessories
• Energy-efficient operation

Technical Specifications

Warranty

Schneider Electric offers a standard warranty of 24 months from the date of purchase, subject to terms and conditions.
