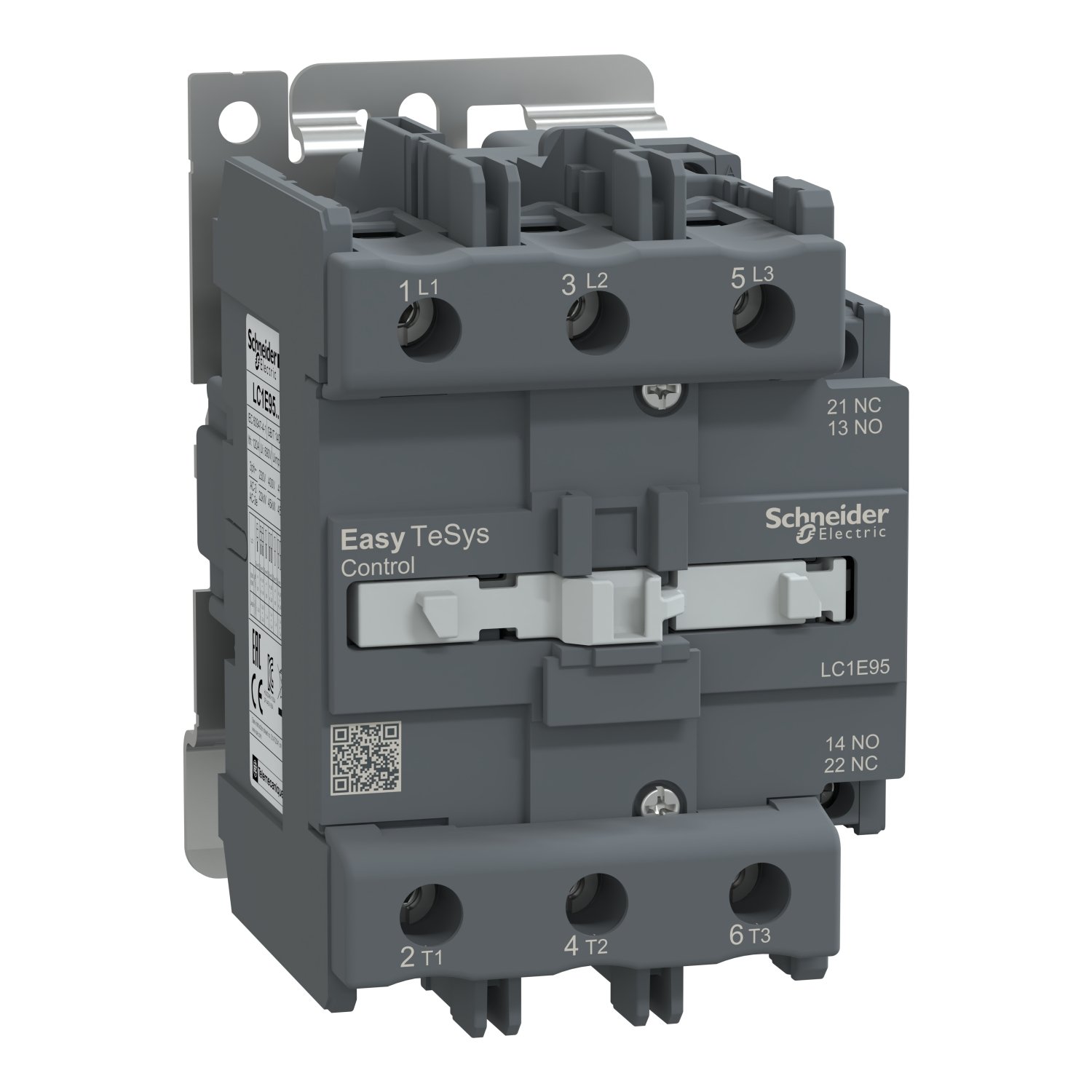

LC1E95F7 | Easy TeSys Contactor
Product Overview
The LC1E95F7 is a 3-pole contactor from Schneider Electric’s Easy TeSys series, designed for reliable switching of electrical loads. It is suitable for AC-3 applications and operates at voltages up to 440 V with a current rating of 95 A. The contactor features a 110 V AC coil, making it ideal for industrial and commercial applications.
Key Features
- Type: Contactor
- Poles: 3P (3 Normally Open Contacts)
- Rated Operational Current (Ie): 95 A
- Rated Operational Voltage (Ue): Up to 440 V AC
- Coil Voltage: 110 V AC
- Application Category: AC-3 (Squirrel Cage Motors)
- Mechanical Durability: High number of mechanical operations
- Electrical Durability: High number of electrical operations
- Mounting: Screw mounting or snap-on mounting
- Terminal Type: Screw terminals for secure connections
- Compatibility: Compatible with Schneider Electric’s TeSys accessories
- Safety Standards: Complies with international standards (IEC, UL, etc.)
Applications
The LC1E95F7 contactor is widely used in:
- Motor control applications
- Industrial machinery
- HVAC systems
- Pump control
- Lighting control
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Thermal Current (Ith) | 95 A |
| Power Consumption (Coil) | Low power consumption |
| Operating Temperature Range | -25°C to +60°C |
| Weight | Approx. 0.8 kg |
Advantages
- Compact and robust design
- Easy installation and maintenance
- High performance and reliability
- Energy-efficient operation
- Wide range of compatible accessories
Warranty and Support
Schneider Electric offers a standard warranty on this product. For technical support and warranty claims, contact Schneider Electric’s customer service.
