LC1D25BL | TeSys D Contactor

Product Overview

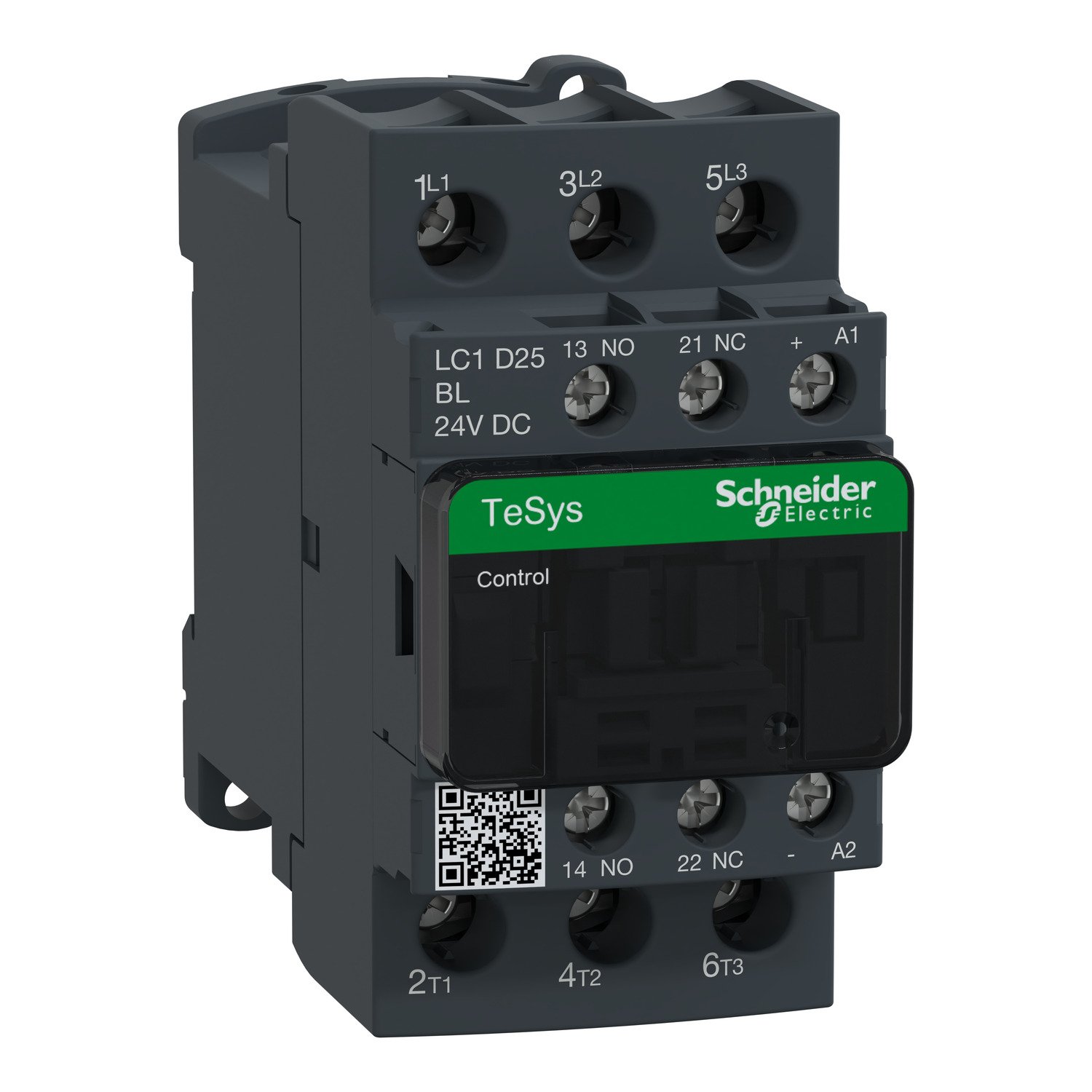

The LC1D25BL is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling three-phase motors and other electrical loads. This contactor is part of the TeSys D range, known for its reliability and performance in industrial applications.

Key Features

• Type: 3P (3 NO) – 3 Pole, 3 Normally Open contacts
• Rated Current: 25 A
• Rated Voltage: ≤ 440 V AC
• Coil Voltage: 24 V DC
• Utilization Category: AC-3 (Squirrel cage motors: starting, switching off)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Snap-on mounting, DIN rail compatible
• Terminal Type: Screw terminals
• Dimensions: Compact design for space-saving installation
• Standards: Complies with IEC 60947-4-1, UL 508, CSA C22.2 No. 14
• Environmental Conditions: Suitable for operation in temperatures ranging from -25°C to +60°C
• Protection Degree: IP20 (finger-safe protection)

Applications

The LC1D25BL contactor is ideal for use in various industrial and commercial applications, including:

• Motor control in HVAC systems
• Pump and fan control
• Conveyor systems
• Compressors and other heavy-duty machinery

Advantages

• High reliability and long service life
• Easy installation and maintenance
• Compatible with a wide range of accessories (e.g., auxiliary contacts, timers)
• Energy-efficient design with low power consumption

Technical Support

For technical support, installation guidance, or troubleshooting, contact Schneider Electric’s customer service or visit their official website.
