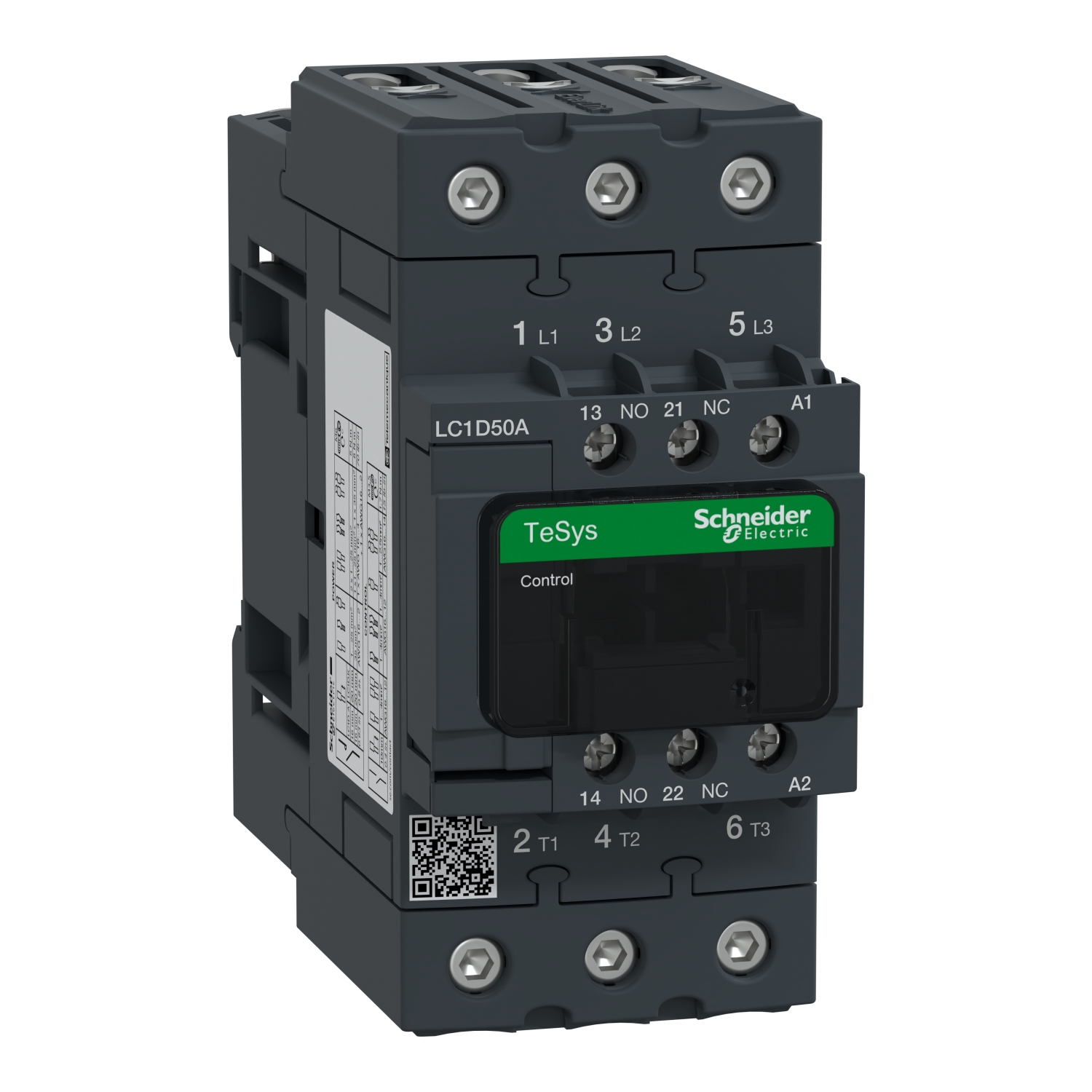

LC1D50AD7 | TeSys D Contactor – Schneider Electric

Product Description

The LC1D50AD7 is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It is a 3-pole contactor with 3 normally open (NO) contacts, suitable for AC-3 applications. This contactor is ideal for controlling motors and other high-power loads in industrial and commercial environments.

Key Features

• Type: TeSys D Contactor
• Poles: 3P (3 NO)
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Rated Operational Current (Ie): 50 A
• Coil Voltage: 42 V AC 50/60 Hz
• Application Category: AC-3 (Squirrel cage motors)
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Mounting: Screw mounting or snap-on mounting
• Terminal Type: Screw terminals
• Environmental Compliance: RoHS compliant
• Standards: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1D50AD7 contactor is widely used in various applications, including:

• Motor control in industrial machinery
• HVAC systems
• Pump control
• Compressor control
• Lighting control

Dimensions and Weight

• Width: 45 mm
• Height: 80 mm
• Depth: 73 mm
• Weight: Approx. 0.35 kg

Additional Information

For more details, including technical specifications, installation instructions, and safety guidelines, please refer to the official Schneider Electric product documentation or contact their customer support.
