LC1D65ABD | TeSys D Contactor – Schneider Electric

Product Overview

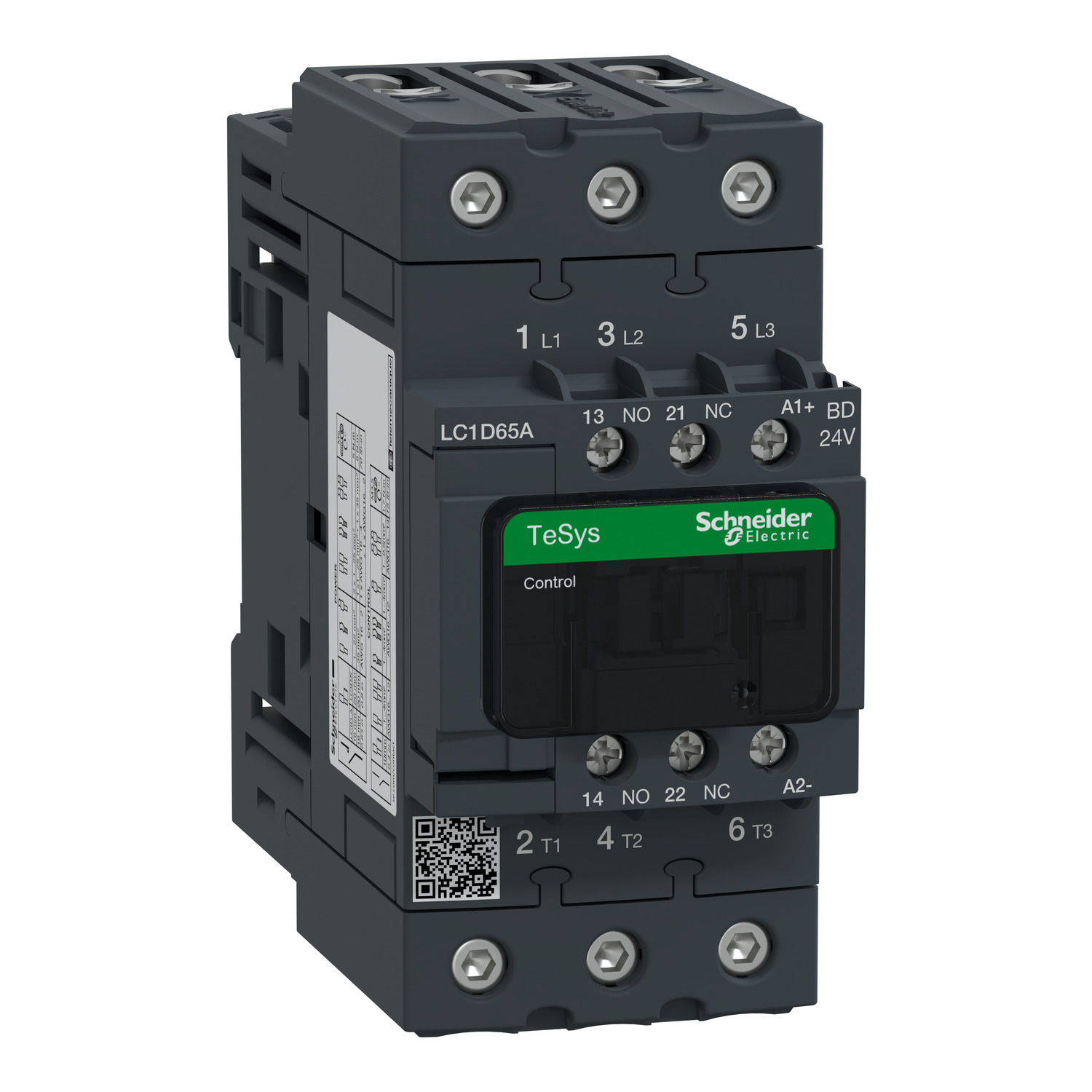

The LC1D65ABD is a TeSys D contactor from Schneider Electric, designed for reliable switching of electrical loads. It is suitable for a wide range of industrial applications, offering high performance and durability.

Key Features

• Type: Contactor
• Number of Poles: 3P (3 Normally Open Contacts)
• Rated Operational Current (Ie): 65 A
• Rated Operational Voltage (Ue): ≤ 440 V AC
• Utilization Category: AC-3 (Squirrel cage motors: starting, switching off)
• Coil Voltage: 24 V DC
• Coil Type: Standard
• Mounting: Screw mounting or snap-on mounting
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations
• Ambient Temperature Range: -25°C to +60°C
• Protection Degree: IP20 (finger-safe)
• Compliance: IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 14

Applications

The LC1D65ABD contactor is ideal for controlling three-phase motors, heating systems, and other industrial loads. It is commonly used in:

• Motor control centers
• HVAC systems
• Industrial automation
• Pump and fan control

Additional Features

• Modular Design: Allows easy integration with auxiliary contacts, timers, and other accessories.
• Compact Size: Space-saving design for efficient panel layout.
• High Performance: Ensures reliable operation under demanding conditions.
• Easy Installation: Quick and simple mounting options.

Technical Specifications

Warranty

Schneider Electric offers a standard warranty of 24 months from the date of purchase, subject to terms and conditions.
