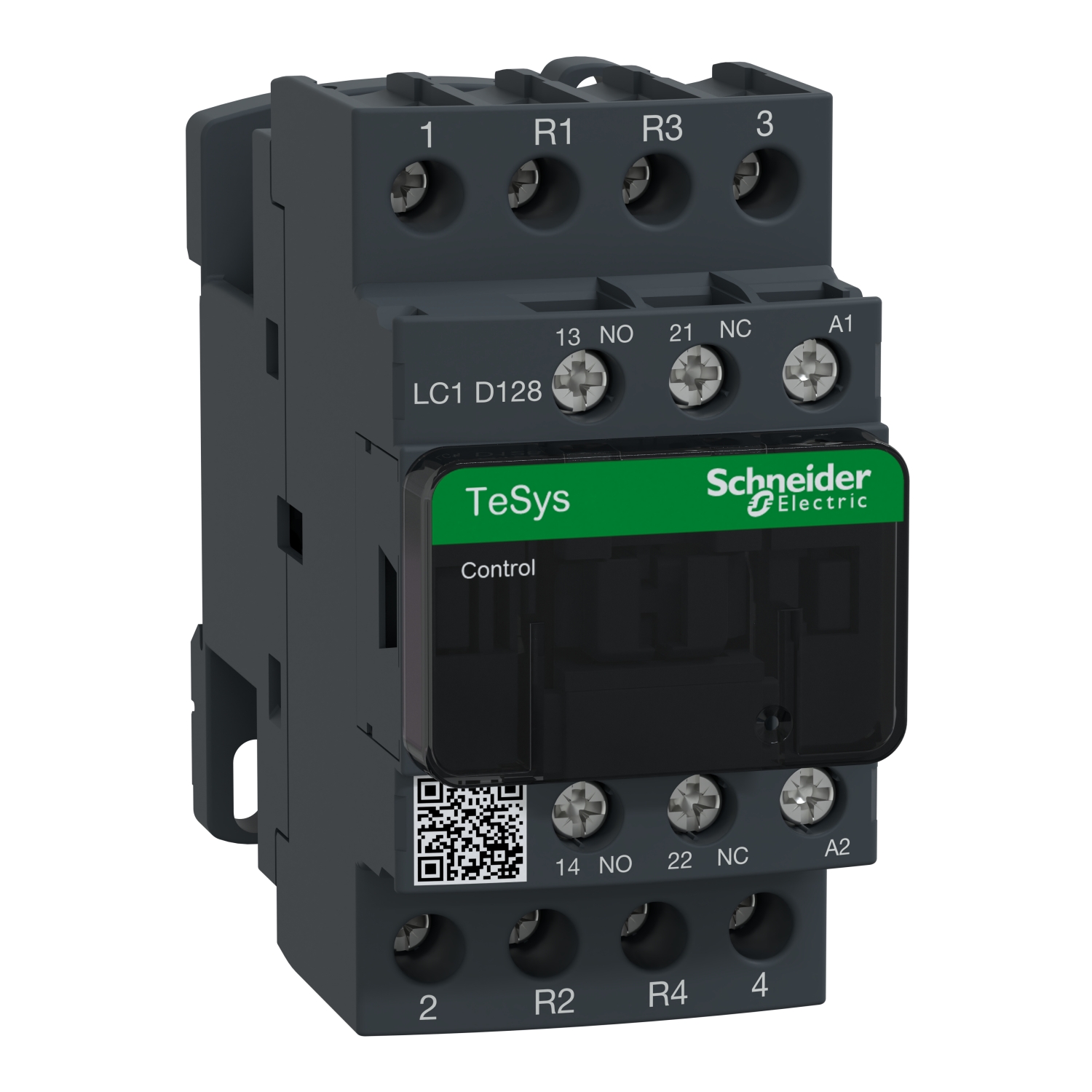

LC1D128M7 | TeSys D Contactor – Schneider Electric
Product Description
The LC1D128M7 is a TeSys D contactor from Schneider Electric, designed for reliable and efficient control of electrical circuits. It features a 4-pole configuration with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, making it versatile for various applications. This contactor is suitable for AC-1 applications and operates at voltages up to 440 V with a current rating of 25 A. It is equipped with a 220 V AC coil, ensuring compatibility with standard power supplies.
Key Features
- Type: TeSys D Contactor
- Poles: 4P (2 NO + 2 NC)
- Application: AC-1
- Voltage Rating: ≤ 440 V
- Current Rating: 25 A
- Coil Voltage: 220 V AC
- Mounting: DIN Rail or Screw Mounting
- Contact Material: Silver Alloy
- Mechanical Life: Up to 10 million operations
- Electrical Life: Up to 1 million operations
- Operating Temperature: -25°C to +60°C
- Protection Degree: IP20 (Finger-safe)
- Dimensions: Compact design for space-saving installation
- Compliance: Meets international standards (IEC, UL, CSA)
Applications
The LC1D128M7 contactor is ideal for use in various industrial and commercial applications, including:
- Motor control
- Lighting control
- Heating systems
- Power distribution
- Automation systems
Benefits
- High reliability and durability
- Easy installation and maintenance
- Compact and space-saving design
- Compatible with a wide range of accessories
- Energy-efficient operation
Technical Specifications
Parameter | Value |
---|---|
Rated Operational Voltage (Ue) | ≤ 440 V |
Rated Operational Current (Ie) | 25 A |
Coil Voltage | 220 V AC |
Power Consumption | Low power consumption for energy efficiency |
Weight | Approx. 0.5 kg |
Accessories
The LC1D128M7 contactor is compatible with a range of Schneider Electric accessories, including auxiliary contacts, thermal overload relays, and mounting kits.
Warranty
Schneider Electric offers a standard warranty on the LC1D128M7 contactor, ensuring quality and reliability. Please refer to the manufacturer’s warranty policy for detailed terms and conditions.
Contact Information
For more information or to place an order, please contact Schneider Electric or your local distributor.
