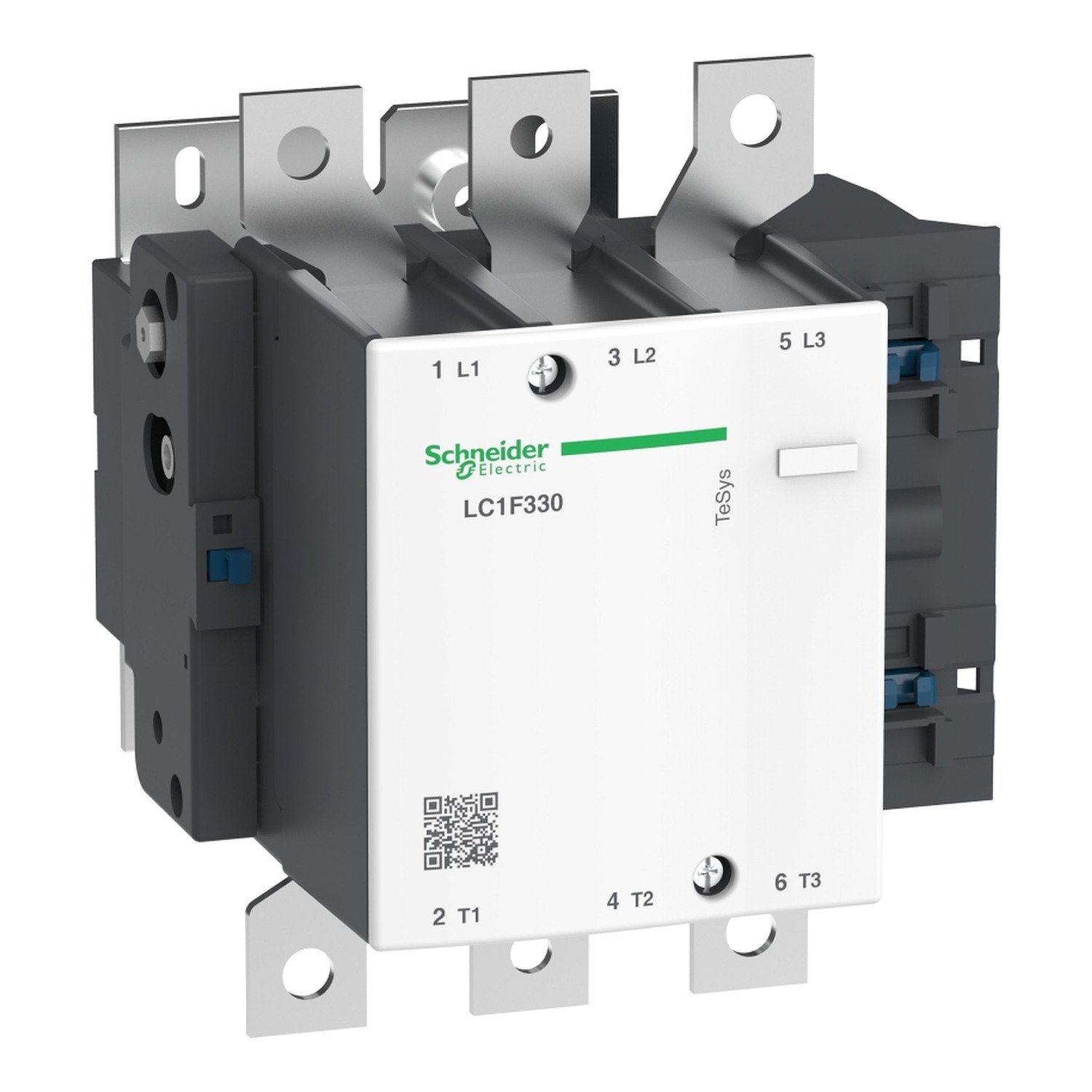

LC1F330 | TeSys F Contactor – Schneider Electric
Product Overview
The LC1F330 is a TeSys F contactor from Schneider Electric, designed for heavy-duty industrial applications. It is a 3-pole contactor with 3 Normally Open (NO) contacts, suitable for AC-3 applications up to 440V and 330A. The contactor is compatible with a wide range of coil voltages, making it versatile for various electrical systems.
Key Features
- Type: TeSys F Contactor
- Poles: 3P (3 NO)
- Rated Current: 330A
- Rated Voltage: AC-3 ≤ 440V

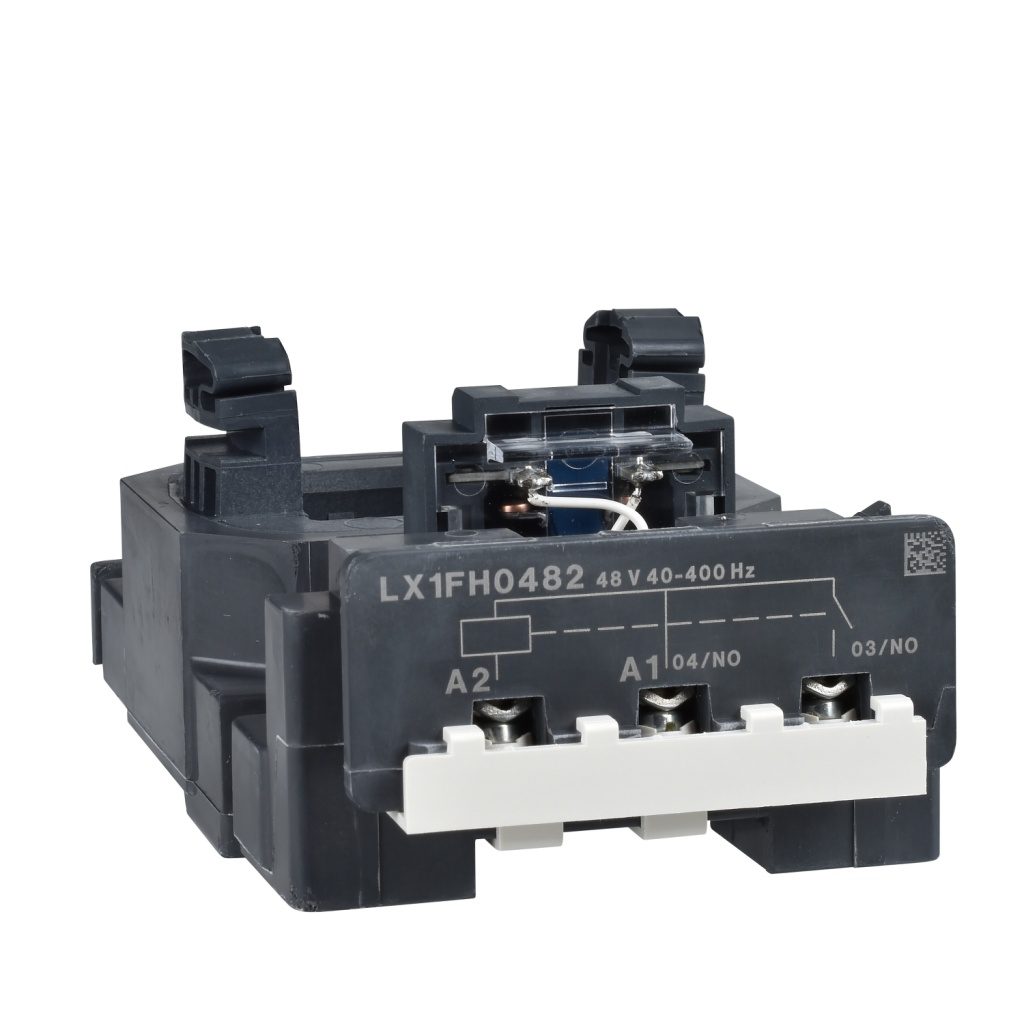

- Coil Voltage Options:
- LX1/LX9: 24…1000V AC 40/400Hz
- LX4: 24…460V DC
- LXE: 100…250V AC 50/60Hz or 100…380V DC
- Application: Suitable for motor control, power distribution, and other industrial applications.
- Durability: High mechanical and electrical endurance, ensuring long service life.
- Mounting: Easy to install with standard mounting options.
- Safety: Complies with international standards for safety and performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Number of Poles | 3P (3 NO) |
| Rated Current (Ie) | 330A |
| Rated Voltage (Ue) | ≤ 440V AC |
| Coil Voltage Range |
|
| Mechanical Life | Up to 10 million operations |
| Electrical Life | Up to 1 million operations |
| Mounting Type | Standard DIN rail or panel mounting |
| Weight | Approx. 2.5 kg |
Applications
The LC1F330 contactor is ideal for a wide range of industrial applications, including:
- Motor control and protection
- Power distribution systems
- Heavy machinery and equipment
- HVAC systems
- Industrial automation
Compliance and Standards
The LC1F330 contactor complies with the following international standards:
- IEC 60947-4-1
- UL 60947-4-1
- CSA C22.2 No. 14
- CE Marked
Contact Information
For more information, please contact Schneider Electric or your local distributor.
Website: www.se.com
