Product Description – C40F32D400

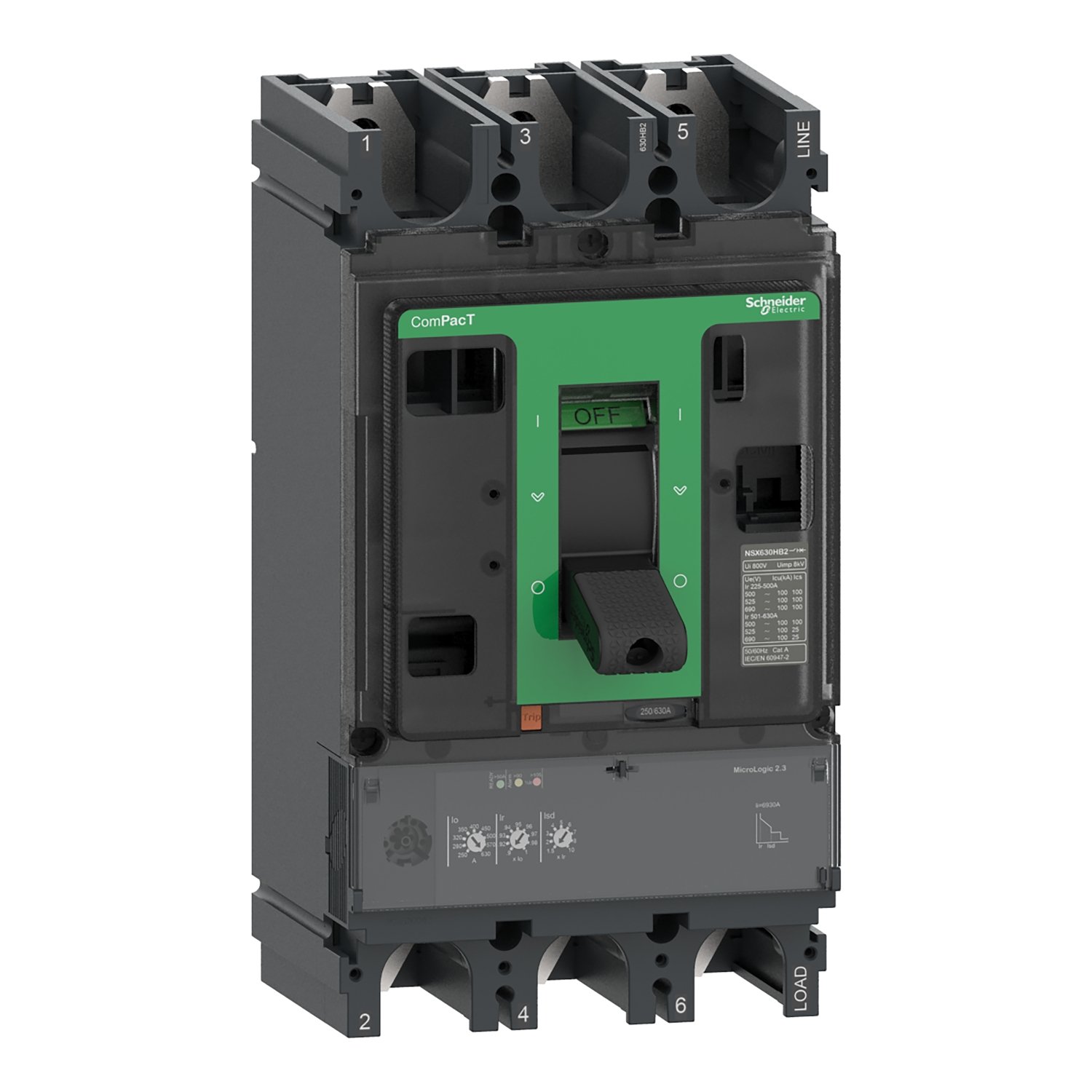

Circuit Breaker – ComPacT NSX400F

Model: C40F32D400

Manufacturer: Schneider Electric

Type: Circuit Breaker

Series: ComPacT NSX

Rated Current: 400A

Number of Poles: 3

Breaking Capacity: 36kA at 415V AC

Trip Unit: MicroLogic 2.3

Voltage Rating: 415V AC

Mounting: Fixed

Standards: IEC 60947-2, IEC 60947-4-1, IEC 60947-5-1

Features:

• High breaking capacity for reliable protection
• MicroLogic 2.3 trip unit for precise protection settings
• Compact design for space-saving installation
• Easy to install and maintain
• Compatible with a wide range of accessories
• Designed for use in industrial and commercial applications

Applications:

• Protection of electrical circuits in industrial environments
• Motor protection and control
• Distribution boards and panelboards
• Commercial and residential buildings

Dimensions:

• Width: 105mm
• Height: 180mm
• Depth: 85mm

Weight: 3.5kg

Environmental Conditions:

• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 95% at +40°C

Certifications:

• CE Marked
• UL Listed
• RoHS Compliant

Warranty: Standard manufacturer warranty applies
