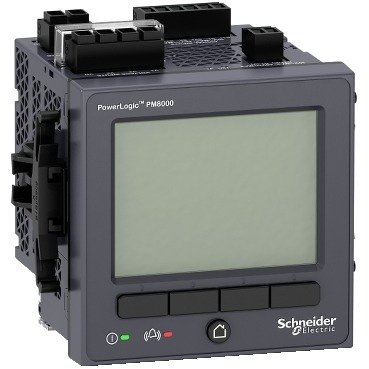

PowerLogic PM8000 – PM8240 Panel Mount Meter
Intermediate Metering Solution by Schneider Electric
Product Overview
The PowerLogic PM8000 series, specifically the PM8240 model, is a panel-mounted meter designed for intermediate metering applications. It provides accurate energy measurement and monitoring for a wide range of electrical systems, making it ideal for commercial, industrial, and utility applications.
Key Features
- Advanced Measurement Capabilities: Measures voltage, current, power, energy, frequency, and power factor with high accuracy.
- Multi-Circuit Monitoring: Supports up to 12 circuits, enabling comprehensive energy monitoring across multiple loads.
- Communication Options: Equipped with Modbus, BACnet, and Ethernet/IP protocols for seamless integration into building management systems (BMS) and SCADA systems.
- User-Friendly Interface: Features a clear LCD display with intuitive navigation for easy configuration and data viewing.
- Compact Design: Panel-mounted form factor saves space and simplifies installation in electrical panels.
- Energy Efficiency Monitoring: Tracks energy consumption and identifies inefficiencies to support energy-saving initiatives.
- Harmonics Analysis: Provides detailed harmonic distortion analysis up to the 31st harmonic for improved power quality monitoring.
- Alarm and Event Logging: Records alarms and events for troubleshooting and system optimization.
- Robust Construction: Built to withstand harsh industrial environments with high durability and reliability.
- Compliance: Meets international standards such as IEC, ANSI, and UL for safety and performance.
Applications
The PM8240 is suitable for a variety of applications, including:
- Commercial buildings
- Industrial facilities
- Data centers
- Utility substations
- Renewable energy systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Range | 120/240V AC, 277/480V AC |
| Current Range | Up to 5A (direct) or 5000A (with CTs) |
| Accuracy | ±0.5% for voltage and current, ±1% for power and energy |
| Communication Protocols | Modbus, BACnet, Ethernet/IP |
| Display | LCD with backlight |
| Dimensions | 96mm x 96mm x 60mm |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Certifications | IEC, ANSI, UL, CE |
Why Choose PM8240?
The PowerLogic PM8240 offers a reliable and cost-effective solution for intermediate metering needs. Its advanced features, robust design, and compatibility with various communication protocols make it a versatile choice for energy management and power quality monitoring.
