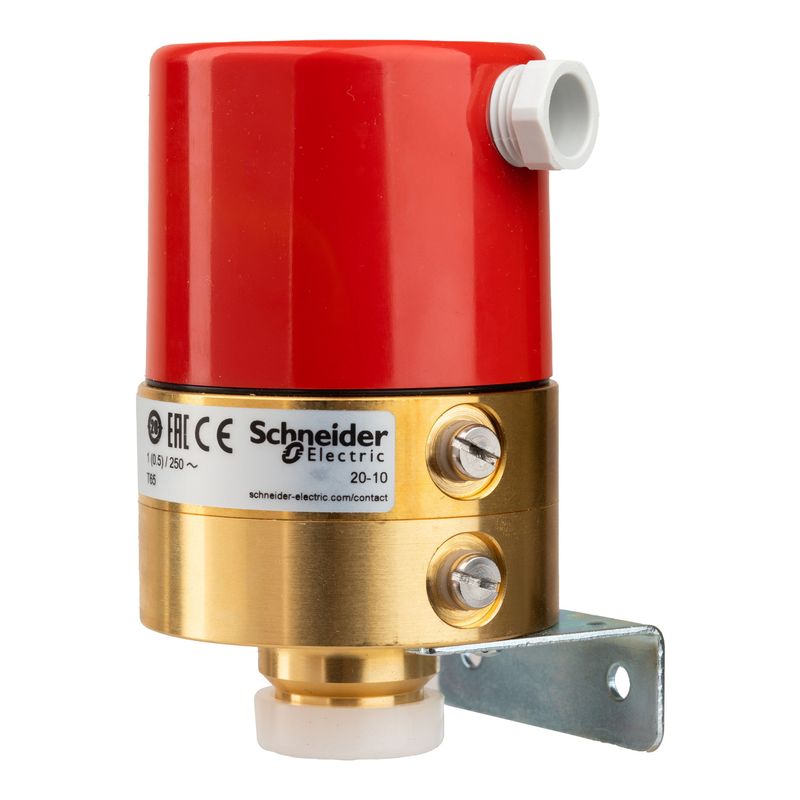

004701100 | Diff Press Switch 6 to 20mbar – Schneider Electric
Original price was: ₹52,962.00.₹30,717.96Current price is: ₹30,717.96. Excl. GST
Dispatch By : 7 Weeks
Dispatch By : 7 Weeks
19
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Range of product | SPP920 |
| Product or component type | Pressure transmitter sensor |
| Sensor model | SPP920-020 |
| Type of measurement | Differential pressure |
| Device application | Pump and compressor monitoring Energy and water management |
| Burst pressure | 145 psig (10 bar) |
| Product certifications | CE |
| Controlled fluid | Wet |
| Fitting size | G 1/8" |
| Fitting type | Female |
| IP degree of protection | IP65 |
| location | Plant room |
| Mounting support | Pipe |
| Depth | 65 mm |
| Height | 94 mm |
| Net weight | 1000 g |
| Width | 65 mm |
| Pressure measurement range | 0.09…0.29 psi (6…20 mbar) |
| Ambient air temperature for operation | -10…80 °C |
| Wiring technique | 3-wire |
| Calibration certificate | None |
| Load type | Resistive : 1 A at 250 V AC Inductive : 0.5 A at 250 V AC |
| Sensor type | Partial discharge sensor |
| [Us] rated supply voltage | 250 V AC |
| Targeted region | Europe Asia Pacific. |
| Complementary | |
| Mounting mode | Pipe |
| Output type | Switch output 3-wire |
| Material | Brass: enclosure |
| Display type | Dial |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.2 cm |
| Package 1 Width | 12.6 cm |
| Package 1 Length | 8.2 cm |
| Package 1 Weight | 1.139 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
