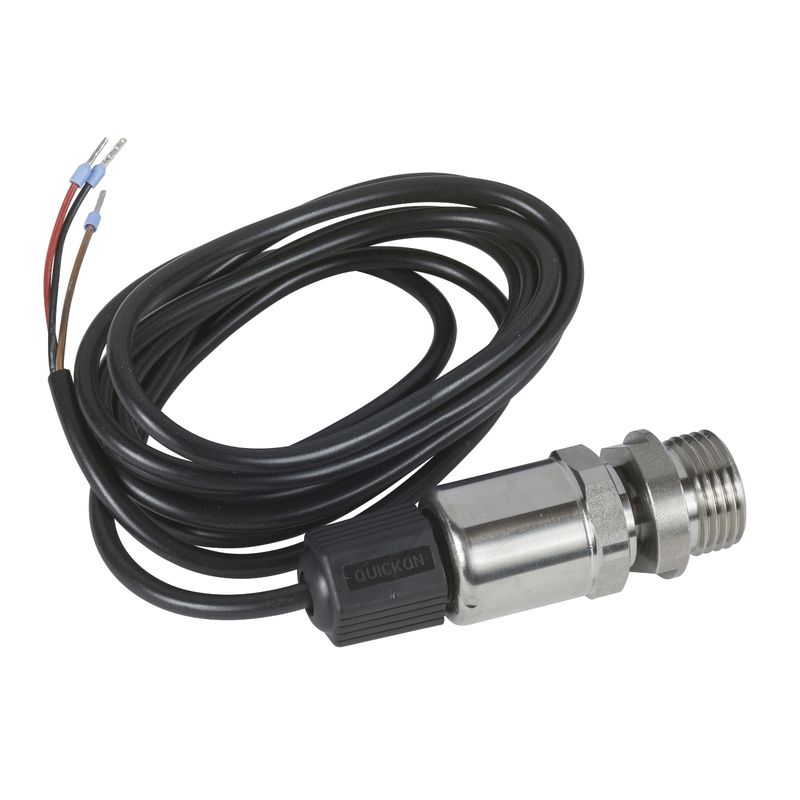

004702100 | Sensor Pres Wet SPP110-1600kPa - Schneider Electric - Image 1

    004702100 | Sensor Pres Wet SPP110-1600kPa – Schneider Electric

    SKU: 004702100

    Original price was: ₹26,070.00.Current price is: ₹15,120.60. Excl. GST

    Dispatch By : 9 Weeks

    Dispatch By : 9 Weeks

    16 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Range of productSPP110
    Product or component typePressure transmitter sensor
    Type of measurementGauge pressure
    Device applicationPump and compressor monitoring
    Analogue output type0…10 V DC
    Burst pressure464 psig (32 bar)
    Product certificationsCE
    Controlled fluidWater
    Fitting sizeG 1/4"
    G 1/2"
    Fitting typeMale
    IP degree of protectionIP65
    locationPlant room
    Mounting supportPipe
    Net weight0.13 kg
    Operating current15 mA
    Pressure measurement accuracy+/- 0.5 %
    Pressure measurement range0…232 psi (0…16 bar)
    Ambient air temperature for operation-40…105 °C
    Ambient air temperature for storage-40…115 °C
    Wiring technique3-wire
    StandardsEN 50081-1
    EN 50082-2
    Calibration certificateTemperature: none
    [Us] rated supply voltage24 V AC
    Targeted regionMiddle East and Africa.
    Asia Pacific.
    Complementary
    Measurement range0…1600 kPa
    Mounting modePipe
    MaterialPA (polyamide): connection box
    Stainless steel: membrane
    Rated voltage16…36 V DC
    24 V AC
    Output typeAnalog 3-wire
    Maximum pressure3200 kPa
    Display typeWithout display
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height13.6 cm
    Package 1 Width6.6 cm
    Package 1 Length4.2 cm
    Package 1 Weight155.16 g
    Contractual warranty
    Warranty (in months)24
