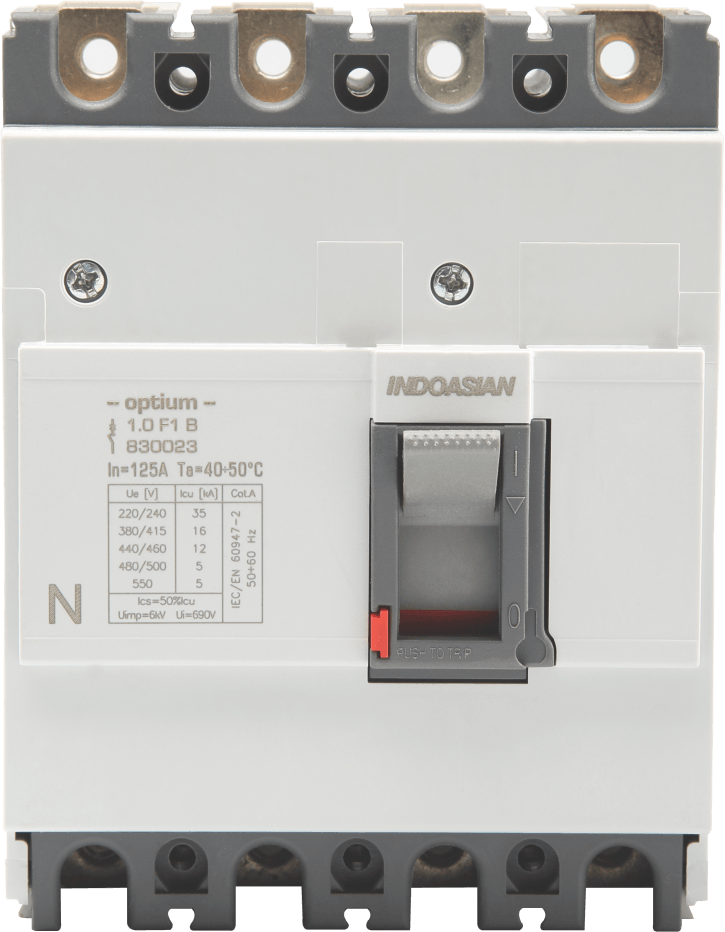

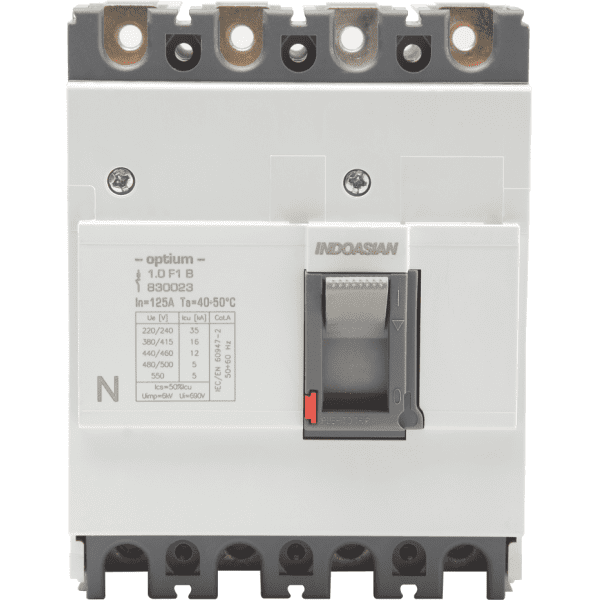

100A 4P 16KA TM Optium 1.0 Fixed F1 MCCB – Indoasian

Name: Indoasian 100A 4P 16KA Fixed MCCB - Optium 1.0 F1 | 830022
Brand: Indoasian
SKU: 830022
Price: 4370.00 INR
Availability: InStock

SKU: 830022

Original price was: ₹8,740.00.Current price is: ₹4,370.00. Excl. GST

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the 100A 4P 16KA TM Optium 1.0 Fixed F1 MCCB? This genuine Indoasian mccb is built for reliable circuit protection and isolation, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 100 A, 4 Poles. Order part number 830022 from myelectric.in — a trusted Indoasian supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Parameter	Value
Brand	Indoasian
Part Number / SKU	830022
Category	MCCB
Current Rating	100 A
Poles	4 Poles
Breaking Capacity	16 kA
Rated Operational Voltage (Ue)	415V AC (50/60 Hz)
Mounting	Fixed, front connected
Rated Frequency	50/60 Hz
Standard	IEC 60947-2 / IS 13947-2
Certifications	BIS certified (ISI mark)

⚡ Key Features

16 kA breaking capacity at 415V AC — safely clears bolted three-phase faults in commercial and light industrial switchboards.
Thermal-magnetic trip unit — factory-calibrated overload and short-circuit protection; suitable for standard feeder circuits without electronic adjustment.
4 Poles — three-phase + switched neutral (TN-S system) for full four-pole isolation per IEC 60364.
Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified (ISI mark) — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Indoasian product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What load can the 830022 protect at its rated 100 A?

A: The 830022 is rated to carry and protect circuits up to 100 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 100 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

Q: What does the 16 kA breaking capacity on the 830022 mean in practice?

A: Breaking capacity (16 kA) is the maximum prospective short-circuit current the 830022 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 16 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

Q: What trip unit type does the 830022 use — thermal-magnetic or electronic?

A: Refer to the product label or datasheet for the exact trip unit specification. The trip unit determines adjustability and protection accuracy.

Q: Is the 830022 suitable for use as a motor branch circuit protector (Type E coordination)?

A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the Indoasian coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.

Q: Can the 830022 be motorised for remote switching and automation?

A: Yes. Indoasian MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.
