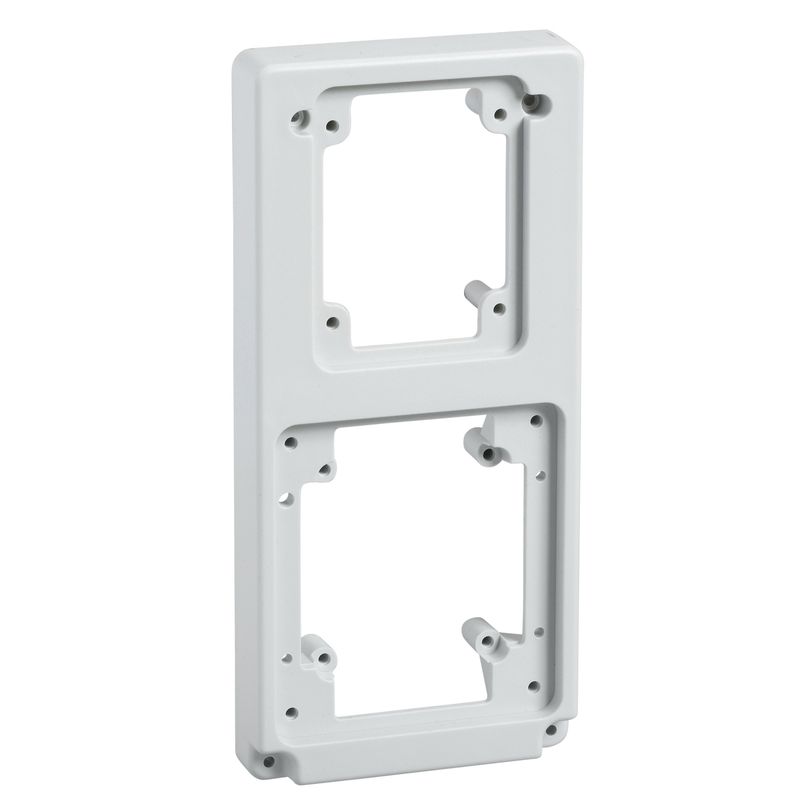

13142 | enclos. access 103×225 plate 2 openings – Schneider Electric
Original price was: ₹1,572.00.₹848.88Current price is: ₹848.88. Excl. GST
Dispatch By : 11 Weeks
Dispatch By : 11 Weeks
16
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Range of product | Kaedra |
| Product or component type | Plate |
| Type of front plate | With cut-outs |
| Accessory / separate part type | Installation accessories |
| Socket dimensions compatible | 1 gang 65 x 85 mm ofsocket-outlet 1 gang 90 x 100 mm ofsocket-outlet |
| Complementary | |
| Enclosure material | Housing: self-extinguishing polymer |
| Net weight | 0.188 kg |
| Base dimension | 103 x 225 mm |
| Width | 103 mm |
| Height | 225 mm |
| Colour | Grey (RAL 7035) |
| Environment | |
| Standards | IEC 60309-2 IEC 60309-1 |
| Fire resistance | 650 °C conforming to IEC 60695-2-11 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK09 conforming to IEC 62262 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.400 cm |
| Package 1 Width | 10.200 cm |
| Package 1 Length | 22.500 cm |
| Package 1 Weight | 143.900 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.600 cm |
| Package 2 Width | 21.600 cm |
| Package 2 Length | 27.500 cm |
| Package 2 Weight | 1.252 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 24 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.856 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
