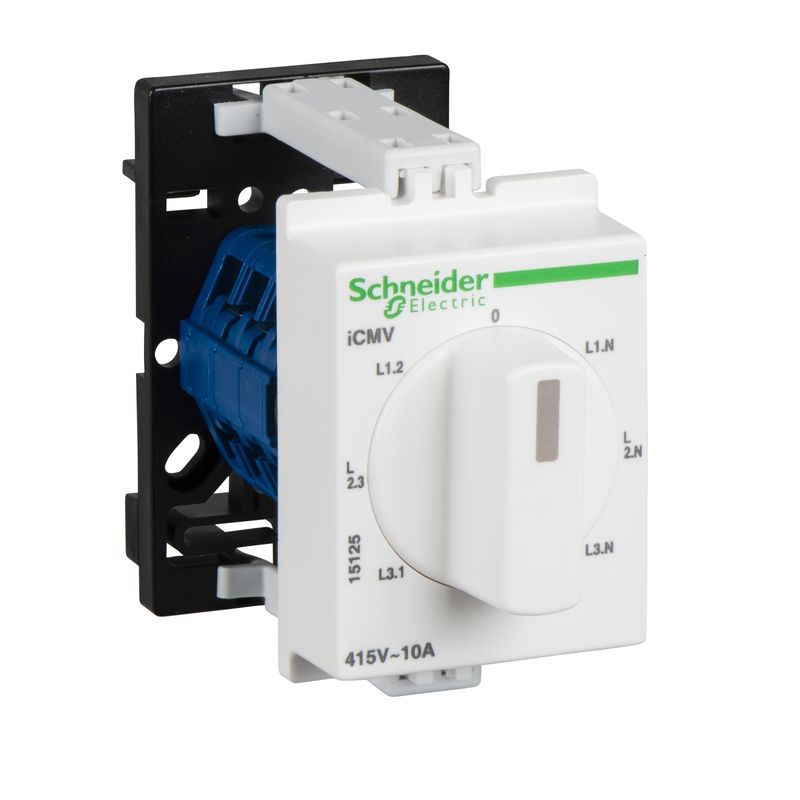

15125 | 15125 iCMV 10A 415V 4-posi selector swit – Schneider Electric

Name: 15125 - Voltmeter selector switch iCMV - 10 A | Schneider Electric
Brand: Schneider Electric
SKU: 15125
Price: 3546.64 INR
Availability: BackOrder

SKU: 15125

Original price was: ₹4,124.00.Current price is: ₹3,546.64. Excl. GST

Dispatch By : 18 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	Acti9
Range	Acti9
Product name	Acti9 iCM
Product or component type	Selector switch
Device short name	iCMV
Device application	Voltmeter selector
[Ue] rated operational voltage	< 440 V AC 50/60 Hz
Complementary
[Ith] conventional free air thermal current	10 A
[Ie] rated operational current	10 A
Control type	Rotary handle 7 positions
Marking	L3L1 – L2L3 – L1L2 – 0 – L1N – L2N – L3N
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	4
Height	60 mm
Width	36 mm
Depth	75 mm
Mechanical durability	2000000 cycles
Electrical durability	1000000 cycles
Connections – terminals	Captive screw-jumper terminals – <= 1.5 mm²
Environment
Standards	IEC 60947-3
IP degree of protection	IP66 front face: IP20 terminals:
Ambient air temperature for operation	-20…55 °C
Ambient air temperature for storage	-25…80 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.000 cm
Package 1 Width	7.500 cm
Package 1 Length	8.000 cm
Package 1 Weight	76.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	80
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	6.636 kg
Contractual warranty
Warranty (in months)	18
