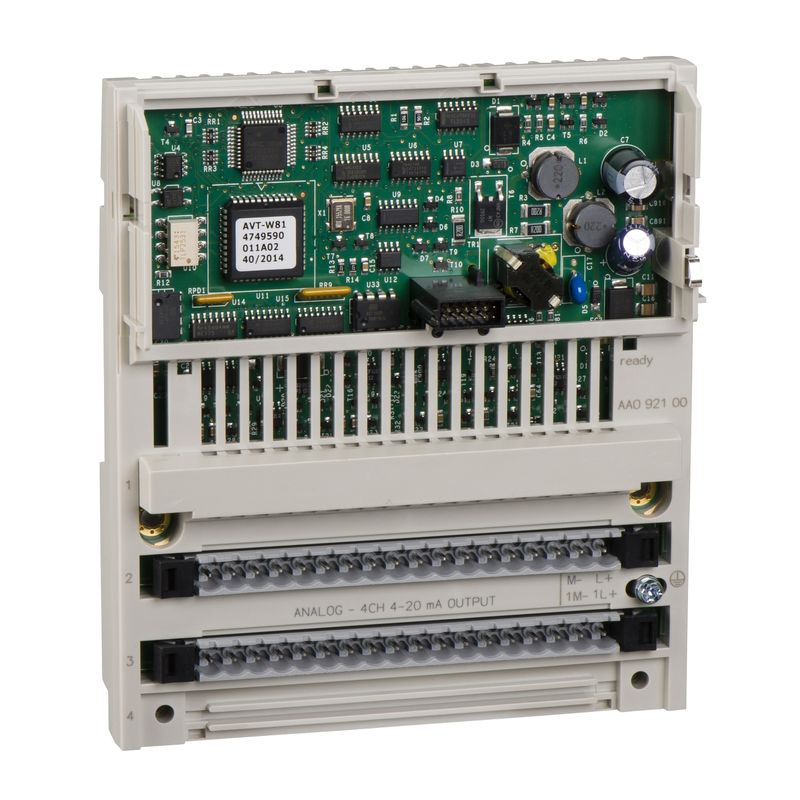

170AAO92100 | Momentum Base – 4AO, 4..20mA/-10..10V – Schneider Electric

Name: 170AAO92100 - Distributed analog output Modicon Momentum - 4 Output | Schneider Electric
Brand: Schneider Electric
SKU: 170AAO92100
Price: 124561.80 INR
Availability: BackOrder

SKU: 170AAO92100

Original price was: ₹188,730.00.Current price is: ₹124,561.80. Excl. GST

Dispatch By : 20 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	Modicon Momentum automation platform
Product or component type	Analogue output base
Analogue output number	4
Complementary
Data format	Full 16 bits signed
Analogue output range	+/- 10 V 12 bits + sign >= 1 kOhm 4…20 mA 12 bits + sign <= 0.6 kOhm
Maximum load capacitance	1 µF
Absolute accuracy error	+/- 0.2 % of full scale +/- 10 V 25 °C +/- 0.25 % full scale +/- 10 V 60 °C +/- 0.4 % of full scale 4…20 mA 25 °C +/- 0.5 % of full scale 4…20 mA 60 °C
Update time	2 ms
Full scale	10 V +/- 10 V 2 mA 4…20 mA
Fail state	Hold Reset to full scale Reset to zero
Protection type	Internal 2 A slow-blow
Output short-circuit protection	With in voltage circuit
External power requirement	+/- 30 V DC 24 V DC
Permissible common mode voltage	250 V 47…63 Hz AC between channels to ground 250 V 47…63 Hz DC
Reverse polarity protection	Internal
Module format	Standard
Temperature drift	10 %oFS/°C 30 %oFS/°C
Typical current consumption	150 mA at 24 V DC 530 mA at 24 V DC
Power dissipation in W	8.5 W
Isolation between channels and ground	500 V AC
Local signalling	4 LEDs for channel status
Height	125 mm
Width	141.5 mm
Depth	47.5 mm
Net weight	0.215 kg
Environment
Protective treatment	TC
Marking	CE
Product certifications	UL CSA
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.5 cm
Package 1 Width	18.0 cm
Package 1 Length	26.0 cm
Package 1 Weight	375.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	10
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	3.75 kg
Unit Type of Package 3	P06
Number of Units in Package 3	80
Package 3 Height	75.0 cm
Package 3 Width	40.0 cm
Package 3 Length	80.0 cm
Package 3 Weight	45 kg
Contractual warranty
Warranty (in months)	18
