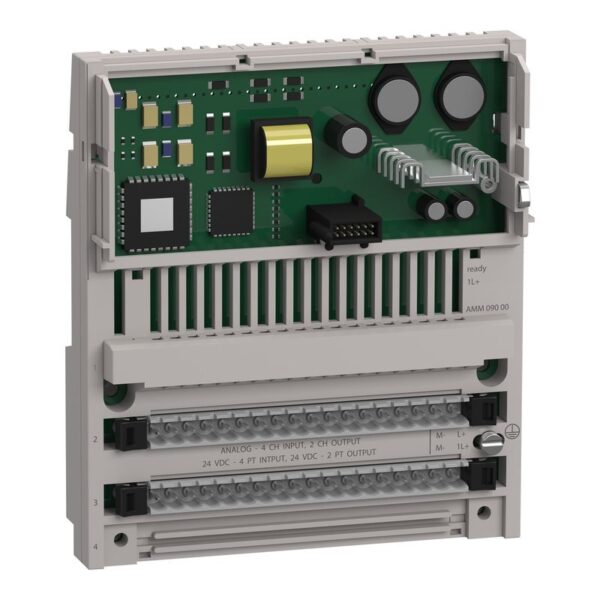

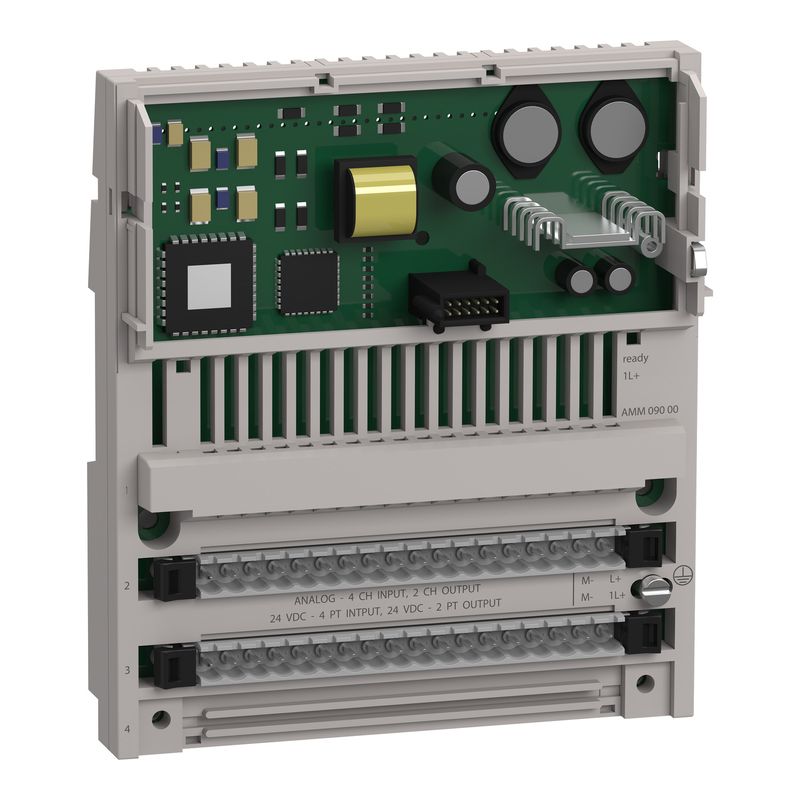

170ANR12090 | Momentum Base – 6AI/4AO 0..10V/8DI/8DO – Schneider Electric

Name: 170ANR12090 - Distributed analog/discrete I/O Modicon Momentum | Schneider Electric
Brand: Schneider Electric
SKU: 170ANR12090
Price: 162732.24 INR
Availability: BackOrder

SKU: 170ANR12090

Original price was: ₹246,564.00.Current price is: ₹162,732.24. Excl. GST

Dispatch By : 21 Weeks

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	Modicon Momentum automation platform
Product or component type	Analogue,discrete I/O base
Group of channels	1 group of 8 discrete outputs 2 groups of 4 discrete inputs 1 group of 6 analog inputs 1 group of 4 analog outputs
Analogue output range	0…10 V 14 bits
Output short-circuit protection	With discrete output
Output overload protection	With discrete output
Discrete input number	8
Complementary
Current state 0 guaranteed	<= 2 mA (discrete input)
Current state 1 guaranteed	>= 6 mA (discrete input)
Input overvoltage protection	45 V 10 s discrete input
Input resistance	1 MOhm analogue input circuit
Output load	>= 2 kOhm 0…10 V analogue output
Conversion error	+/- 0.4 % 0…10 V 25 °C analogue output 0,002 0…10 V 25 °C analogue input circuit
Fail state	For analogue output: hold For analogue output: reset to zero
Maximum voltage drop	<0.4 V 0.25 A at state on discrete output
Surge current	2.5 A 1 ms discrete output
Isolation voltage	500 V (duration = 1 min) between analogue I/O and operating voltage 500 V (duration = 1 min) between operating voltage and I/O from ground
Discrete input voltage	24 V DC
Discrete input logic	Positive
Analogue input type	Single ended, input range: 0…10 V
Analogue input resolution	14 bits
Input voltage limits	3…32 V
Discrete output logic	Positive
Discrete output current	2 A per group 2 A per module 0.25 A per point
Maximum leakage current	0.4 mA for discrete output
Conversion time	0.75 ms for analog output 1.2 ms for analogue input circuit
Analogue output resolution	14 bits, 0…10 V
Response time	1.05 ms from state 1 to state 0 for discrete output 1.2 ms from state 0 to state 1 for discrete input 1.2 ms from state 0 to state 1 for discrete output 1.2 ms from state 1 to state 0 for discrete input
[Us] rated supply voltage	24 V DC
Local signalling	4 LEDs for channel status
Current consumption	400 mA at 24 V DC
Maximum power dissipation in W	6 W
Height	125 mm
Width	141.5 mm
Depth	47.5 mm
Environment
Protective treatment	TC
Marking	CE
Product certifications	UL CSA
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	0…95 % without condensation
Operating altitude	<= 5000 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.500 cm
Package 1 Width	18.000 cm
Package 1 Length	26.000 cm
Package 1 Weight	391.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	10
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.281 kg
Contractual warranty
Warranty (in months)	18
