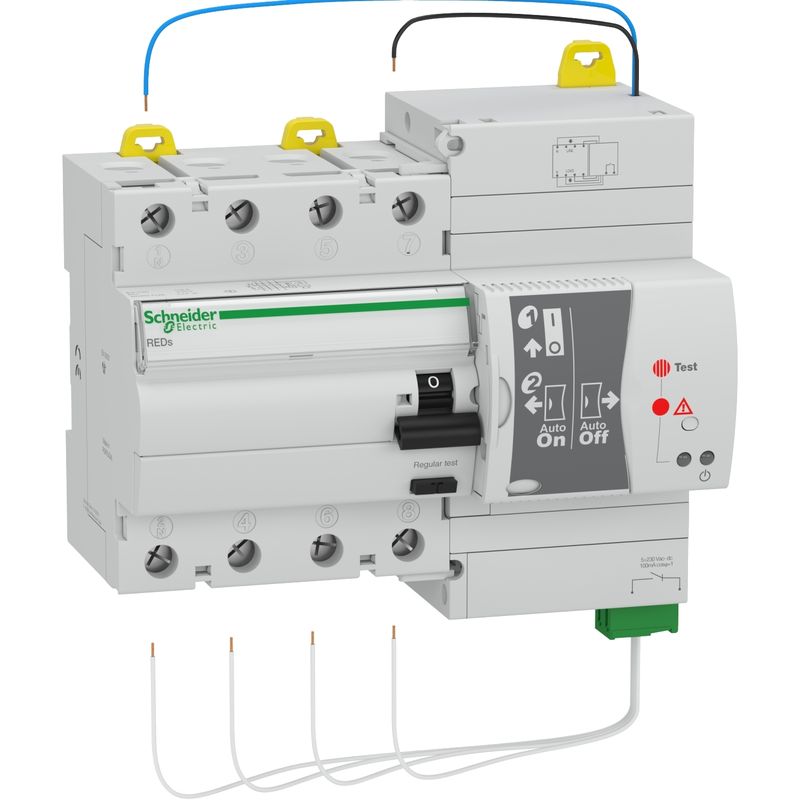

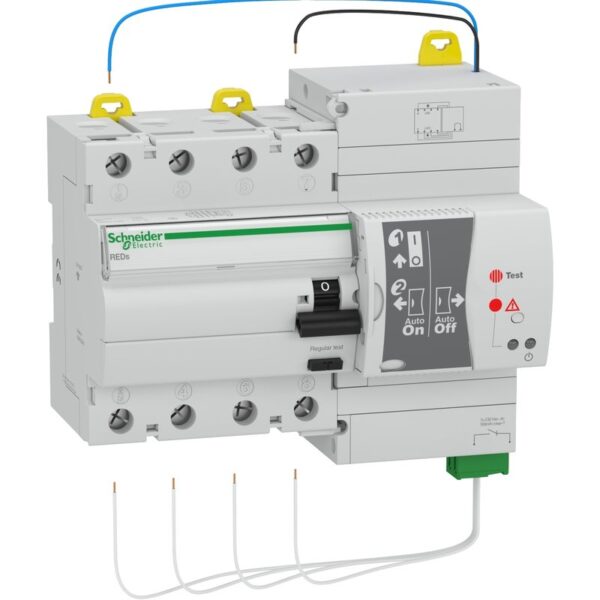

18266 | Acti9 REDs 4P 40A 30mA A – Schneider Electric

Name: 18266 - RCCB with re-closer - RED - 4 poles - 40 A - class A - 30 mA | Schneider Electric
Brand: Schneider Electric
SKU: 18266
Price: 30424.21 INR
Availability: BackOrder

SKU: 18266

Original price was: ₹41,677.00.Current price is: ₹30,424.21. Excl. GST

Dispatch By : 22 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
range of product	Acti9
Product name	Acti9 REDs
Product or component type	Residual current circuit breaker (RCCB)
Device short name	REDs
Protection type	Recloser
Poles description	4P
Neutral position	Left
Signal contacts composition	1NO or 1NC or intermittent 1 Hz
[In] rated current	40 A
Earthing system	TN-S TT
Network type	AC
Earth-leakage sensitivity	30 mA
Complementary
Device location in system	Outgoer
Network frequency	50 Hz
[Ue] rated operational voltage	400 V AC 50 Hz phase to neutral
Reset	Fault reset earth leakage
Test function	Manual at > 170 V
Earth-leakage protection time delay	Instantaneous
Earth-leakage protection class	Type A
Minimum leakage resistance	16 kOhm at operating 8 kOhm at non-operating
[Im] rated making and breaking capacity	Idm 630 A 400 V
Rated conditional short-circuit current	Inc: 10 kA – associated with NG125, 40 A Inc: 15 kA – associated with iC60H, 25 A Inc: 10 kA – associated with DPNN, 40 A Inc: 15 kA – associated with iC60L, 25 A Inc: 10 kA – associated with gG fuse, 40 A Inc: 6 kA – associated with DPN, 40 A Inc: 10 kA – associated with iC60H, 40 A Inc: 15 kA – associated with NG125, 25 A Inc: 10 kA – associated with iC60L, 40 A Inc: 10 kA – associated with iC60N, 40 A Inc: 15 kA – associated with gG fuse, 25 A
[Ui] rated insulation voltage	500 V
[Uimp] rated impulse withstand voltage	4 kV
Surge current	250 A
Control type	Toggle
Local signalling	2 LEDs Residual current device : ON/OFF indication Recloser : ON/OFF indication
Operating mode	Reclosing time: < 10 s Max nb of consecutive restart: 3 Min interval between 2 closings: 30 s Stopping restart cycle if insulation fault present: 15 min Insulation fault presence monitoring
Insulation fault diagnosis	If fault detected, diagnosis every 2 minutes
Signalling circuit voltage	AC: 5…230 V DC: 5…230 V
Signalling output current	0.6 mA min 100 mA max, cos phi =1
Mounting mode	Fixed
Mounting support	35 mm symmetrical DIN rail
9 mm pitches	14
Height	98 mm
Width	125 mm
Depth	79.5 mm
Embedding depth	73.5 mm
Net weight	0.67 kg
Mechanical durability	4000 cycles open-close
Connections – terminals	Guard tunnel terminal 35 mm² rigid Guard tunnel terminal 35 mm² flexible Guard tunnel terminal 35 mm² flexible with ferrule
Auxiliary connection terminal	Tunnel type terminal in 2.5 mm² flexible Tunnel type terminal in 2.5 mm² rigid Tunnel type terminal in 2.5 mm² flexible with ferrule
Wire stripping length	Power circuit: 12 mm Signaling: 9 mm
Tightening torque	Power circuit: 2 N.m Signaling: 0.4 N.m
Environment
Standards	EN/IEC 63024
IP degree of protection	IP20
Pollution degree	2
Electromagnetic compatibility	8/20 µs wave immunity, 250 A
Tropicalisation	2
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-5…40 °C
Ambient air temperature for storage	-20…60 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.600 cm
Package 1 Width	13.800 cm
Package 1 Length	16.800 cm
Package 1 Weight	703.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	8
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	6.457 kg
Contractual warranty
Warranty (in months)	18
