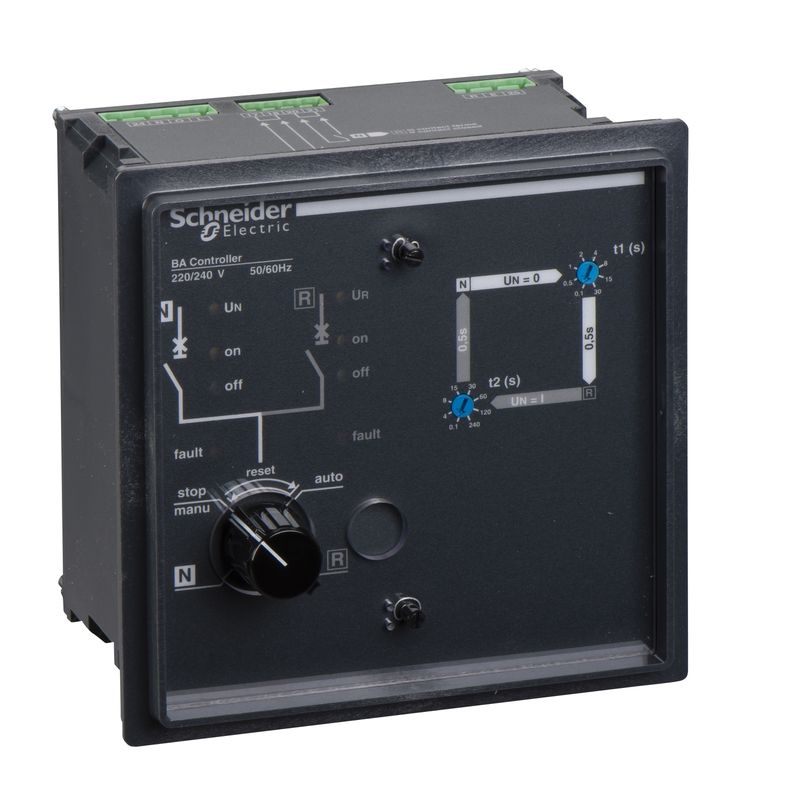

29376 | AU TO MATIC CONTROLLER BA 220 TO 240 V – Schneider Electric

Name: 29376 - Automatic controller - BA - 220..240 V | Schneider Electric
Brand: Schneider Electric
SKU: 29376
Price: 34165.80 INR
Availability: BackOrder

SKU: 29376

Original price was: ₹63,270.00.Current price is: ₹34,165.80. Excl. GST

Dispatch By : 15 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	MasterPact NW MasterPact NT Compact NS630b…1600 Compact NS100…630
Product name	BA
Device short name	BA
Product or component type	Control unit
Complementary
[Us] rated supply voltage	220…240 V AC at 50/60 Hz
Operating mode	Stop (both normal and replacement source off) Forced operation on normal source Forced operation on replacement source Automatic operation
Interlocked device	Compact NS630b…1600 MasterPact NW Compact NS100…630 MasterPact NT
Selection modes	Circuit breaker on R Circuit breaker on N
Complementary function	Additional contact: transfer to replacement source only if contact is closed Voluntary transfer to replacement source (e.g. energy management commands)
Local signalling	Fault trip Off On
Test function	By opening the P25M circuit breaker supplying the controller
Input type	Contacts customer voluntary order to transfer to source R
Output type	Contacts customer: indication of operation in automatic or stop mode
[Ith] conventional free air thermal current	8 A
[Ie] rated operational current	AC-12: 4 A AC 440 V AC-12: 5 A AC 380/415 V DC-13: 2 A 24 V
Environment
Standards	IEC 947-5-1
IP degree of protection	IP20 connectors: conforming to EN 60529 IP40 front: conforming to EN 60529 IP30 side: conforming to EN 60529
IK degree of protection	Front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15.2 cm
Package 1 Width	15.5 cm
Package 1 Length	18.0 cm
Package 1 Weight	1.27 kg
Unit Type of Package 2	S04
Number of Units in Package 2	6
Package 2 Height	30.0 cm
Package 2 Width	40.0 cm
Package 2 Length	60.0 cm
Package 2 Weight	8.23 kg
Contractual warranty
Warranty (in months)	18
