29470 | ACP AND BA 220V/240VAC 50HZ – Schneider Electric

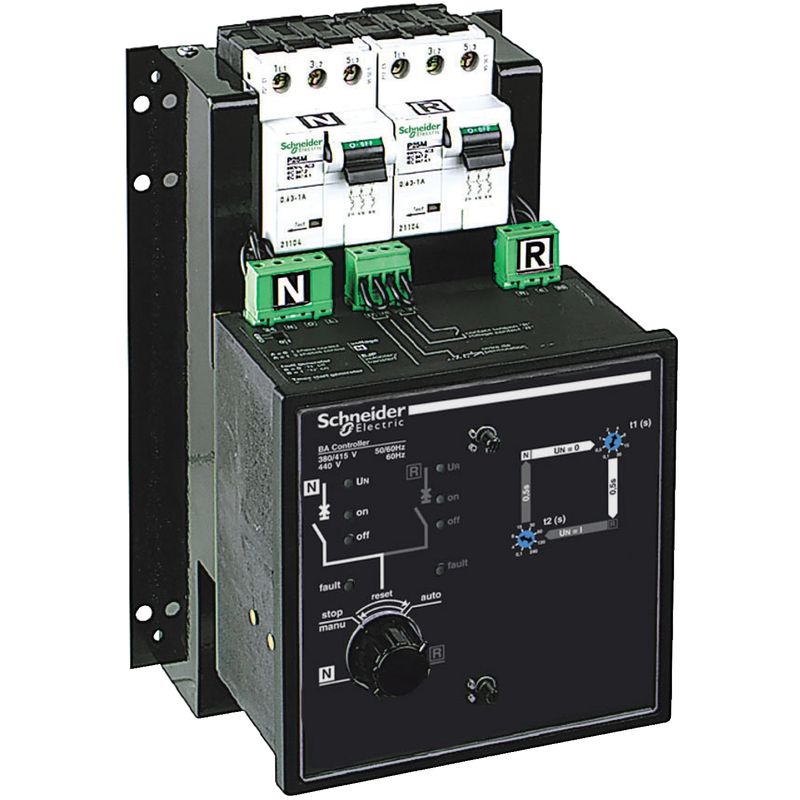

Name: 29470 - Remote controlled source changeover, Transferpact | Schneider Electric
Brand: Schneider Electric
SKU: 29470
Price: 57122.82 INR
Availability: BackOrder

SKU: 29470

Original price was: ₹105,783.00.Current price is: ₹57,122.82. Excl. GST

Dispatch By : 16 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	MasterPact NT NSX100…250 Compact NS100…630 MasterPact NW Compact NS630b…1600 NSX400…630
Product or component type	Interface and control unit
Accessory / separate part category	Interlocking accessory
Range compatibility	ComPact ComPact NS circuit breaker ComPact ComPact NSX circuit breaker Masterpact MasterPact NT circuit breaker Masterpact MasterPact NW circuit breaker
Device short name	ACP + BA
[Us] rated supply voltage	220…240 V AC at 50/60 Hz
Complementary
Operating mode	Automatic operation Forced operation on replacement source Forced operation on normal source Stop (both normal and replacement source off)
Interlocked device	NSX400…630 MasterPact NW NSX100…250 MasterPact NT Compact NS630b…1600 Compact NS100…630
Selection modes	Circuit breaker on N Circuit breaker on R
Test function	By opening the P25M circuit breaker supplying the controller
Complementary function	Additional contact: transfer to replacement source only if contact is closed Voluntary transfer to replacement source (e.g. energy management commands)
Local signalling	Off On Fault trip
Input type	Contacts customer voluntary order to transfer to source R
Output type	Contacts customer: indication of operation in automatic or stop mode
[Ith] conventional free air thermal current	8 A
[Ie] rated operational current	AC-12: 4 A AC 440 V AC-12: 5 A AC 380/415 V AC-12: 8 A AC 110 V AC-12: 8 A AC 220/240 V AC-12: 8 A AC 24 V AC-12: 8 A AC 48 V AC-13: 6 A AC 110 V AC-13: 6 A AC 220/240 V AC-13: 7 A AC 24 V AC-13: 7 A AC 48 V AC-14: 4 A AC 110 V AC-14: 4 A AC 220/240 V AC-14: 5 A AC 24 V AC-14: 5 A AC 48 V AC-15: 3 A AC 220/240 V AC-15: 4 A AC 110 V AC-15: 5 A AC 24 V AC-15: 5 A AC 48 V DC-12: 0.4 A DC 250 V DC-12: 0.6 A DC 110 V DC-12: 2 A DC 48 V DC-12: 8 A DC 24 V DC-13: 2 A AC 24 V
Product compatibility	Compact NS630b…1600 Compact NSX100…250 Compact NSX400…630
Environment
Standards	IEC 947-5-1
IP degree of protection	IP20 connectors: conforming to EN 60529 IP40 front: conforming to EN 60529 IP30 side: conforming to EN 60529
IK degree of protection	Front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	12.700 cm
Package 1 Width	16.000 cm
Package 1 Length	27.500 cm
Package 1 Weight	3.901 kg
Contractual warranty
Warranty (in months)	18
