29472 | ACP AND UA 220V/240VAC 50HZ – Schneider Electric

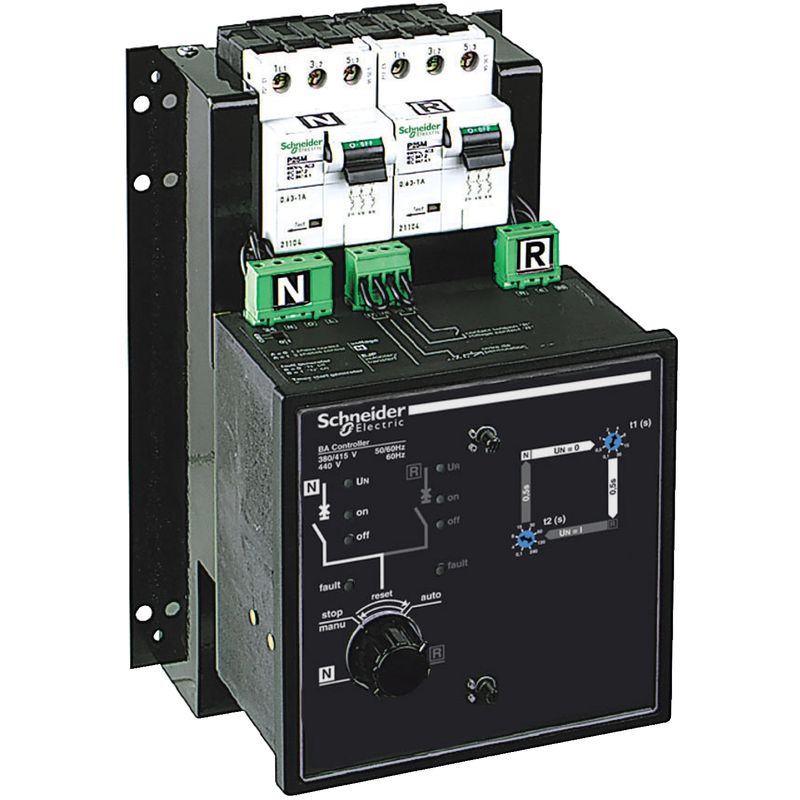

Name: 29472 - Remote control source changeover, Transferpact | Schneider Electric
Brand: Schneider Electric
SKU: 29472
Price: 57182.76 INR
Availability: BackOrder

SKU: 29472

Original price was: ₹105,894.00.Current price is: ₹57,182.76. Excl. GST

Dispatch By : 16 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range of product	NSX100…250 Compact NS100…630 MasterPact NW MasterPact NT NSX400…630 Compact NS630b…1600
Product or component type	Interface and control unit
Accessory / separate part category	Interlocking accessory
Range compatibility	ComPact ComPact NS circuit breaker ComPact ComPact NSX circuit breaker Masterpact MasterPact NT circuit breaker Masterpact MasterPact NW circuit breaker
Device short name	ACP + UA
[Us] rated supply voltage	220…240 V AC at 50/60 Hz
Complementary
Operating mode	Automatic operation Forced operation on normal source Stop (both normal and replacement source off) Forced operation on replacement source
Interlocked device	MasterPact NT NSX400…630 MasterPact NW NSX100…250 Compact NS100…630 Compact NS630b…1600
Selection modes	Circuit breaker on R Circuit breaker on N
Test function	By pressing the test button on the front of the controller
Complementary function	Voluntary transfer to replacement source (e.g. energy management commands) Forced normal source if replacement source not operational during peak-tariff Selection of type of normal source (single-phase or three-phase) Setting of maximum startup time for the replacement source Additional contact: transfer to replacement source only if contact is closed
Local signalling	On Off Fault trip
Input type	Contacts customer voluntary order to transfer to source R
Output type	Contacts customer: indication of operation in automatic or stop mode
[Ith] conventional free air thermal current	8 A
[Ie] rated operational current	AC-12: 4 A AC 440 V AC-12: 5 A AC 380/415 V AC-12: 8 A AC 110 V AC-12: 8 A AC 220/240 V AC-12: 8 A AC 24 V AC-12: 8 A AC 48 V AC-13: 6 A AC 110 V AC-13: 6 A AC 220/240 V AC-13: 7 A AC 24 V AC-13: 7 A AC 48 V AC-14: 4 A AC 110 V AC-14: 4 A AC 220/240 V AC-14: 5 A AC 24 V AC-14: 5 A AC 48 V AC-15: 3 A AC 220/240 V AC-15: 4 A AC 110 V AC-15: 5 A AC 24 V AC-15: 5 A AC 48 V DC-12: 0.4 A DC 250 V DC-12: 0.6 A DC 110 V DC-12: 2 A DC 48 V DC-12: 8 A DC 24 V DC-13: 2 A AC 24 V
Product compatibility	Compact NS630b…1600 Compact NSX100…250 Compact NSX400…630
Environment
Standards	IEC 947-5-1
IP degree of protection	IP20 connectors: conforming to EN 60529 IP40 front: conforming to EN 60529 IP30 side: conforming to EN 60529
IK degree of protection	Front: IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	27.000 cm
Package 1 Width	28.000 cm
Package 1 Length	38.000 cm
Package 1 Weight	4.155 kg
Unit Type of Package 2	P12
Number of Units in Package 2	8
Package 2 Height	45.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	48.600 kg
Contractual warranty
Warranty (in months)	18
