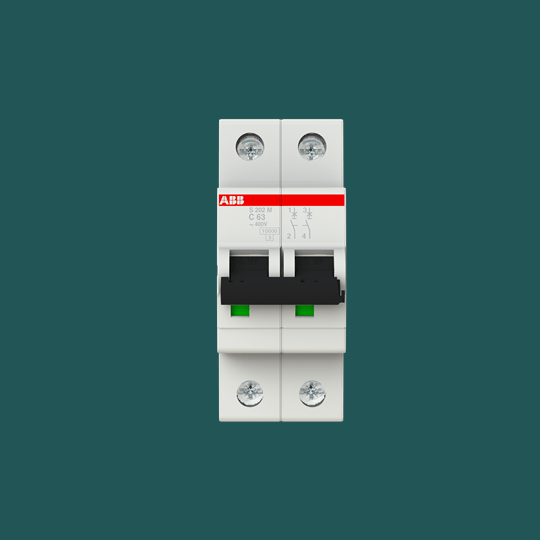

2CDS272001R0634 | Miniature Circuit Breaker – S200M – 2P – C – 63 ampere – ABB

Name: 2CDS272001R0634 | Miniature Circuit Breaker - S200M - 2P - C - 63 ampere - ABB - myelectric.in
Brand: ABB
SKU: 2CDS272001R0634
Price: 780.00 INR
Availability: InStock

SKU: 2CDS272001R0634

Original price was: ₹1,950.00.Current price is: ₹780.00. Excl. GST

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the ABB 2CDS272001R0634 miniature circuit breaker (mcb) delivers dependable performance for reliable circuit protection and isolation. Key ratings include 2 Poles. myelectric.in stocks the 2CDS272001R0634 | Miniature Circuit Breaker – S200M – 2P – C – 63 ampere for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Parameter	Value
Brand	ABB
Part Number / SKU	2CDS272001R0634
Category	Miniature Circuit Breaker (MCB)
Series / Model	S200
Poles	2 Poles
Rated Voltage	230/400V AC
Rated Frequency	50/60 Hz
Trip Mechanism	Thermal-magnetic (bimetal overload + electromagnetic short-circuit)
Mounting	35mm DIN rail (EN 60715)
Width	36 mm (2 × 18mm modules)
Electrical Endurance	≥ 20,000 operating cycles (per IEC 60898-1)
Pollution Degree	3 (per IEC 60664-1)
Standard	IEC 60898-1, IS 8828
Certifications	BIS certified, CE, KEMA tested

⚡ Key Features

2 Poles — protects a single-phase circuit, switching both live and neutral; fits standard 35mm DIN rail in distribution boards.
Thermal-magnetic trip mechanism — bimetal element trips on sustained overload, instantaneous magnetic trip on short-circuit; two independent protection functions in one compact module.
Manufactured to IS 8828 / IEC 60898-1 (residential) and IEC 60947-2 (industrial) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE, KEMA tested — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised ABB product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: Can the 2CDS272001R0634 be DIN rail mounted in any standard distribution board?

A: Yes. This ABB MCB uses the standard 35mm EN 60715 DIN rail and 17.5mm module width, making it compatible with all major brand distribution boards and enclosures. Terminal capacity accommodates both rigid and flexible conductors up to the rated cross-section.

Q: What happens when the 2CDS272001R0634 trips — how do I identify and reset it?

A: When the 2CDS272001R0634 trips on fault, the handle moves to a midway position (between ON and OFF), distinctly visible from a distance. To reset: (1) identify and rectify the fault, (2) push the handle fully to OFF, (3) then switch back to ON. Never force-reset without investigating the fault cause.

Q: Is the 2CDS272001R0634 suitable for both single-phase and three-phase systems?

A: The 2CDS272001R0634 is a 2 poles device for single-phase circuits. For three-phase circuits, use a 3-pole or 4-pole MCB of the same series.

Q: Which ABB accessories are compatible with the 2CDS272001R0634?

A: The ABB S200 series supports snap-on accessories including auxiliary contacts (OF), alarm contacts (SD), shunt trip coils (MX), undervoltage releases (MN), and comb busbars. Accessories are series-specific — always verify compatibility using the ABB product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the 2CDS272001R0634.
