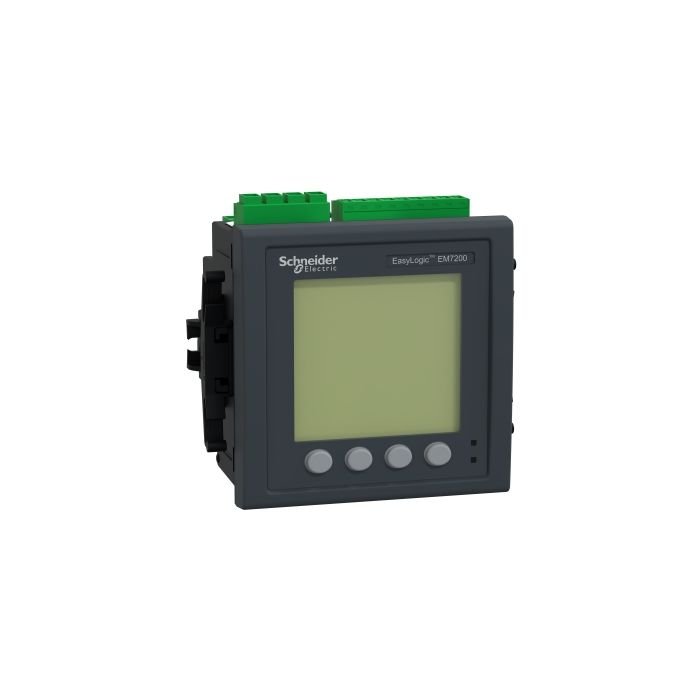

The Schneider Electric 30002975 is a panel meter from the EasyLogic range, engineered for accurate electrical measurement and monitoring in demanding Indian and international installations. Key ratings include 1 A, IP51 front:. Buy the Grey Energy Meter With Class 1.0, 0.5 online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	30002975
Category	Panel Meter
Main
Range	EasyLogic
Product name	EasyLogic EM7200
Device short name	EM7290
Product or component type	Smart demand controller
Complementary
Power quality analysis	total harmonic distortion
Type of measurement	Measurement cycle as true rms value Total current harmonic distortion THD (I) per phase Total voltage harmonic distortion THD (U) per phase Individual harmonics up to the 15th per phase Phase angle
Metering type	Active, reactive, apparent energy (signed, four quadrant) Demand power P, Q, S Demand current I1, I2, I3 Unbalance current Unbalance voltage
[Us] rated supply voltage	90…277 V AC 120…300 V DC
Network frequency	50 Hz 60 Hz
[In] rated current	1 A 5 A
type of network	3P 3P + N
Maximum power consumption in VA	10 VA at 240 V on power supply 0.2 VA current and voltage
Maximum power consumption in W	4.5 W at 300 V (maximum)
Display type	Graphic display terminal
Display colour	Monochrome
Display resolution	128 x 128 pixels
Messages display capacity	4 lines
Communication of data	Net energy
Tamperproof of settings	Protected by access code
Measurement current	0.010…1.2 A 0.050…6 A
Signal	Current3 x Voltage4 x
Measurement voltage	110…415 V AC nominal 90…480 V AC without PTs
Frequency measurement range	47.5…63 Hz
Measurement accuracy	Voltage 0.5 % Current 0.5 % Active power 0.2 % Apparent power 0.2 % Power factor 0.2 % Reactive power 2 %
Accuracy class	Class 0.2 active power conforming to IEC 62052-11 Class 0.2 active power conforming to IEC 62053-22 Class 2 reactive energy conforming to IEC 62053-23
Number of outputs	3 form C relay
Output voltage	22…26 V DC@8 mA
Communication port protocol	Modbus RTU
Communication port support	RS485
Measurement category	Category III
Electrical insulation class	Double insulation
Product certifications	UL CUL listed C-Tick conforming to IEC 61010-1 C-Tick conforming to UL 61010-1 CE
Width	96 mm
Depth	Inside : 72 mm
Height	96 mm
Environment
Electromagnetic compatibility	Electrostatic discharge conforming to IEC 61000-4-2 Immunity to radiated fields conforming to IEC 61000-4-3 Immunity to fast transients conforming to IEC 61000-4-4 Surge withstand conforming to IEC 61000-4-5 Immunity tests-conducted disturbances conforming to IEC 61000-4-6 Immunity to magnetic fields conforming to IEC 61000-4-8 Immunity to voltage dips conforming to IEC 61000-4-11 Radiated emission A conforming to CISPR 11 Conducted emission A conforming to CISPR 11
IP degree of protection	IP51 front: IP30 rear:
Relative humidity	0…95 %
Pollution degree	2
Ambient air temperature for operation	-10…60 °C
Ambient air temperature for storage	-25…70 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.0 cm
Package 1 Width	12.5 cm
Package 1 Length	10.9 cm
Package 1 Weight	500.0 g
Contractual warranty
Warranty (in months)	18
