31102 | NON-AUTOMATIC SWITCH INTERPACT INS250-20 - Schneider Electric - Image 1
Click to enlarge

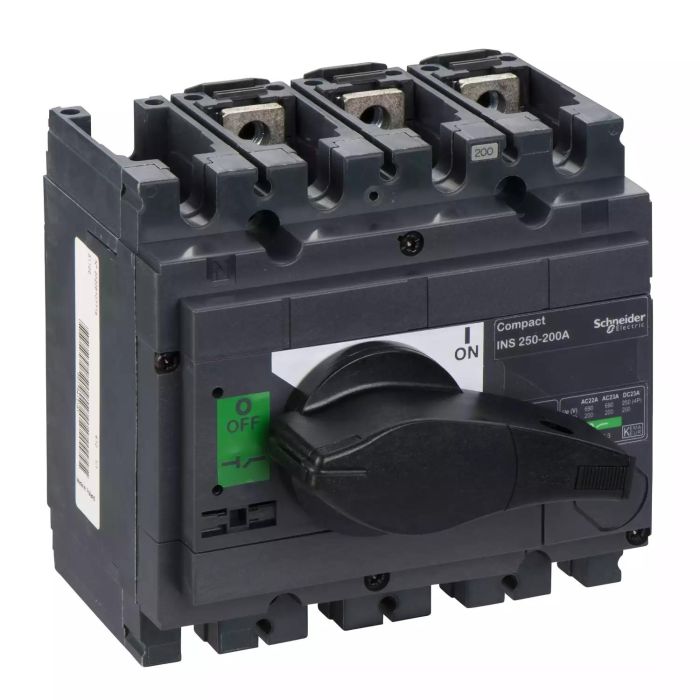

31102 | NON-AUTOMATIC SWITCH INTERPACT INS250-20 – Schneider Electric

SKU: 31102

Original price was: ₹32,020.00.Current price is: ₹27,537.20. Excl. GST

Out of stock

Out of stock

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

29450 standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact Schneider Electric 29450 main image
-48%

29450 | standard auxiliary contact, circuit breaker status OF-SD-SDE-SDV, 1 single contact – Schneider Electric

Schneider Electric
Original price was: ₹1,640.00.Current price is: ₹852.80. Excl. GST
Add to basket
SKU: 29450
-14%

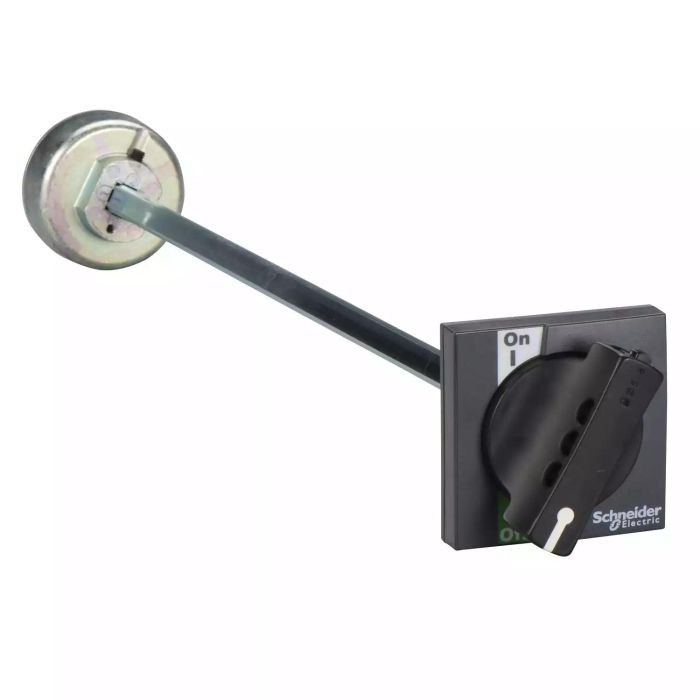

LV431050 | EXTENDED FRONT ROT. HANDLE (INS250 / INV – Schneider Electric

Schneider Electric
Original price was: ₹9,480.00.Current price is: ₹8,152.80. Excl. GST
Add to basket
SKU: LV431050
-46%

LV429516 | 1 4P SHORT TERMINAL SHIELD – Schneider Electric

Schneider Electric
Original price was: ₹1,250.00.Current price is: ₹675.00. Excl. GST
Add to basket
SKU: LV429516
LV431563 connection accessories, Compact NSX 100 160 250, EasyPact CVS 100 160 250, spreaders, 45 mm pitch, flat connection,
-48%

LV431563 | connection accessories, Compact NSX 100/160/250, EasyPact CVS 100/160/250, spreaders, 45 mm pitch, flat connection, 3 poles – Schneider Electric

Schneider Electric
Original price was: ₹1,230.00.Current price is: ₹639.60. Excl. GST
Add to basket
SKU: LV431563
-46%

LV429518 | 1 4P LONG TERMINAL SHIELD – Schneider Electric

Schneider Electric
Original price was: ₹1,770.00.Current price is: ₹955.80. Excl. GST
Add to basket
SKU: LV429518
LV429329 interphase barriers, Compact NSX 100 160 250, EasyPact CVS 100 160 250, set of 6 parts Schneider Electric lv429329 1
-48%

LV429329 | interphase barriers, Compact NSX 100/160/250, EasyPact CVS 100/160/250, set of 6 parts – Schneider Electric

Schneider Electric
Original price was: ₹740.00.Current price is: ₹384.80. Excl. GST
Add to basket
SKU: LV429329

    The Schneider Electric 31102 is a switch from the ComPact range, engineered for everyday wiring and control in demanding Indian and international installations. Key ratings include AC-22A: 200 A AC 50/60 Hz 220/240 V, 125 V DC, 3P. Buy the NON-AUTOMATIC SWITCH INTERPACT INS250-20 online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKU31102
    CategorySwitch
    Main
    RangeComPact
    Product or component typeSwitch disconnector
    Product nameComPacT INS
    Poles description3P
    Network typeDC
    AC
    Network frequency50/60 Hz
    [Ie] rated operational currentAC-22A: 200 A AC 50/60 Hz 220/240 V
    AC-22A: 200 A AC 50/60 Hz 380/415 V
    AC-22A: 200 A AC 50/60 Hz 440/480 V
    AC-22A: 200 A AC 50/60 Hz 480 V NEMA
    AC-22A: 200 A AC 50/60 Hz 500/525 V
    AC-22A: 200 A AC 50/60 Hz 660/690 V
    AC-23A: 200 A AC 50/60 Hz 220/240 V
    AC-23A: 200 A AC 50/60 Hz 380/415 V
    AC-23A: 200 A AC 50/60 Hz 440/480 V
    AC-23A: 200 A AC 50/60 Hz 480 V NEMA
    AC-23A: 200 A AC 50/60 Hz 500/525 V
    AC-23A: 200 A AC 50/60 Hz 660/690 V
    DC-22A: 200 A DC 125 V 2 poles in series
    DC-23A: 200 A DC 125 V 2 poles in series
    [Ui] rated insulation voltage800 V AC 50/60 Hz
    [Ith] conventional free air thermal current200 A at 60 °C
    [Icm] rated short-circuit making capacity30 kA switch-disconnector alone 690 V AC at 50/60 Hz
    330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
    [Ue] rated operational voltage125 V DC
    690 V AC 50/60 Hz
    Suitability for isolationYes
    Contact position indicatorYes
    Visible breakNo
    Pollution degree3
    Complementary
    Control typeDirect front rotary handle
    Handle colourBlack
    Mounting modeFixed
    Mounting supportPlate
    Rail
    Upside connectionFront
    Downside connectionFront
    Maximum powerAC-23: 110 kW at 440 V AC 50/60 Hz
    AC-23: 110 kW at 480 V AC 50/60 Hz (NEMA)
    AC-23: 132 kW at 500/525 V AC 50/60 Hz
    AC-23: 160 kW at 660/690 V AC 50/60 Hz
    AC-23: 55 kW at 220/240 V AC 50/60 Hz
    AC-23: 55 kW at 230 V AC 50/60 Hz (NEMA)
    AC-23: 90 kW at 380/415 V AC 50/60 Hz
    Rated dutyUninterrupted
    [Icw] rated short-time withstand current1.8 kA during 30 s conforming to IEC 60947-3
    2.2 kA during 20 s conforming to IEC 60947-3
    4.9 kA during 3 s conforming to IEC 60947-3
    8.5 kA during 1 s conforming to IEC 60947-3
    Mechanical durability15000 cycles
    Electrical durabilityAC-22A: 1500 cycles 440 V AC 50/60 Hz
    AC-22A: 1500 cycles 500 V AC 50/60 Hz
    AC-22A: 1500 cycles 690 V AC 50/60 Hz
    AC-23A: 1500 cycles 440 V AC 50/60 Hz
    AC-23A: 1500 cycles 500 V AC 50/60 Hz
    AC-23A: 1500 cycles 690 V AC 50/60 Hz
    DC-22A: 1500 cycles 125 V DC 2 poles in series
    DC-23A: 1500 cycles 125 V DC 2 poles in series
    Connection pitch35 mm
    Height136 mm
    Width140 mm
    Depth96 mm
    Product weight2 kg
    Environment
    StandardsIEC 60947-1
    IEC 60947-3
    Product certificationsCCC
    KEMA-KEUR
    IP degree of protectionIP40 conforming to IEC 60529
    IK degree of protectionIK07 conforming to EN 50102
    Ambient air temperature for operation-25…70 °C
    Ambient air temperature for storage-50…85 °C
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height16.500 cm
    Package 1 Width13.500 cm
    Package 1 Length16.000 cm
    Package 1 Weight2.219 kg
    Unit Type of Package 2S04
    Number of Units in Package 29
    Package 2 Height30.000 cm
    Package 2 Width40.000 cm
    Package 2 Length60.000 cm
    Package 2 Weight20.673 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LV43105031057LV431563LV429516LV429518LV429329312102945029452
