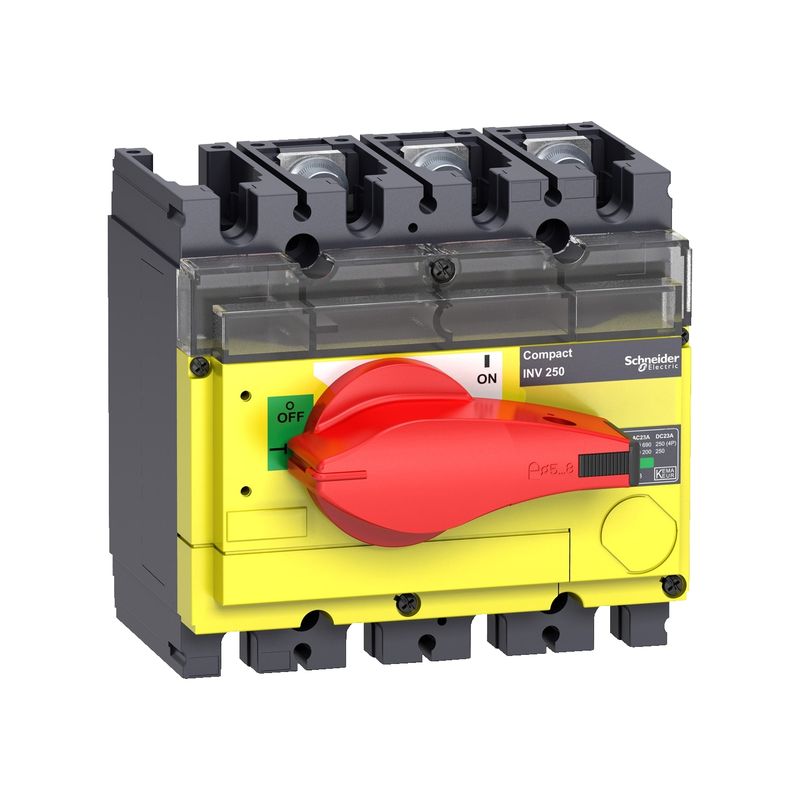

31186 | INV250 3P 250 A R/Y - VISIBLE BREAK SWIT - Schneider Electric - Image 1
Click to enlarge

    31186 | INV250 3P 250 A R/Y – VISIBLE BREAK SWIT – Schneider Electric

    SKU: 31186

    Original price was: ₹32,580.00.Current price is: ₹28,018.80. Excl. GST

    Dispatch By : 8 Weeks

    Dispatch By : 8 Weeks

    10 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    RangeComPact
    Product nameCompact INV
    Product or component typeSwitch disconnector
    Poles description3P
    Network typeAC
    DC
    Network frequency50/60 Hz
    Handle colourRed
    [Ie] rated operational currentAC-21A: 250 A AC 50/60 Hz 220/240 V
    AC-21A: 250 A AC 50/60 Hz 380/415 V
    AC-21A: 250 A AC 50/60 Hz 440/480 V
    AC-21A: 250 A AC 50/60 Hz 480 V NEMA
    AC-21A: 250 A AC 50/60 Hz 500/525 V
    AC-21A: 250 A AC 50/60 Hz 660/690 V
    AC-22A: 250 A AC 50/60 Hz 220/240 V
    AC-22A: 250 A AC 50/60 Hz 380/415 V
    AC-22A: 250 A AC 50/60 Hz 440/480 V
    AC-22A: 250 A AC 50/60 Hz 480 V NEMA
    AC-22A: 250 A AC 50/60 Hz 500/525 V
    AC-22A: 250 A AC 50/60 Hz 660/690 V
    AC-23A: 250 A AC 50/60 Hz 220/240 V
    AC-23A: 250 A AC 50/60 Hz 380/415 V
    AC-23A: 250 A AC 50/60 Hz 440/480 V
    AC-23A: 250 A AC 50/60 Hz 480 V NEMA
    DC-21A: 250 A DC 125 V 2 poles in series
    DC-22A: 250 A DC 125 V 2 poles in series
    DC-21A: 250 A DC 250 V 4 poles in series
    DC-22A: 250 A DC 250 V 4 poles in series
    [Ui] rated insulation voltage800 V AC 50/60 Hz
    [Uimp] rated impulse withstand voltage8 kV
    [Ith] conventional free air thermal current250 A at 60 °C
    [Icm] rated short-circuit making capacity30 kA switch-disconnector alone 690 V AC at 50/60 Hz
    330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
    [Ue] rated operational voltage250 V DC
    690 V AC 50/60 Hz
    Suitability for isolationYes
    Contact position indicatorYes
    Visible breakYes
    Pollution degree3
    Complementary
    Control typeRotary handle
    Mounting modeFixed
    Mounting supportRail
    Plate
    Upside connectionFront
    Downside connectionFront
    Maximum powerAC-23: 132 kW at 500/525 V AC 50/60 Hz
    AC-23: 160 kW at 660/690 V AC 50/60 Hz
    AC-23: 132 kW at 380/415 V AC 50/60 Hz
    AC-23: 150 kW at 440 V AC 50/60 Hz
    AC-23: 150 kW at 480 V AC 50/60 Hz (NEMA)
    AC-23: 75 kW at 220/240 V AC 50/60 Hz
    AC-23: 75 kW at 230 V AC 50/60 Hz (NEMA)
    Rated dutyUninterrupted
    [Icw] rated short-time withstand current1.8 kA during 30 s conforming to IEC 60947-3
    2.2 kA during 20 s conforming to IEC 60947-3
    4.9 kA during 3 s conforming to IEC 60947-3
    8.5 kA during 1 s conforming to IEC 60947-3
    Mechanical durability15000 cycles
    Electrical durabilityAC-22A: 1500 cycles 440 V AC 50/60 Hz
    AC-22A: 1500 cycles 500 V AC 50/60 Hz
    AC-22A: 1500 cycles 690 V AC 50/60 Hz
    AC-23A: 1500 cycles 440 V AC 50/60 Hz
    AC-23A: 1500 cycles 500 V AC 50/60 Hz
    AC-23A: 1500 cycles 690 V AC 50/60 Hz
    DC-22A: 1500 cycles 125 V DC
    DC-23A: 1500 cycles 125 V DC
    Connection pitch45 mm
    Height136 mm
    Width140 mm
    Depth96 mm
    Net weight2 kg
    Environment
    StandardsIEC 60947-1
    IEC 60947-3
    Product certificationsKEMA-KEUR
    CCC
    IP degree of protectionIP40 conforming to IEC 60529
    IK degree of protectionIK07 conforming to EN 50102
    Ambient air temperature for operation-25…70 °C
    Ambient air temperature for storage-50…85 °C
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height17.000 cm
    Package 1 Width16.200 cm
    Package 1 Length13.700 cm
    Package 1 Weight2.207 kg
    Unit Type of Package 2S04
    Number of Units in Package 28
    Package 2 Height30.000 cm
    Package 2 Width40.000 cm
    Package 2 Length60.000 cm
    Package 2 Weight18.557 kg
    Unit Type of Package 3P12
    Number of Units in Package 332
    Package 3 Height45.000 cm
    Package 3 Width80.000 cm
    Package 3 Length120.000 cm
    Package 3 Weight86.228 kg
    Contractual warranty
    Warranty (in months)18
