3240106000 | AC solid-core, 0.25-200A, at 30 VAC/DC - Schneider Electric - Image 1

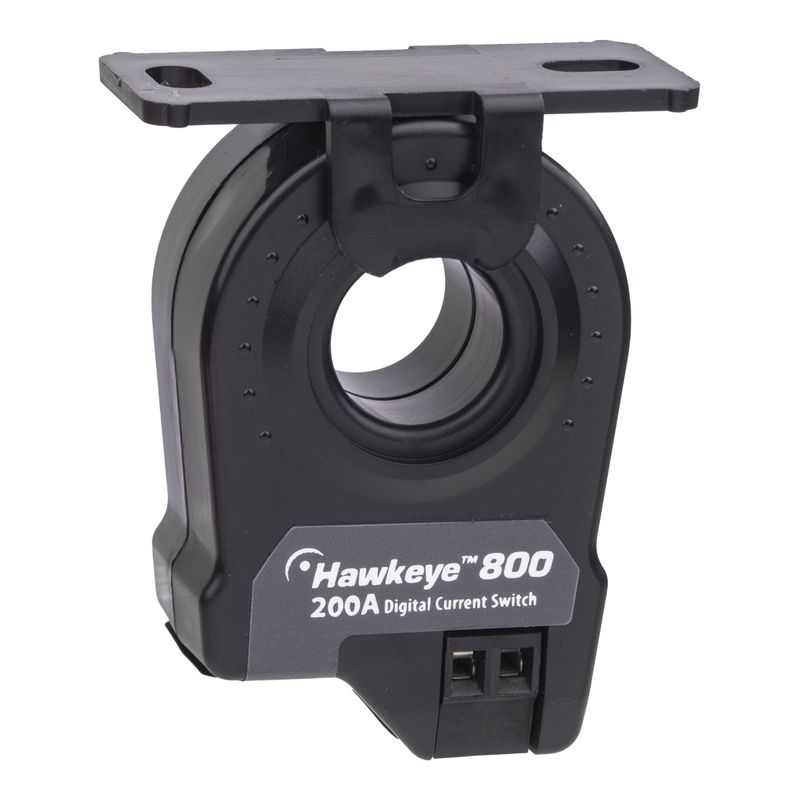

    3240106000 | AC solid-core, 0.25-200A, at 30 VAC/DC – Schneider Electric

    SKU: 3240106000

    Original price was: ₹8,952.00.Current price is: ₹5,192.16. Excl. GST

    Dispatch By : 4 Weeks

    Dispatch By : 4 Weeks

    13 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Range of productHX00 Series
    Product or component typeSensor
    Sensor modelH800-S6
    Type of measurementAC current
    Device applicationBuilding automation systems
    Current measurement range0.25…200 A
    Sensor typeCurrent switch, AC
    AWG gauge24 AWG…14 AWG
    Network frequency50…60 Hz
    Opening diameter18 mm
    Mounting supportSolid core housing
    Relative humidity10…90 % RH, non-condensing
    Output current1 A at 30 V AC/DC
    Output typeSwitch output
    Product certificationsUL
    CE
    SetpointYes
    Targeted regionEurope
    Asia Pacific.
    Environment
    Ambient air temperature for operation-40…50 °C
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height9.2 cm
    Package 1 Width14.5 cm
    Package 1 Length4.4 cm
    Package 1 Weight100 g
    Contractual warranty
    Warranty (in months)18
