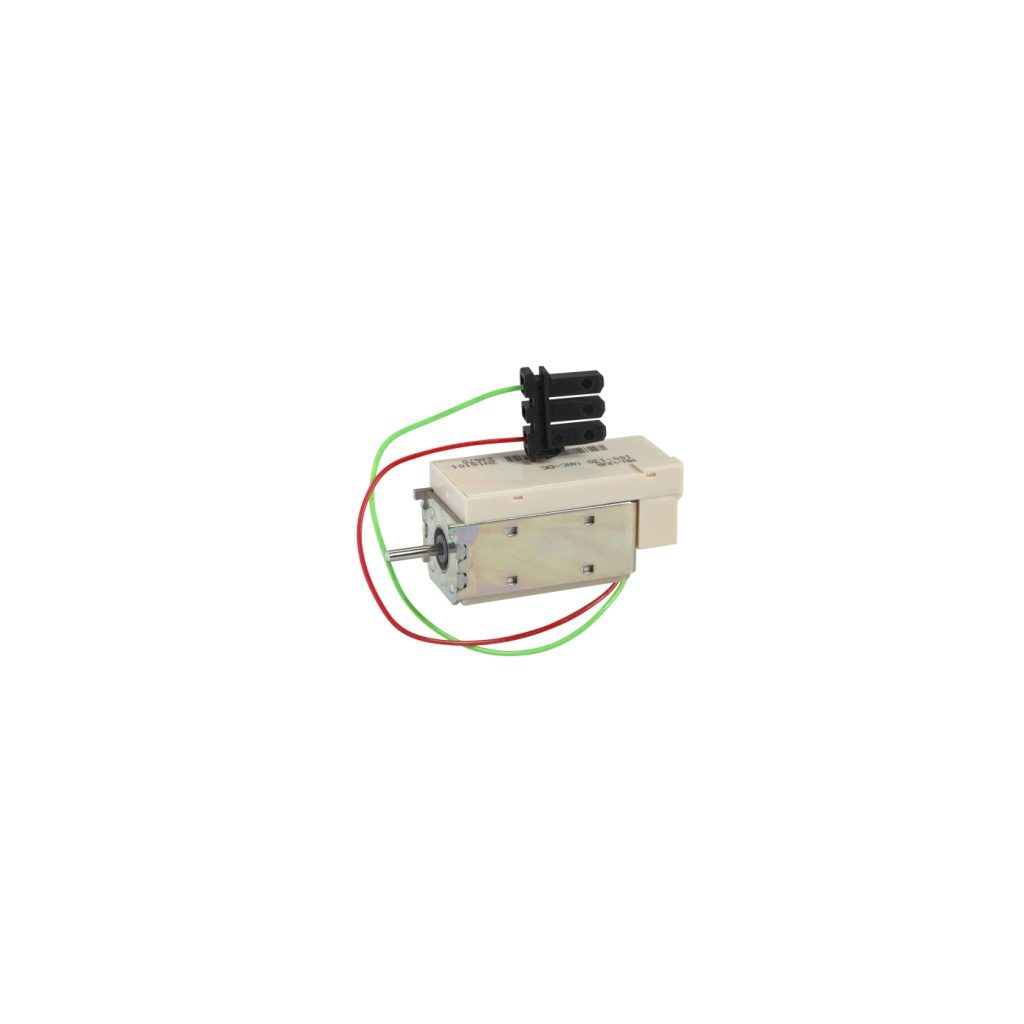

33671 | MN undervoltage release, Compact NS 630b to 3200, 200 VDC to 250 VDC, 200 VAC to 250 VAC 50/60 Hz – Schneider Electric
Original price was: ₹14,430.00.₹7,647.90Current price is: ₹7,647.90. Excl. GST
SKU:
33671
-47%
33662 | MX shunt trip release, Compact NS 630b to Compact NS 3200, 200 VDC to 250 VDC, 200 VAC to 250 VAC 50/60 Hz – Schneider Electric
Original price was: ₹14,430.00.₹7,647.90Current price is: ₹7,647.90. Excl. GST
SKU:
33662

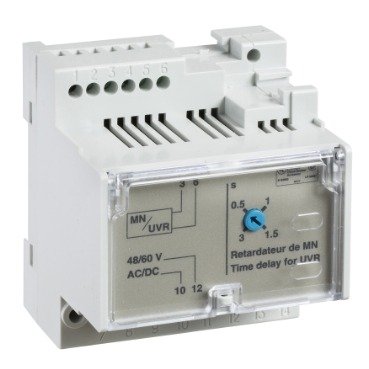

Looking for the ADJUSTABLE DELAY UNIT FOR MN? This genuine Schneider Electric electrical component is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Order part number 33682 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | 33682 |
| Category | Electrical Component |
| Main | |
| Device short name | MN delay unit |
| Product or component type | Time delay relay |
| Device application | Control |
| Range compatibility | Masterpact MasterPact NT Masterpact MasterPact NW ComPact ComPact NSX ComPact ComPact NS630b…1600 ComPact ComPact NS1600b…3200 PowerPact PowerPact Multistandard ComPact ComPact NSXm ComPact ComPact NSX DC Masterpact MasterPact NW UL 489 Masterpact MasterPact NT UL 489 Masterpact MasterPact NW DC |
| Voltage release type | Undervoltage release |
| [Uc] control circuit voltage | 200…250 V AC 50/60 Hz 200…250 V DC |
| Complementary | |
| Impulse duration | 200 ms |
| Time delay range | 0.5…3 s |
| Threshold tripping voltage | 0.35…0.7 Un open 0.85 Un close |
| Supply holding power | 4.5 VA |
| Supply inrush power | 200 VA |
| Mounting mode | External mounting |
| Response time | 0.5 s 1 s 1.5 s 3 s |
| Accessory / separate part category | Spare part for Compact NS630b…1600 Spare part for Compact NS1600b…3200 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 174.400 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.678 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
🔗 Compatible Products & Accessories
The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:
LV426815LV429414336623367133813473833382248504
