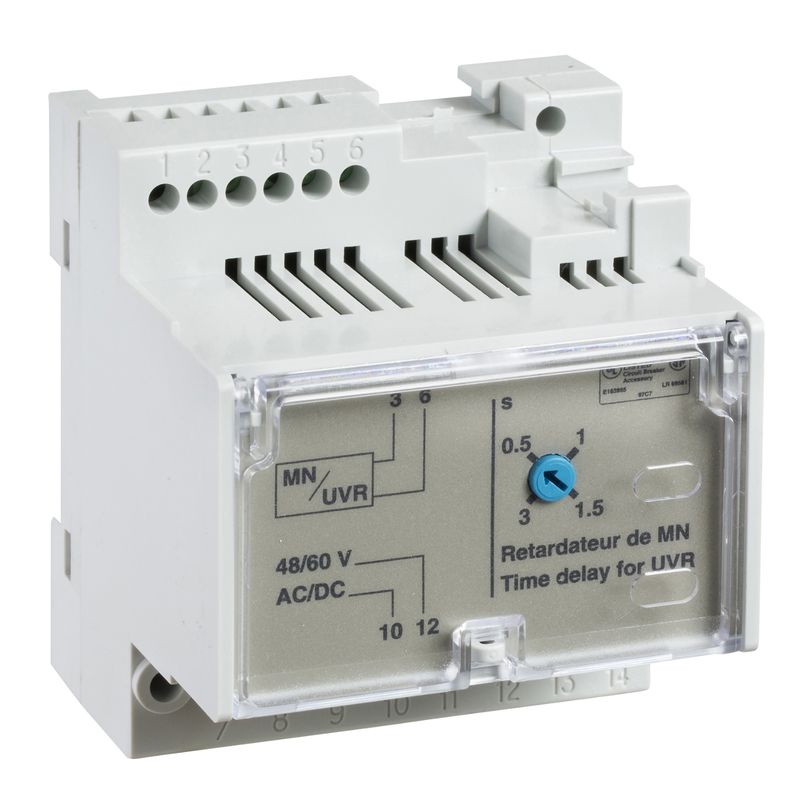

33683 | ADJUSTABLE DELAY UNIT FOR MN - Schneider Electric - Image 1

    33683 | ADJUSTABLE DELAY UNIT FOR MN – Schneider Electric

    SKU: 33683

    Original price was: ₹19,480.00.Current price is: ₹10,324.40. Excl. GST

    Dispatch By : 2 Weeks

    Dispatch By : 2 Weeks

    12 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Device short nameMN delay unit
    Product or component typeTime delay relay
    Device applicationControl
    Range compatibilityMasterpact MasterPact NT
    Masterpact MasterPact NW
    ComPact ComPact NS630b…1600
    ComPact ComPact NS1600b…3200
    Masterpact MasterPact NW UL 489
    Masterpact MasterPact NT UL 489
    Masterpact MasterPact NW DC
    Voltage release typeUndervoltage release
    [Uc] control circuit voltage380…480 V AC 50/60 Hz
    380…480 V DC
    Complementary
    Impulse duration200 ms
    Time delay range0.5…3 s
    Threshold tripping voltage0.35…0.7 Un open
    0.85 Un close
    Supply holding power4.5 VA
    Supply inrush power200 VA
    Mounting modeExternal mounting
    Response time0.5 s
    1 s
    1.5 s
    3 s
    Accessory / separate part categorySpare part for Compact NS630b…1600
    Spare part for Compact NS1600b…3200
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height8.500 cm
    Package 1 Width8.000 cm
    Package 1 Length9.000 cm
    Package 1 Weight178.200 g
    Unit Type of Package 2S03
    Number of Units in Package 218
    Package 2 Height30.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight3.626 kg
    Contractual warranty
    Warranty (in months)18
