33751 | CONNECTED POSITION CONTACT - Schneider Electric - Image 1

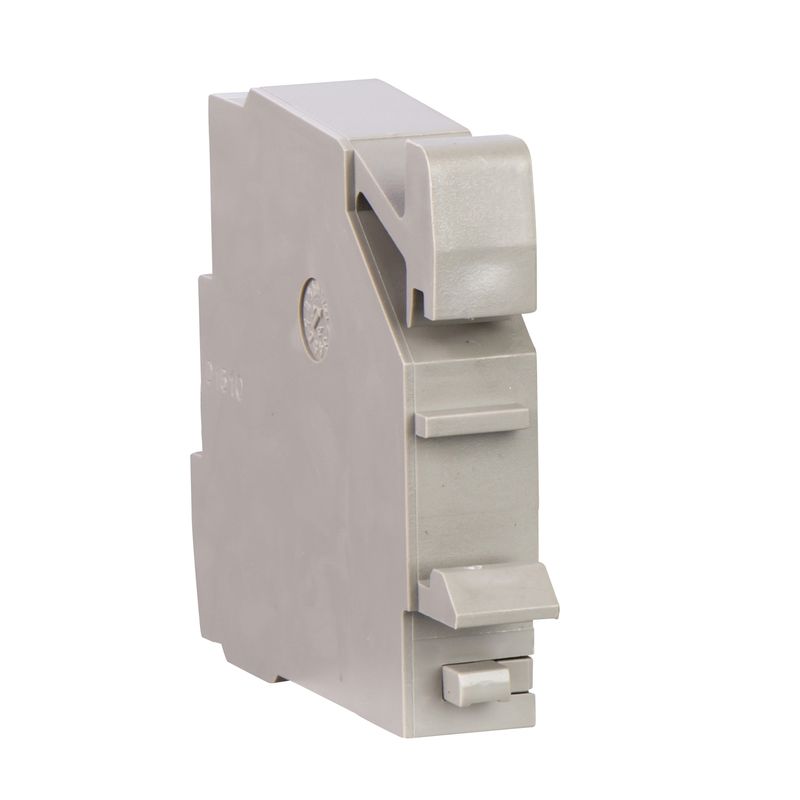

    33751 | CONNECTED POSITION CONTACT – Schneider Electric

    SKU: 33751

    Original price was: ₹3,280.00.Current price is: ₹1,738.40. Excl. GST

    Dispatch By : 1 Weeks

    Dispatch By : 1 Weeks

    20 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Device short nameconnected position contact
    Product or component typeAuxiliary contact
    Device applicationMonitoring
    Range compatibilityMasterpact MasterPact NT
    Masterpact MasterPact NW
    Masterpact MasterPact NW DC
    ComPact ComPact NS630b…1600
    Signal contacts composition1 NO/NC
    Complementary
    Auxiliary contacts typeStandard
    Auxiliary contacts operationConnected position
    Mounting modeDrawout
    [Ie] rated operational currentAC-12: 6 A at 690 V AC 50/60 Hz
    AC-12: 8 A at 240 V AC 50/60 Hz
    AC-12: 8 A at 380 V AC 50/60 Hz
    AC-12: 8 A at 480 V AC 50/60 Hz
    DC-12: 0.8 A at 125 V DC
    DC-12: 2.5 A at 24/48 V DC
    DC-12: 0.3 A at 150 V DC
    Minimum load100 mA at 24 V
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height1.000 cm
    Package 1 Width5.000 cm
    Package 1 Length5.000 cm
    Package 1 Weight19.000 g
    Unit Type of Package 2S01
    Number of Units in Package 280
    Package 2 Height15.000 cm
    Package 2 Width15.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight1.720 kg
    Unit Type of Package 3P06
    Number of Units in Package 32560
    Package 3 Height75.000 cm
    Package 3 Width60.000 cm
    Package 3 Length80.000 cm
    Package 3 Weight63.040 kg
    Contractual warranty
    Warranty (in months)18
