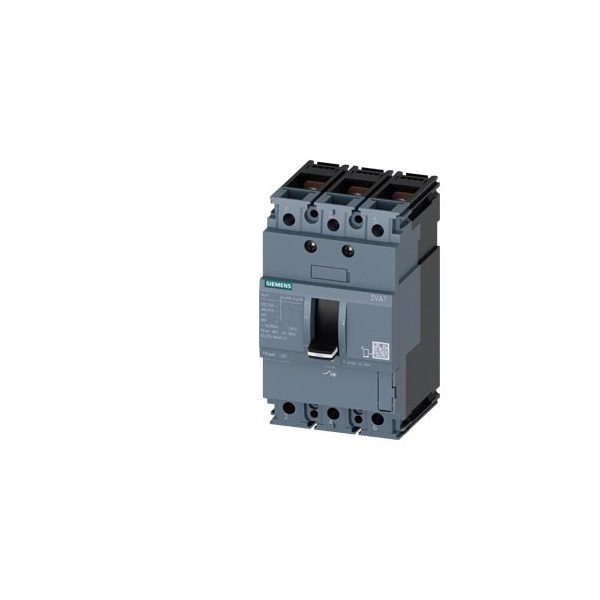

3VA1010-2ED32-0AA0 | MCCB 100 A, 3 Pole, 16 kA, Fixed O/L & Fixed S/C Settings, Thermal Magnetic Trip Unit (FTFM) – Siemens
The 3VA1010-2ED32-0AA0 is a high-performance Molded Case Circuit Breaker (MCCB) from Siemens, designed for reliable and efficient protection of electrical circuits. This MCCB is part of the 3VA series, known for its robust construction and advanced features.
Key Features:
- Rated Current: 100 A
- Number of Poles: 3 Pole
- Breaking Capacity: 16 kA
- Trip Unit Type: Thermal Magnetic Trip Unit (FTFM)
- Overload Protection: Fixed Settings
- Short-Circuit Protection: Fixed Settings
- Mounting Type: Fixed
- Standards Compliance: IEC 60947-2
Applications:
The 3VA1010-2ED32-0AA0 MCCB is suitable for a wide range of applications, including:
- Industrial control panels
- Commercial buildings
- Power distribution systems
- Motor protection circuits
- HVAC systems
Technical Specifications:
| Parameter | Value |
|---|---|
| Rated Operational Voltage (Ue) | 400 V AC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Frequency | 50/60 Hz |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Terminal Type | Screw Clamp |
| Mounting Position | Any |
Advantages:
- High breaking capacity ensures reliable protection against short circuits.
- Fixed thermal and magnetic trip settings provide consistent and predictable performance.
- Compact design allows for easy installation in tight spaces.
- Durable construction ensures long service life even in harsh environments.
- Compliance with international standards guarantees safety and reliability.
Additional Information:
For more detailed technical information, installation guidelines, and safety instructions, please refer to the official Siemens product documentation or contact Siemens customer support.
