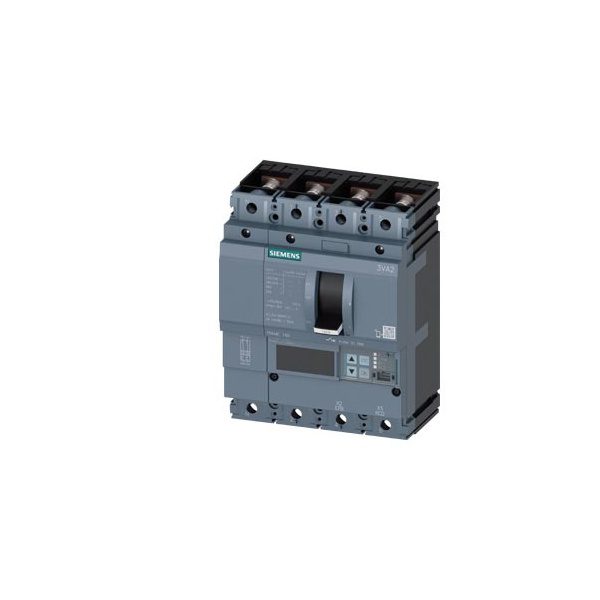

3VA2116-5JQ42-0AA0 | MCCB 160 A, 4 Pole, 55 kA, O/L, S/C & E/F, Microprocessor Based Trip Unit ETU560 LSIG – Siemens

The 3VA2116-5JQ42-0AA0 is a high-performance Molded Case Circuit Breaker (MCCB) manufactured by Siemens. Designed for industrial and commercial applications, this MCCB offers reliable protection against overloads, short circuits, and earth faults. It features a microprocessor-based trip unit, the ETU560 LSIG, which provides precise and adjustable protection settings.

Key Features:

• Rated Current: 160 A
• Number of Poles: 4 Pole
• Breaking Capacity: 55 kA
• Protection Functions: Overload (O/L), Short Circuit (S/C), and Earth Fault (E/F)
• Trip Unit: Microprocessor-based ETU560 LSIG
• Brand: Siemens

Applications:

This MCCB is suitable for a wide range of applications, including:

• Industrial power distribution systems
• Commercial buildings
• Data centers
• Renewable energy systems

Technical Specifications:

• Rated Voltage: Up to 690 V AC
• Frequency: 50/60 Hz
• Mounting: Fixed or Plug-in
• Standards Compliance: IEC 60947-2, IEC 60947-4-1

Advantages:

• High breaking capacity ensures reliable protection in demanding environments.
• Microprocessor-based trip unit allows for precise and customizable protection settings.
• Compact design saves space in electrical panels.
• Easy to install and maintain.
