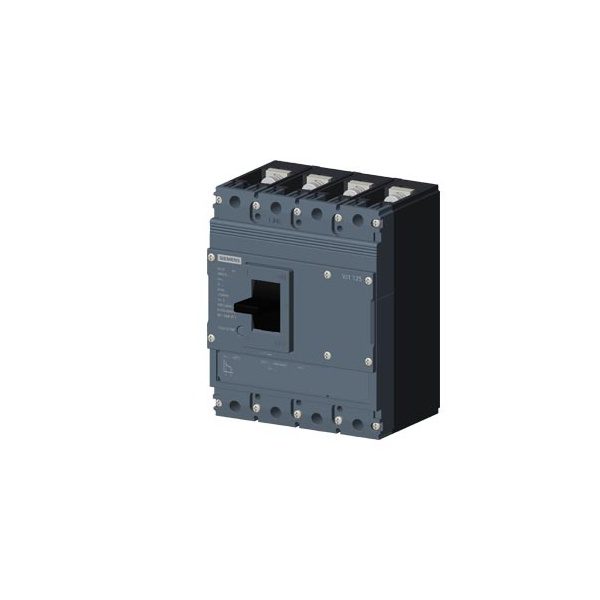

3VJ1192-7EA42-0AA0 | MCCB 25 A, 4 Pole, 55 kA, Fixed O/L & Fixed S/C Settings, Thermal Magnetic Trip Unit (FTFM) – Siemens

The 3VJ1192-7EA42-0AA0 is a high-performance Molded Case Circuit Breaker (MCCB) manufactured by Siemens. Designed for reliable and efficient electrical protection, this MCCB is ideal for a wide range of industrial and commercial applications.

Key Features:

• Rated Current: 25 A
• Number of Poles: 4 Pole
• Breaking Capacity: 55 kA
• Trip Unit Type: Thermal Magnetic Trip Unit (FTFM)
• Overload (O/L) Settings: Fixed
• Short Circuit (S/C) Settings: Fixed
• Mounting Type: Fixed

Applications:

This MCCB is suitable for use in electrical distribution systems, motor protection, and other applications requiring reliable circuit protection. Its robust design ensures durability and long-term performance in demanding environments.

Technical Specifications:

• Voltage Rating: Up to 690V AC
• Frequency: 50/60 Hz
• Standards Compliance: IEC 60947-2
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C

Benefits:

• High breaking capacity ensures reliable protection against short circuits and overloads.
• Fixed settings for overload and short circuit protection simplify installation and operation.
• Thermal magnetic trip unit provides precise and reliable tripping characteristics.
• Compact and robust design for easy integration into electrical systems.
