Product Description – 3VM13404ED320AA0

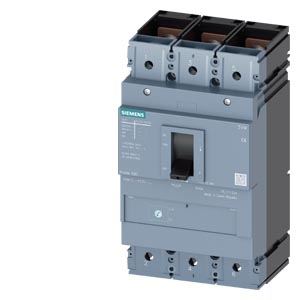

Siemens MCCB 400 A, 3 Pole, 36 kA, Fixed O/L & Fixed S/C Settings, Thermal Magnetic Trip Unit (FTFM)
Overview
The 3VM13404ED320AA0 is a Molded Case Circuit Breaker (MCCB) manufactured by Siemens. It is designed for reliable protection of electrical circuits against overloads and short circuits. This MCCB is suitable for industrial and commercial applications, offering high performance and durability.
Key Features
- Rated Current: 400 A
- Number of Poles: 3 Pole
- Breaking Capacity: 36 kA at 400 V AC
- Trip Unit Type: Fixed Thermal Magnetic Trip Unit (FTFM)
- Overload Protection: Fixed Settings
- Short Circuit Protection: Fixed Settings
- Mounting Type: Fixed
- Standards Compliance: IEC 60947-2, UL 489, CSA C22.2 No. 5
- Operating Temperature Range: -25°C to +70°C
- Terminal Type: Screw Terminals
- Enclosure Material: Thermoplastic, Flame Retardant
Applications
This MCCB is ideal for use in:
- Industrial control panels
- Commercial buildings
- Power distribution systems
- Motor protection circuits
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage (Ue) | 400 V AC |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Frequency | 50/60 Hz |
| Mechanical Life | 20,000 operations |
| Electrical Life | 10,000 operations |
| Weight | Approx. 3.5 kg |
Dimensions
Dimensions (W x H x D): 105 mm x 150 mm x 80 mm
Additional Information
For more details, refer to the product datasheet or contact Siemens technical support.
