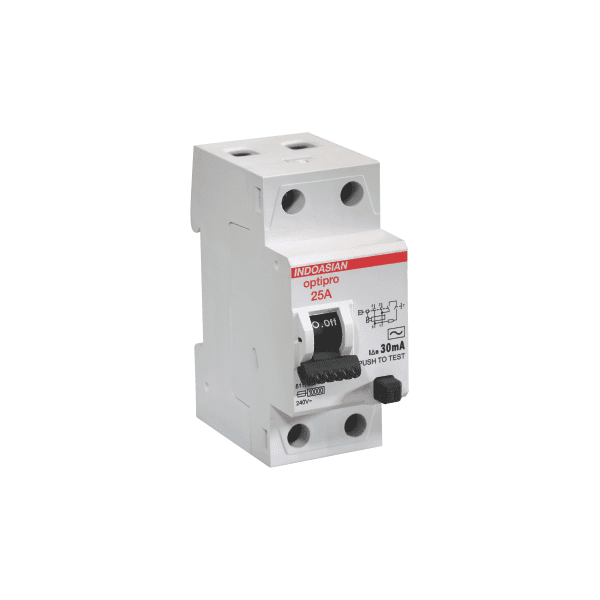

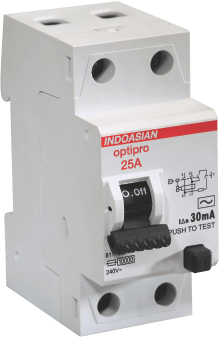

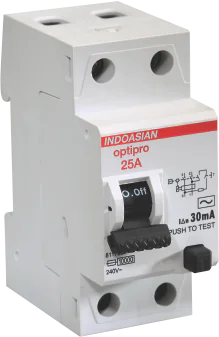

40A 30mA DP Optipro RCCB – Indoasian

Name: Indoasian 40A 30mA DP RCCB | Optipro Series | 811701
Brand: Indoasian
SKU: 811701
Price: 4805.00 INR
Availability: InStock

SKU: 811701

₹4,805.00 Excl. GST

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Indoasian 811701 rccb delivers dependable performance for reliable circuit protection and isolation. Key ratings include 40 A, 2 Poles. myelectric.in stocks the 40A 30mA DP Optipro RCCB for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Parameter	Value
Brand	Indoasian
Part Number / SKU	811701
Category	RCCB
Current Rating	40 A
Poles	2 Poles
Sensitivity	30 mA
Rated Voltage	230V AC
Rated Frequency	50 Hz
Max Break Time	≤ 300 ms at rated IΔn (per IEC 61008-1)
RCD Type	Type AC (sinusoidal AC sensitive)
Protection Function	Earth leakage only — pair with upstream MCB for overcurrent
Mounting	35mm DIN rail (EN 60715)
Test Facility	Built-in test button (monthly test per IS 12640)
Standard	IEC 61008 / IS 12640-1
Certifications	BIS certified (ISI mark)

⚡ Key Features

30 mA sensitivity — standard personnel shock protection — trips before a lethal current (>50mA) can flow through the body (IEC 61008).
40 A rated load current — the RCCB carries this full circuit current continuously while monitoring the live-neutral balance for any earth leakage.
2 Poles — for single-phase circuits; both live and neutral pass through the sensing core.
Earth-leakage protection only — no overload or short-circuit protection; install in series with an appropriately rated MCB for full circuit protection.
Mandatory test button — simulate a leakage fault to verify the trip mechanism without live fault conditions; test monthly per IS 12640 recommendation.
Type AC — designed for purely sinusoidal AC residual currents on standard residential and commercial circuits.
Manufactured to IEC 61008 / IS 12640-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified (ISI mark) — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Indoasian product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.

❓ Frequently Asked Questions

Q: What is the significance of the 40 A rating on the 811701?

A: The 40 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: Why is the 30 mA sensitivity specified on the 811701 and when should you choose a different rating?

A: 30 mA is the residual current at which the 811701 will trip within 300ms. A 30mA sensitivity provides additional shock protection (mandatory for socket circuits per IS 732). 100mA is used for fire protection (no shock protection). 300mA protects feeders without nuisance tripping. Choose based on the circuit’s risk profile — never use >30mA for socket outlet circuits in wet or high-risk locations.

Q: How many downstream circuits can be protected under the 811701 without nuisance tripping?

A: Downstream MCBs or RCBOs can be connected below the 811701, but the total standing leakage current of all connected circuits must not exceed 30–50% of the RCCB’s rated sensitivity — typically 9–15mA for a 30mA device. Each appliance with a filter (computers, VFDs, LED drivers) contributes 0.5–3mA of standing leakage, so limit the count of such loads per RCCB to prevent cumulative leakage causing nuisance tripping.

Q: Will the 811701 trip on earth faults from variable frequency drives (VFDs)?

A: VFDs, LED drivers, and switched-mode power supplies generate high-frequency leakage currents that can cause nuisance tripping in standard Type AC RCCBs. If your installation includes VFDs, use a Type A (for pulsating DC components) or Type F/B RCCB. The 811701 specification (AC or A type) determines suitability — check the product marking.

Q: What is the difference between an RCCB and a standard MCB — and why use the 811701?

A: A standard MCB protects against overload and short-circuit only. An RCCB adds earth leakage (residual current) detection — it trips on faults as low as 30mA to ground, protecting against electric shock and fire from insulation faults, which a standard MCB cannot detect. Choose the 811701 when the application specifically requires rccb characteristics.
