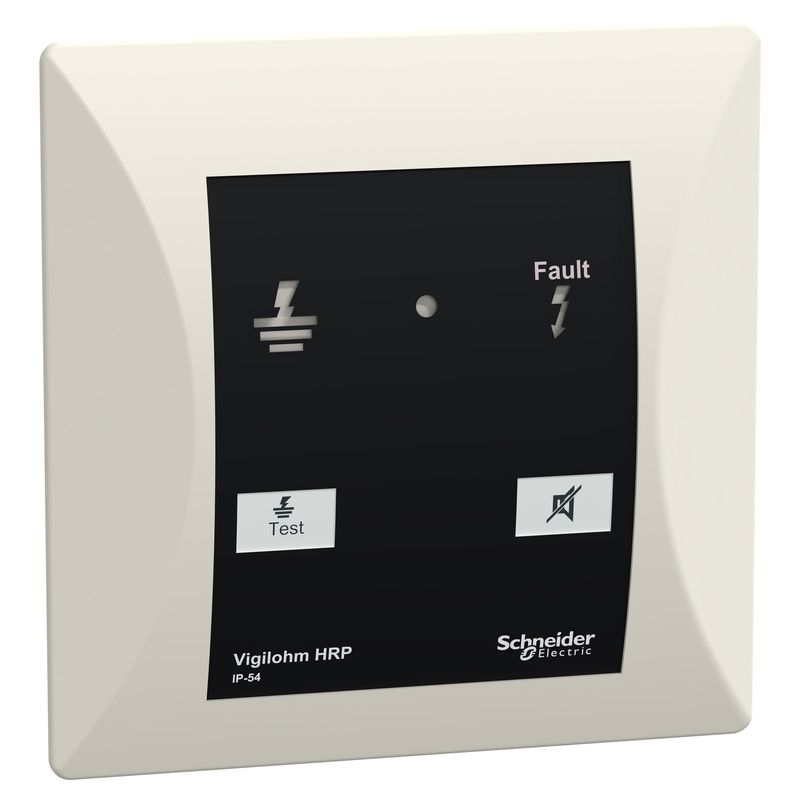

50168 | HOSPITAL REMOTE PANEL – Schneider Electric
Original price was: ₹15,114.00.₹7,859.28Current price is: ₹7,859.28. Excl. GST
Dispatch By : 7 Weeks
Dispatch By : 7 Weeks
17
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Range | Vigilohm |
| Range of product | Vigilohm |
| Device short name | HRP |
| Product or component type | Hospital remote panel |
| Range compatibility | Vigilohm Vigilohm IM IM20-H |
| Sound signalling | Insulation or electrical fault: buzzer adjustable 80 dB |
| Complementary | |
| auxiliary supply voltage | 24 V DC |
| Current consumption | 65 mA |
| Material | Plastic |
| Control type | Push-button: test installation insulation Push-button: stop alarm buzzer |
| Local signalling | Insulation fault: indicator light (orange) Electrical fault: indicator light (red) Normal operation: indicator light (green) |
| Net weight | 0.5 kg |
| Width | 170 mm |
| Height | 170 mm |
| Depth | 20 mm |
| Environment | |
| IP degree of protection | IP54 |
| IK degree of protection | IK08 |
| Operating altitude | 2000 m |
| Relative humidity | 90 % |
| Standards | IEC 60364-7-710: medical location IEC 61557-8: safety IEC 60601-1: medical electrical equipment |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -25…70 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.600 cm |
| Package 1 Width | 20.600 cm |
| Package 1 Length | 21.500 cm |
| Package 1 Weight | 352.400 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 4.224 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
