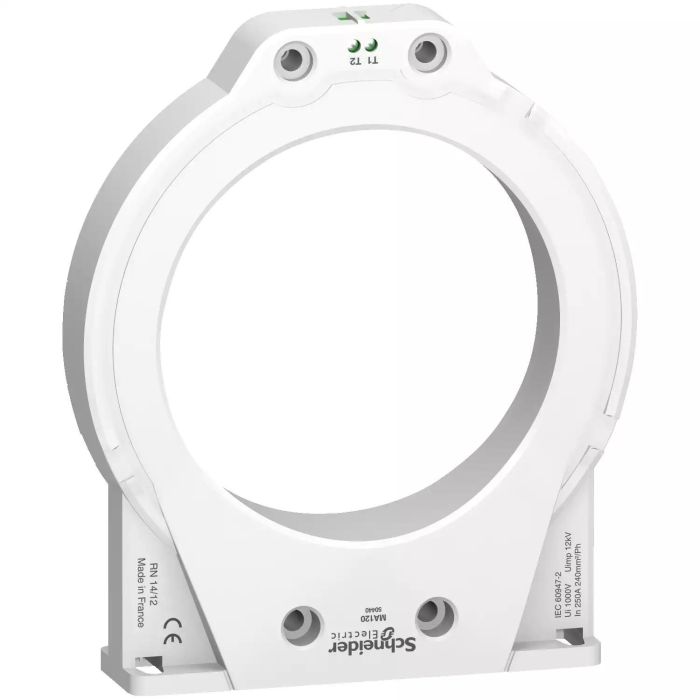

50440 | CLOSED TO ROID FOR RESIDUAL CURRENT PROT – Schneider Electric

Name: 50440 | CLOSED TO ROID FOR RESIDUAL CURRENT PROT - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: 50440
Price: 27864.00 INR
Availability: BackOrder

SKU: 50440

Original price was: ₹32,400.00.Current price is: ₹27,864.00. Excl. GST

Dispatch By : 2 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-18%

56272 | EARTHLEAKAGE RELAY RH99P WITH MANUAL RES – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 56272

-18%

56273 | EARTHLEAKAGE RELAY RH99P WITH MANUAL RES – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 56273

-14%

56170 | EARTHLEAKAGE RELAY RH99M WITH MANUAL RES – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 56170

-14%

56173 | EARTH LEAKAGE RELAY RH99M MANUAL RES – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 56173

-14%

56130 | EARTH LEAKAGE RELAY RH10M 30 MA 240 V – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 56130

Sourced through authorised channels, the Schneider Electric 50440 electrical component from the VigiPacT range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include 250 A, Body: IP30. myelectric.in stocks the CLOSED TO ROID FOR RESIDUAL CURRENT PROT for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	50440
Category	Electrical Component
Main
Range	VigiPacT
Device short name	MA120
Product or component type	Earth leakage current sensor
Device application	Equipment monitoring and control
Range compatibility	VigiPacT RH10M residual current protection relay VigiPacT RH10P residual current protection relay VigiPacT RH21M residual current protection relay VigiPacT RH21P residual current protection relay VigiPacT RH68M residual current protection relay VigiPacT RH86M residual current protection relay VigiPacT RH86P residual current protection relay VigiPacT RH99M residual current protection relay VigiPacT RH99P residual current protection relay VigiPacT RH197M residual current protection relay VigiPacT RH197P residual current protection relay VigiPacT RHU residual current protection relay VigiPacT RHUs residual current protection relay VigiPacT RMH residual current protection relay
current sensor type	A type closed toroid
[Ie] rated operational current	250 A
Complementary
Transformer ratio	1/1000
Network frequency	50/60 Hz 400 Hz
[Icw] rated short-time withstand current	85 kA for 0.5 s
Residual short-circuit withstand current	85 kA / 0.5 s conforming to IEC 60947-2
[Ui] rated insulation voltage	1000 V
Overvoltage category	IV
[Uimp] rated impulse withstand voltage	12 kV
Mounting mode	Fixed (cables) Fixed (plain backplate) Fixed (profiled sheet metal) Fixed (slotted backplate) Clip-on (DIN rail)
Calorific value	3.89 MJ
Connections – terminals	Screw connection 0.22…2.5 mm²
Diameter	118 mm inner:
Product weight	0.45 kg
Height	164 mm
Width	190 mm
Depth	39 mm
Environment
IP degree of protection	Body: IP30 Connectors: IP20
Environmental characteristic	Exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56 Exposure to damp heat not in service (25…55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30 Salt mist: Kb/2 conforming to IEC 60068-2-52
Pollution degree	Level 3 conforming to IEC 60664-1
Ambient air temperature for operation	-35…70 °C
Ambient air temperature for storage	-55…85 °C
Standards	IEC 60947-2
Product certifications	CE
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.500 cm
Package 1 Width	17.700 cm
Package 1 Length	20.200 cm
Package 1 Weight	510.000 g
Unit Type of Package 2	S04
Number of Units in Package 2	26
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	13.960 kg
Unit Type of Package 3	P12
Number of Units in Package 3	104
Package 3 Height	50.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	67.040 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
