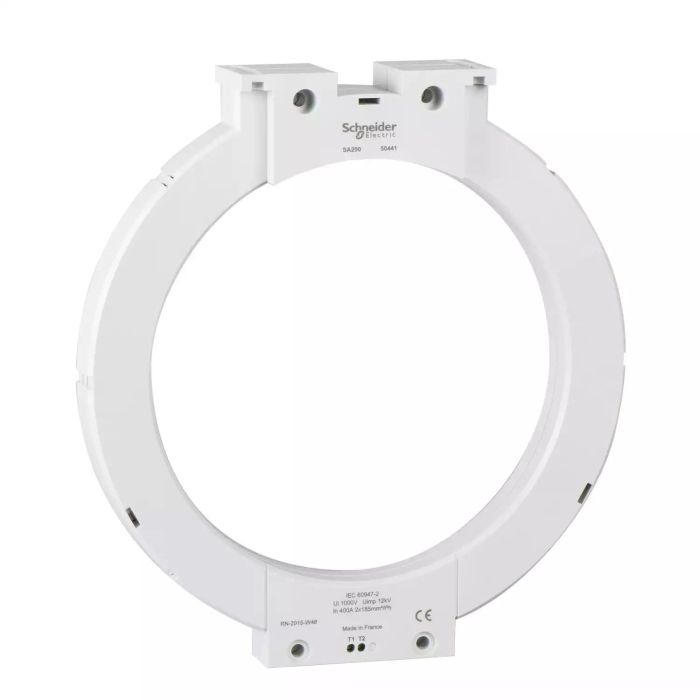

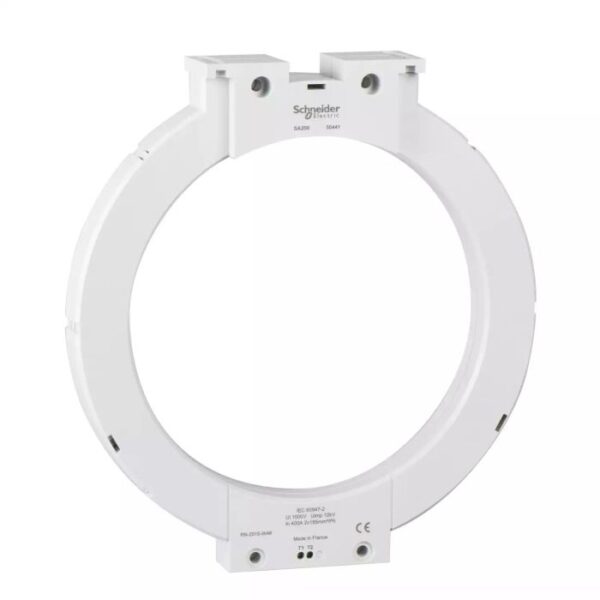

50442 | CLOSED TO ROID FOR RESIDUAL CURRENT PROT – Schneider Electric

Name: 50442 | CLOSED TO ROID FOR RESIDUAL CURRENT PROT - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: 50442
Price: 679.81 EUR
Availability: BackOrder

SKU: 50442

Original price was: €1,346.15.Current price is: €679.81. Excl. GST

Dispatch By : 7 Weeks

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-14%

56170 | EARTHLEAKAGE RELAY RH99M WITH MANUAL RES – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 56170

-14%

56130 | EARTH LEAKAGE RELAY RH10M 30 MA 240 V – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 56130

-18%

56273 | EARTHLEAKAGE RELAY RH99P WITH MANUAL RES – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 56273

-18%

56272 | EARTHLEAKAGE RELAY RH99P WITH MANUAL RES – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 56272

-14%

56173 | EARTH LEAKAGE RELAY RH99M MANUAL RES – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: 56173

Looking for the CLOSED TO ROID FOR RESIDUAL CURRENT PROT? This genuine Schneider Electric electrical component from the VigiPacT range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 630 A, Body: IP30. Order part number 50442 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	50442
Category	Electrical Component
Main
Range	VigiPacT
Device short name	GA300
Product or component type	Earth leakage current sensor
Device application	Equipment monitoring and control
Range compatibility	VigiPacT RH10M residual current protection relay VigiPacT RH10P residual current protection relay VigiPacT RH21M residual current protection relay VigiPacT RH21P residual current protection relay VigiPacT RH68M residual current protection relay VigiPacT RH86M residual current protection relay VigiPacT RH86P residual current protection relay VigiPacT RH99M residual current protection relay VigiPacT RH99P residual current protection relay VigiPacT RH197M residual current protection relay VigiPacT RH197P residual current protection relay VigiPacT RHU residual current protection relay VigiPacT RHUs residual current protection relay VigiPacT RMH residual current protection relay
current sensor type	A type closed toroid
[Ie] rated operational current	630 A
Complementary
Transformer ratio	1/1000
Network frequency	50/60 Hz 400 Hz
[Icw] rated short-time withstand current	85 kA for 0.5 s
Residual short-circuit withstand current	85 kA / 0.5 s conforming to IEC 60947-2
[Ui] rated insulation voltage	1000 V
Overvoltage category	IV
[Uimp] rated impulse withstand voltage	12 kV
Mounting mode	Fixed (cables)
Connections – terminals	Screw connection 0.22…2.5 mm²
Diameter	291 mm inner:
Product weight	2.28 kg
Height	Outside: 360 mm
Width	Outside: 390 mm
Height	360 mm
Width	390 mm
Depth	46 mm
Environment
IP degree of protection	Body: IP30 Connectors: IP20
Environmental characteristic	Exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56 Exposure to damp heat not in service (25…55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30 Salt mist: Kb/2 conforming to IEC 60068-2-52
Pollution degree	Level 3 conforming to IEC 60664-1
Ambient air temperature for operation	-35…70 °C
Ambient air temperature for storage	-55…85 °C
Standards	IEC 60947-2
Product certifications	CE
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.400 cm
Package 1 Width	36.800 cm
Package 1 Length	40.200 cm
Package 1 Weight	2.139 kg
Unit Type of Package 2	S04
Number of Units in Package 2	5
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	11.393 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
