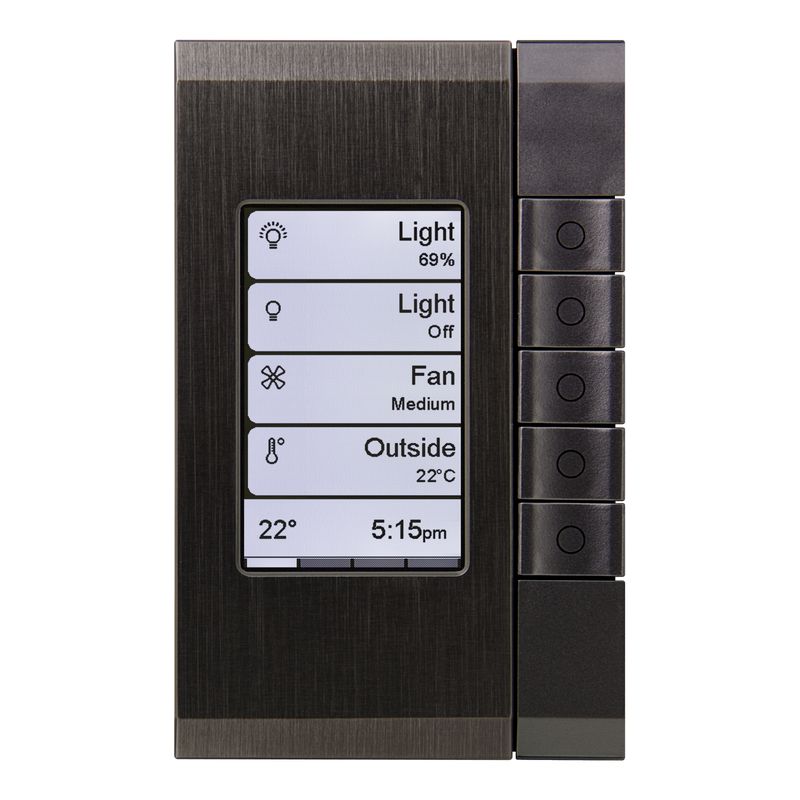

5085EDLW-HB | C-BUS EDLT, WHITE GRID, SATURN HB FASCIA – Schneider Electric

Name: 5085EDLW-HB - C-bus Edlt, White Grid, Saturn Pw Fascia | Schneider Electric
Brand: Schneider Electric
SKU: 5085EDLW-HB
Price: 61306.82 INR
Availability: BackOrder

SKU: 5085EDLW-HB

Original price was: ₹71,287.00.Current price is: ₹61,306.82. Excl. GST

Dispatch By : 7 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	C-Bus
Product brand	Clipsal
Product name	C-Bus Saturn
Product or component type	Wall plate
Device application	Control
Complementary
Colour	Cover plate: horizon black Grid: white
Provided equipment	Mounting plate Flying lead
Control type	5 x push-button dual-action
Local signalling	Status: LED (tri-colour) on push-button
Switch application	Lighting Timer Audio Blind control Fan speed control Scene control On/off switching Shutter control Dimming up/down control Page navigation
Local display	Backlit LCD display
Display type	Colour TFT display
Display size	2.8 inch
Messages display capacity	Up to 4 pages
Information displayed	Load type Temperature Power Date Time Operating mode
Number of outputs	16 in 4 page option 5 in 1 page option
Function of module	Proximity sensor monitoring wake-up
Communication port protocol	C-Bus – 2 wires
[Us] rated supply voltage	15…36 V: DC
Maximum supply current	32 mA
Material	Metal
Connector type	Mini USB port (rear) Socket (rear) for C-Bus
Function available	Firmware update by USB
User language	Multi-language
Product compatibility	LAN cable Cat. 5e
Electrical connection	Flying lead
Clamping connection capacity	0.2…1.5 mm²
fixing mode	By screws
Mounting support	Wall
Width	77 mm
Height	123 mm
Depth	35 mm
Embedding depth	23.5 mm
Colour code	HB
Environment
IP degree of protection	IP20
Ambient air temperature for operation	5…45 °C
Product certifications	CE RCM
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.8 cm
Package 1 Width	11 cm
Package 1 Length	16 cm
Package 1 Weight	198 g
Unit Type of Package 2	CAR
Number of Units in Package 2	8
Package 2 Height	20.6 cm
Package 2 Width	22.5 cm
Package 2 Length	33 cm
Package 2 Weight	2.903 kg
Unit Type of Package 3	PAL
Number of Units in Package 3	240
Package 3 Height	103.0 cm
Package 3 Width	66.0 cm
Package 3 Length	67.5 cm
Package 3 Weight	97.082 kg
Contractual warranty
Warranty (in months)	18
