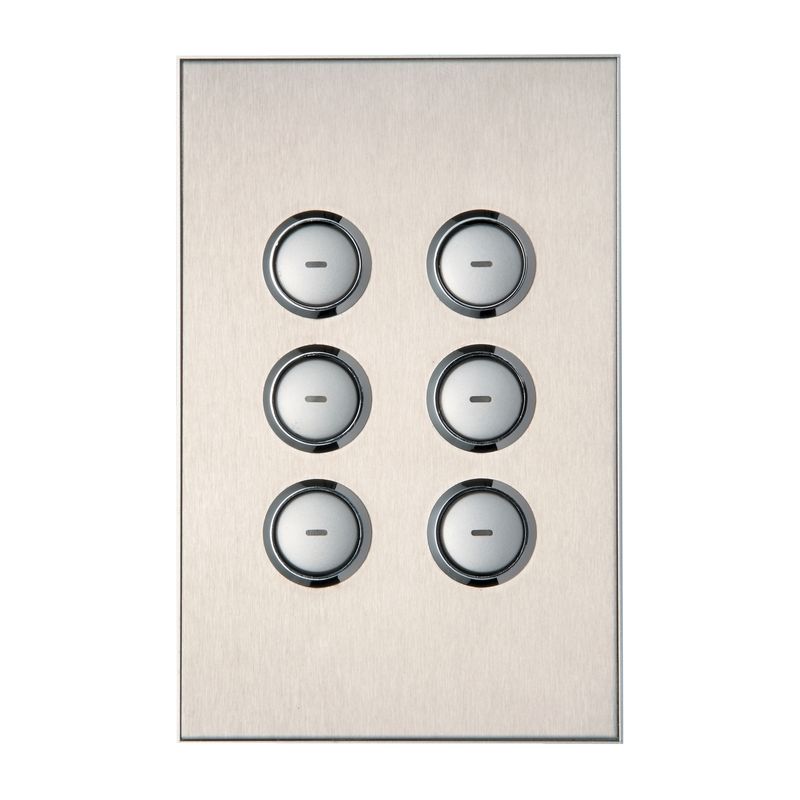

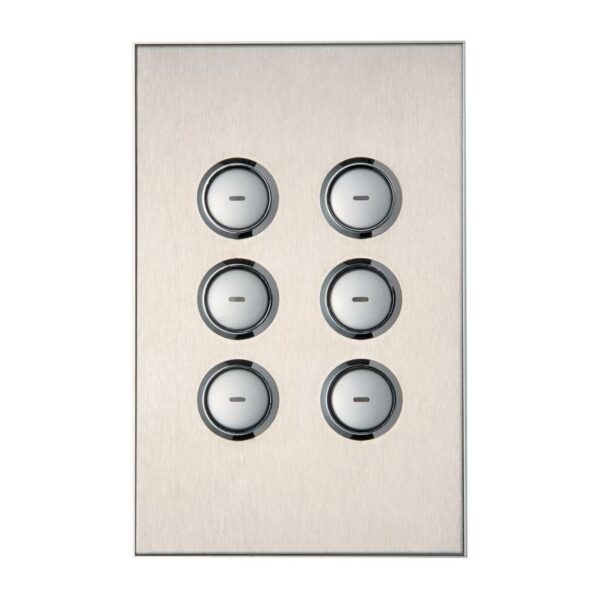

5086J80 | C-Bus Key Input Saturn A Series 6 Key SS – Schneider Electric

Name: 5086J80 - SpaceLogic Wall Plate, C-Bus, Saturn, A-Series, Key Input unit | Schneider Electric
Brand: Schneider Electric
SKU: 5086J80
Price: 18619.00 INR
Availability: BackOrder

SKU: 5086J80

Original price was: ₹21,650.00.Current price is: ₹18,619.00. Excl. GST

Dispatch By : 6 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Product brand	Schneider Electric
Range	SpaceLogic C-Bus
Product name	C-Bus Saturn A Series
Product or component type	Switch
Device application	Control
Colour tint	Stainless steel
Complementary
Device presentation	Complete product
Number of gangs	6 gangs
Control type	Push-button
Provided equipment	fascia plate body switch push-button cap
Material	Stainless steel
[Ue] rated operational voltage	15…36 V DC
[In] rated current	22 mA
Communication network type	C-Bus
Input impedance	50 kOhm at 1 kHz
Isolation voltage	3.75 kV from C-Bus to mains
Switch function	Load switching Dimmer Time switch function Scene control Roller shutter Bell push switch Curtain Roller blind Toggle
Local signalling	LED (red, green and blue) for status
Connections – terminals	Terminal block – 0.2…1.3 mm² (24 AWG…16 AWG)
Mounting support	Wall-mount
fixing center	84 mm
Width	75 mm
Height	116 mm
Depth	28 mm
Net weight	54 g
Main colour tint	Stainless steel
Environment
Ambient air temperature for operation	0…45 °C
Relative humidity	10…95 % non-condensing
Product certifications	RCM CE UKCA
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	12 cm
Package 1 Width	75 cm
Package 1 Length	16 cm
Package 1 Weight	262 g
Unit Type of Package 2	CAR
Number of Units in Package 2	10
Package 2 Height	16 cm
Package 2 Width	225 cm
Package 2 Length	345 cm
Package 2 Weight	2.98 kg
Contractual warranty
Warranty (in months)	18
