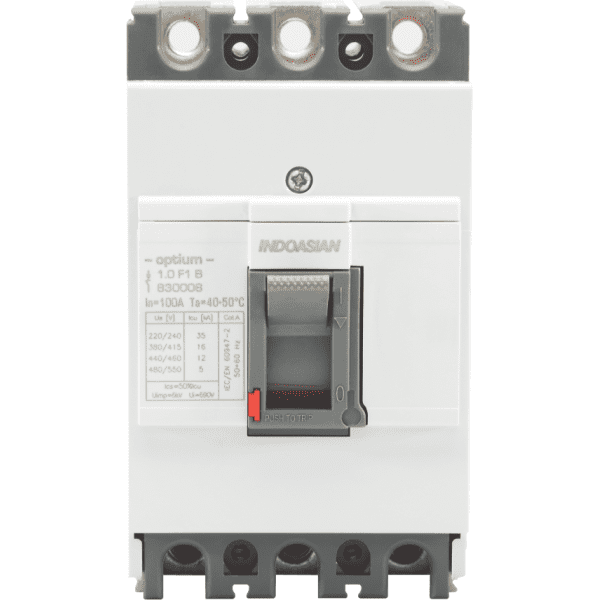

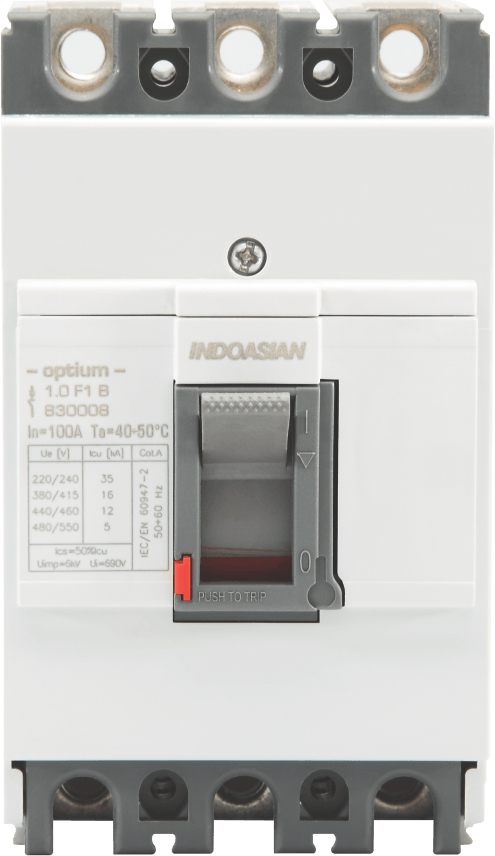

50A 3P 16KA TM Optium 1.0 Fixed F1 MCCB – Indoasian

The 50A 3P 16KA TM Optium 1.0 Fixed F1 MCCB by Indoasian is a high-performance molded case circuit breaker designed for reliable and efficient electrical protection. This MCCB is suitable for a wide range of industrial and commercial applications, ensuring safety and durability in electrical systems.

Key Features:

• Rated Current: 50A
• Number of Poles: 3P (Three Poles)
• Breaking Capacity: 16KA (16,000 Amps)
• Type: TM (Thermal Magnetic)
• Series: Optium 1.0
• Mounting Type: Fixed
• Frame Size: F1
• Brand: Indoasian

Applications:

This MCCB is ideal for protecting electrical circuits from overloads and short circuits in various settings, including:

• Industrial plants
• Commercial buildings
• Residential complexes
• Power distribution systems

Technical Specifications:

• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Operating Temperature: -5°C to +40°C
• Standards: Compliant with IEC 60947-2
• Terminal Type: Screw type
• Mechanical Life: 20,000 operations
• Electrical Life: 10,000 operations

Safety and Reliability:

The 50A 3P 16KA TM Optium 1.0 Fixed F1 MCCB is engineered to provide superior protection against electrical faults, ensuring the safety of both equipment and personnel. Its robust construction and advanced thermal-magnetic trip mechanism make it a reliable choice for demanding environments.

Installation and Maintenance:

Designed for easy installation and minimal maintenance, this MCCB is a cost-effective solution for long-term electrical protection. Its fixed mounting type ensures stability and secure operation over time.

Why Choose Indoasian?

Indoasian is a trusted name in the electrical industry, known for its high-quality products and innovative solutions. The Optium 1.0 series MCCBs are designed to meet the highest standards of performance and safety, making them a preferred choice for professionals worldwide.

Product Data Sheet
