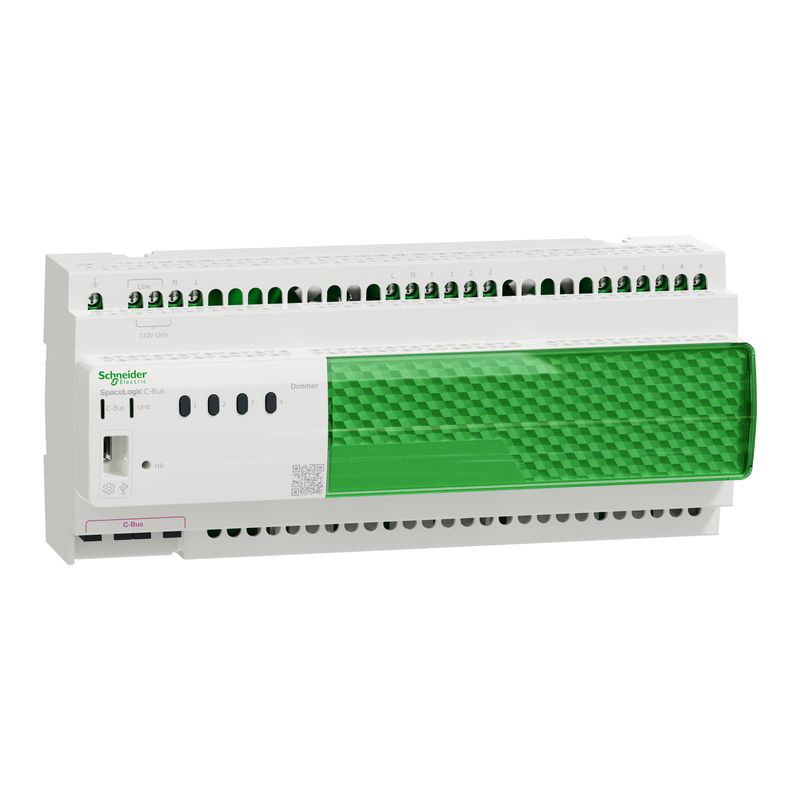

5504D2D | C-Bus Dimmer, DIN Rail, 4 Channel, 2A – Schneider Electric
Original price was: ₹64,397.00.₹55,381.42Current price is: ₹55,381.42. Excl. GST
Dispatch By : 7 Weeks
Dispatch By : 7 Weeks
10
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Range | SpaceLogic C-Bus |
| Product brand | Schneider Electric |
| Product or component type | Dimmer |
| Device application | Light control |
| Device presentation | Complete device |
| Provided equipment | 1 400 mm patch cable |
| load type | Dimmable LED Halogen lamp Halogen lamp with standard electronic transformer Halogen lamp with standard ferromagnetic transformer Incandescent lamps |
| Load current | 2 A per channel 8 A per unit |
| Dimmer type | Trailing edge Leading edge |
| [Ue] rated operational voltage | 230 V AC +/- 10 % at 50 Hz 110 V AC +/- 10 % at 60 Hz |
| Complementary | |
| Network frequency | 47…53 Hz 57…63 Hz |
| Communication network type | C-Bus |
| Number of modules | 12 |
| Number of channels | 4 |
| Connector type | 2 RJ45 connectors for C-Bus |
| Device mounting | DIN rail |
| Mounting support | DIN rail |
| Width | 216 mm |
| Height | 92 mm |
| Depth | 63 mm |
| Net weight | 783 g |
| Colour tint | White |
| Environment | |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…93 % non-condensing |
| Standards | REACH RoHS |
| Product certifications | RCM UKCA CE |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.500 cm |
| Package 1 Width | 22.500 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 800.500 g |
| Logistical informations | |
| Country of origin | CN |
| Contractual warranty | |
| Warranty (in months) | 18 |
