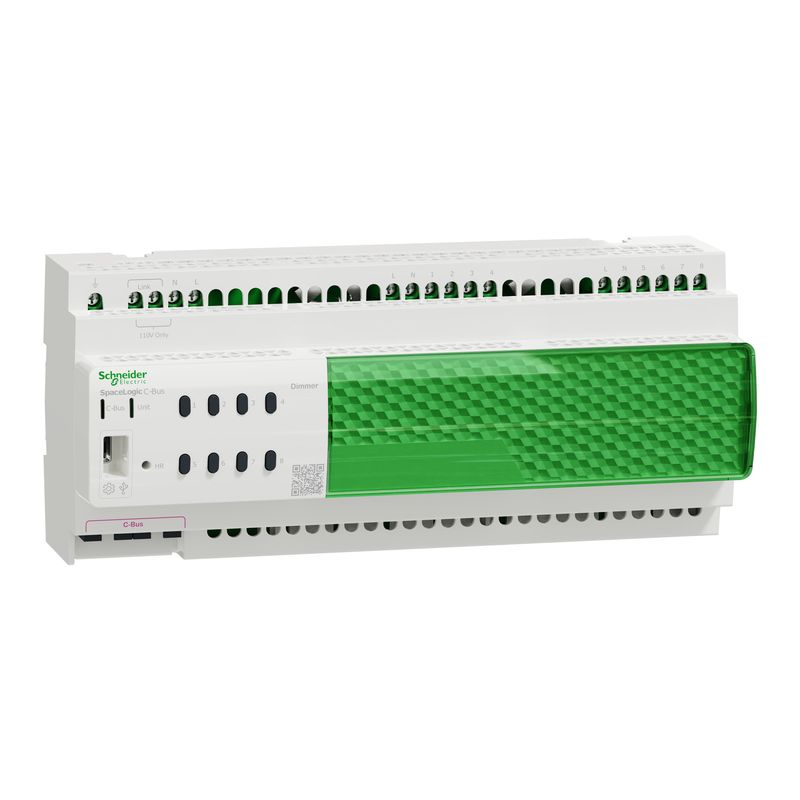

5508D1D | C-Bus Dimmer, DIN Rail, 8 Channel, 1A – Schneider Electric

Name: 5508D1D - Dimmer, SpaceLogic C-Bus, 8 channel, 1A per channel | Schneider Electric
Brand: Schneider Electric
SKU: 5508D1D
Price: 69467.36 INR
Availability: BackOrder

SKU: 5508D1D

Original price was: ₹80,776.00.Current price is: ₹69,467.36. Excl. GST

Dispatch By : 7 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	SpaceLogic C-Bus
Product brand	Schneider Electric
Product or component type	Dimmer
Device application	Light control
Device presentation	Complete device
Provided equipment	1 400 mm patch cable
load type	Dimmable LED Halogen lamp Halogen lamp with standard electronic transformer Halogen lamp with standard ferromagnetic transformer Incandescent lamps
Load current	1 A per channel 8 A per unit
Dimmer type	Trailing edge Leading edge
[Ue] rated operational voltage	230 V AC +/- 10 % at 50 Hz 110 V AC +/- 10 % at 60 Hz
Complementary
Network frequency	47…53 Hz 57…63 Hz
Communication network type	C-Bus
Number of channels	8
Connector type	2 RJ45 connectors for C-Bus
Device mounting	DIN rail
Mounting support	DIN rail
Width	216 mm
Height	92 mm
Depth	63 mm
Net weight	0.844 kg
Colour tint	White
Environment
Ambient air temperature for operation	-5…55 °C
Ambient air temperature for storage	-20…60 °C
Relative humidity	10…93 % non-condensing
Standards	REACH RoHS
Product certifications	RCM UKCA CE
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	9.700 cm
Package 1 Width	10.100 cm
Package 1 Length	22.300 cm
Package 1 Weight	844.000 g
Logistical informations
Country of origin	CN
Contractual warranty
Warranty (in months)	18
