56164 | EARTHLEAKAGE RELAY RH21M 300 MA 0.06 S 4 – Schneider Electric

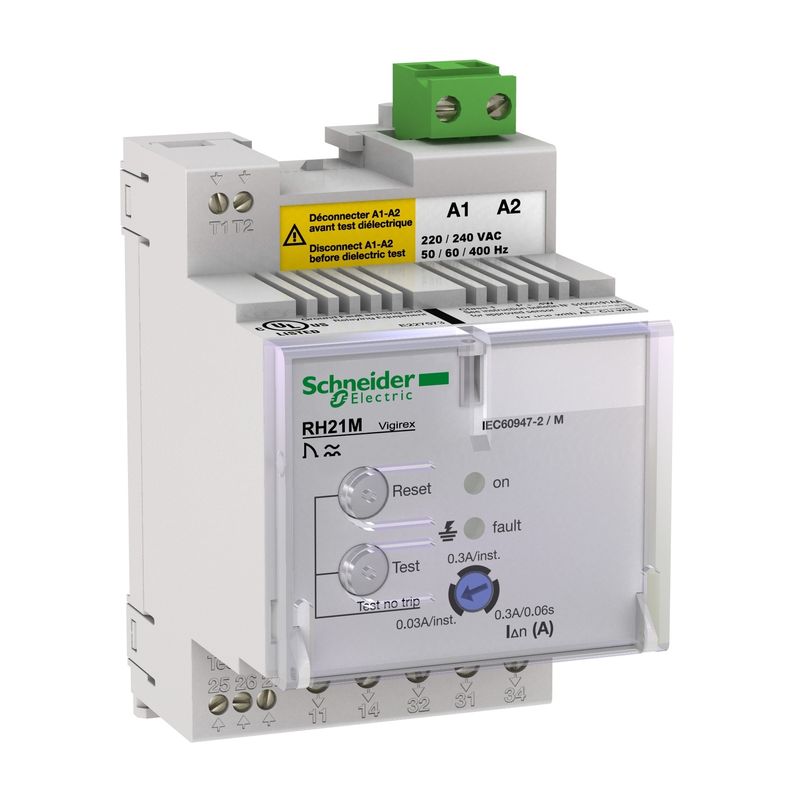

Name: 56164 - Residual current protection relay, Vigirex RH21M, 30 mA or 300 mA | Schneider Electric
Brand: Schneider Electric
SKU: 56164
Price: 36366.00 INR
Availability: BackOrder

SKU: 56164

Original price was: ₹44,080.00.Current price is: ₹36,366.00. Excl. GST

Dispatch By : 7 Weeks

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	VigiPacT
Device short name	RH21M
Product or component type	Residual current protection relay
Relay application	Protection relay
Mounting support	DIN rail
Earth-leakage protection class	Type A
Type of setting	Selector
Residual earth-leakage sensitity adjustment type	Adjustable 2 settings
Earth-leakage sensitivity	0.03 A 0.3 A
Earth-leakage time delay	Instantaneous for 0.03 A Instantaneous for 0.3 A Fixed 0.06 s for 0.3 A
Current sensors compatibility	VigiPacT TOA earth leakage current sensor VigiPacT A earth leakage current sensor VigiPacT L earth leakage current sensor
[Ithe] conventional enclosed thermal current	8 A
Minimum load	10 mA at 12 V
[Us] rated supply voltage	380…415 V AC 50/60 Hz 55…110 %
Power consumption in VA	4 VA
Monitored distribution system	1000 V – AC at 50/60 Hz (maximum) 1000 V – AC at 400 Hz (maximum)
Earthing system	TT TN-S IT
[Uimp] rated impulse withstand voltage	8 kV
Reset	Manual reset
Complementary
Test function	Local Remote test
Monitoring	Electronics (continuous) Power supply (continuous) Relay/sensor link (continuous)
Type of measurement	Earth fault current internal measurement, range: 80…100 %
Tamperproof of settings	Protected by sealable cover
Connections – terminals	Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG…12 AWG Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG…12 AWG Auxiliary power supply: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG…12 AWG Fault: screw terminal cable(s) 0.2…2.5 mm² flexible 24 AWG…12 AWG Fault: screw terminal cable(s) 0.2…4 mm² rigid 24 AWG…12 AWG Fault: screw terminal cable(s) 0.25…2.5 mm² flexible 24 AWG…12 AWG Relay test and fault reset: screw terminal cable(s) 0.14…1 mm² flexible 26 AWG…16 AWG Relay test and fault reset: screw terminal cable(s) 0.14…1.5 mm² rigid 26 AWG…16 AWG Relay test and fault reset: screw terminal cable(s) 0.25…0.5 mm² flexible 26 AWG…16 AWG Sensor: screw terminal cable(s) 0.14…1 mm² flexible 26 AWG…16 AWG Sensor: screw terminal cable(s) 0.14…1.5 mm² rigid 26 AWG…16 AWG Sensor: screw terminal cable(s) 0.25…0.5 mm² flexible 26 AWG…16 AWG Voltage presence: screw terminal cable(s) 0.2…2.5 mm² flexible 24 AWG…12 AWG Voltage presence: screw terminal cable(s) 0.2…4 mm² rigid 24 AWG…12 AWG Voltage presence: screw terminal cable(s) 0.25…2.5 mm² flexible 24 AWG…12 AWG
Wire stripping length	Auxiliary power supply: 7 mm for top connection Fault: 8 mm for bottom connection Relay test and fault reset: 5 mm for bottom connection Sensor: 5 mm for top connection Voltage presence: 8 mm for bottom connection
Tightening torque	Auxiliary power supply: 0.6 N.m top Fault: 0.6 N.m bottom Relay test and fault reset: 0.25 N.m bottom Sensor: 0.25 N.m top Voltage presence: 0.6 N.m bottom
9 mm pitches	6
Standards	EN/IEC 60947-2 Annex M EN/IEC 60755 UL 1053 CAN/CSA C22.2 No. 144
Width	54 mm
Height	81 mm
Depth	74 mm
Net weight	0.3 kg
IP degree of protection	IP40 on front face: conforming to EN/IEC 60529 IP30 on side parts: conforming to EN/IEC 60529 IP20 on connection terminals: conforming to EN/IEC 60529
IK degree of protection	IK07 conforming to EN 50102
Mechanical robustness	Fire resistance conforming to IEC 60695-2-1 IK protection 2 joules: IK07 conforming to EN 50102 Vibrations 13.2…100 Hz: 0.7 g Vibrations 2…13.2 Hz: +/- 1 mm
Environment
Overvoltage category	IV
Electrical shock protection class	Class II
Electromagnetic compatibility	Conducted and radiated emissions: , B, conforming to CISPR 11 Conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6 Electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2 High-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5 Low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4 Radiated susceptibility: , 3, conforming to IEC 61000-4-3
Relative humidity	95 % at 55 °C
Pollution degree	3 conforming to IEC 60664-1
Ambient air temperature for operation	-35…70 °C
Ambient air temperature for storage	-55…85 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.1 cm
Package 1 Width	7.4 cm
Package 1 Length	5.4 cm
Package 1 Weight	351 g
Contractual warranty
Warranty (in months)	18
