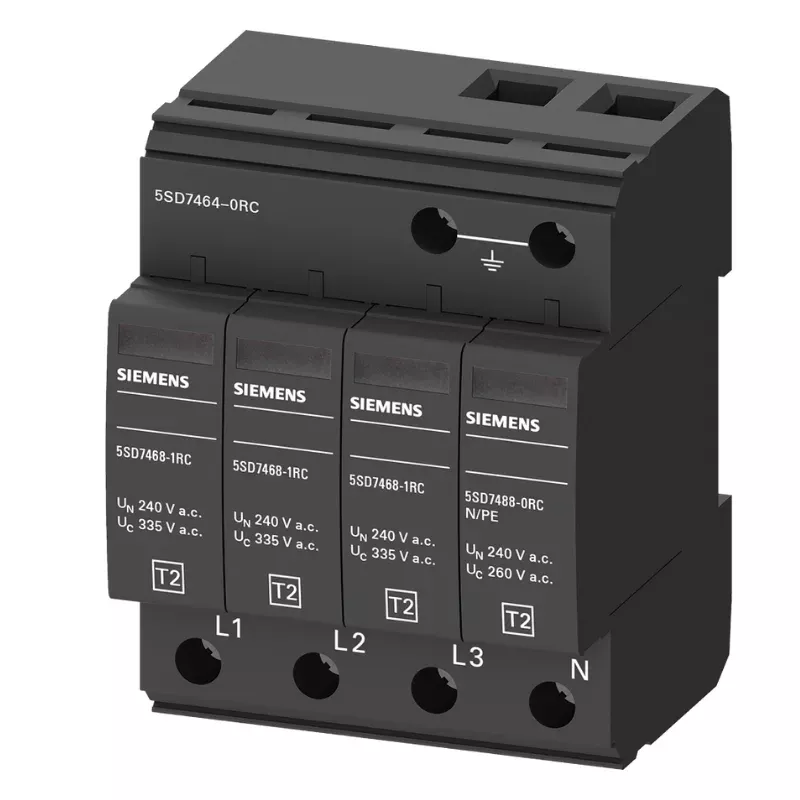

Sourced through authorised channels, the Siemens 5SD74640RC surge protection device (spd) delivers dependable performance for reliable circuit protection and isolation. Key ratings include 240/415V AC, 3 Poles + Neutral (3P+N). myelectric.in stocks the 5SD74640RC | Siemens Surge Protection Device Surge Arrester Type 2, 240/415 V AC, 3P+N for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Parameter	Value
Brand	Siemens
Part Number / SKU	5SD74640RC
Category	Surge Protection Device (SPD)
Voltage Rating	240/415V AC
Poles	3 Poles + Neutral (3P+N)
Rated Frequency	50/60 Hz
Standard	IEC 61643-11
Certifications	BIS certified, CE, cULus (select models)

⚡ Key Features

240/415V AC maximum continuous operating voltage (Uc) — remains permanently connected to the live supply; clamping only activates during overvoltage events.
MOV (Metal Oxide Varistor) clamping technology — responds in nanoseconds (< 25ns) to clamp transient overvoltages before they reach connected sensitive electronics.
Visual end-of-life indicator — green flag (healthy) turns red when the MOV has absorbed its rated energy and must be replaced; ensures protection level is always verified.
35mm DIN rail mounting — installs inside the main distribution board at the point of entry; protects the entire downstream installation in a single device.
Type 2 / Class II — installed at sub-distribution boards as secondary protection after a Type 1 at the main intake; protects equipment from switching transients and residual lightning energy.
Manufactured to IEC 61643-11 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE, cULus (select models) — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Siemens product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
