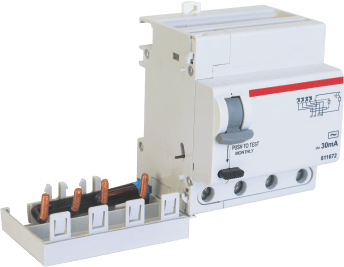

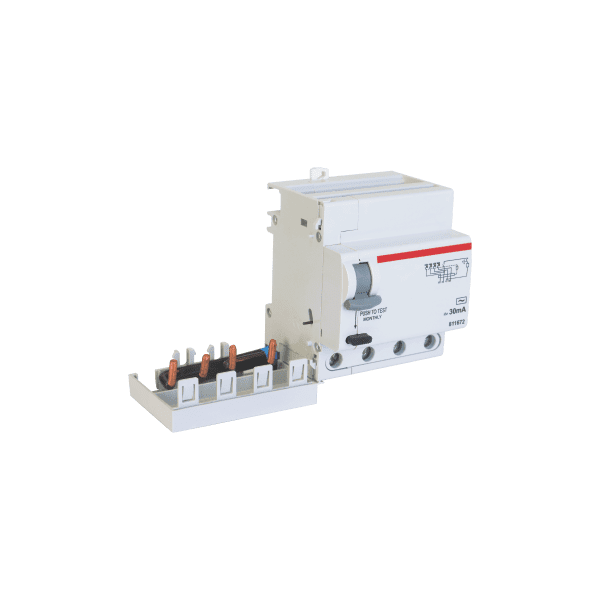

63A 100MA FP RCD ADD ON BLOCK – Indoasian

Name: Indoasian 63A 100mA RCD Add-On Block - 811675
Brand: Indoasian
SKU: 811675
Price: 6319.00 INR
Availability: InStock

SKU: 811675

₹6,319.00 Excl. GST

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Indoasian 811675 is a rcd add-on block, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 63 A, 4 Poles. Buy the 63A 100MA FP RCD ADD ON BLOCK online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Parameter	Value
Brand	Indoasian
Part Number / SKU	811675
Category	RCD Add-on Block
Current Rating	63 A
Poles	4 Poles
Sensitivity	100 mA
Standards	IS 8828 (MCBs)
Certifications	BIS certified (ISI mark)

⚡ Key Features

63 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
Manufactured to IS 8828 (MCBs), IS 12640 (RCCB), IS 13947 (contactors) — complies with Indian BIS and IEC international safety standards.
BIS certified (ISI mark) — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Indoasian product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What is the significance of the 63 A rating on the 811675?

A: The 63 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: Why is the 100 mA sensitivity specified on the 811675 and when should you choose a different rating?

A: 100 mA is the residual current at which the 811675 will trip within 300ms. A 30mA sensitivity provides additional shock protection (mandatory for socket circuits per IS 732). 100mA is used for fire protection (no shock protection). 300mA protects feeders without nuisance tripping. Choose based on the circuit’s risk profile — never use >30mA for socket outlet circuits in wet or high-risk locations.
