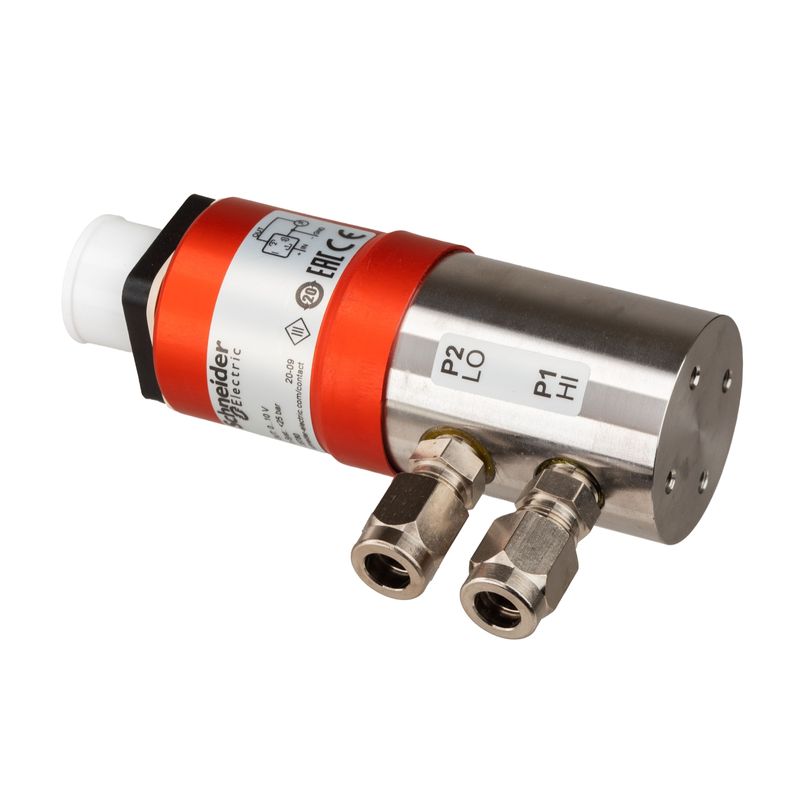

6552054000 | Diff/Pr.Water0-16bar931001161 – Schneider Electric
Original price was: ₹97,627.00.₹56,623.66Current price is: ₹56,623.66. Excl. GST
Dispatch By : 4 Weeks
Dispatch By : 4 Weeks
15
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Range of product | SPW100 |
| Product or component type | Pressure transmitter sensor |
| Sensor model | SPW114 |
| Type of measurement | Differential pressure |
| Device application | Pump and compressor differential pressure Chiller differential pressure monitoring |
| Analogue output type | 0…10 V DC |
| Burst pressure | 464 psig (32 bar) |
| Product certifications | CE |
| Controlled fluid | Water |
| Fitting size | G 1/8" |
| Fitting type | Female |
| IP degree of protection | IP65 |
| location | Plant room |
| Mounting support | Pipe |
| Depth | 40 mm |
| Height | 130 mm |
| Net weight | 430 g |
| Width | 65 mm |
| Operating current | 5 mA |
| Pressure measurement accuracy | +/- 1 % FS |
| Pressure measurement range | 0…232 psi (0…16 bar) |
| Ambient air temperature for operation | -15…85 °C |
| Wiring technique | 3-wire |
| Calibration certificate | None |
| Sensor type | Ceramic Al2O3 pressure |
| [Us] rated supply voltage | 24 V AC 22…26 V AC 18…33 V DC |
| Targeted region | Europe Asia Pacific. |
| Complementary | |
| Mounting mode | Pipe |
| Output type | Analog 3-wire |
| Material | Stainless steel: enclosure Stainless steel: fitting |
| Display type | Without display |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.4 cm |
| Package 1 Width | 7.8 cm |
| Package 1 Length | 7.2 cm |
| Package 1 Weight | 657.23 g |
| Contractual warranty | |
| Warranty (in months) | 18 |
