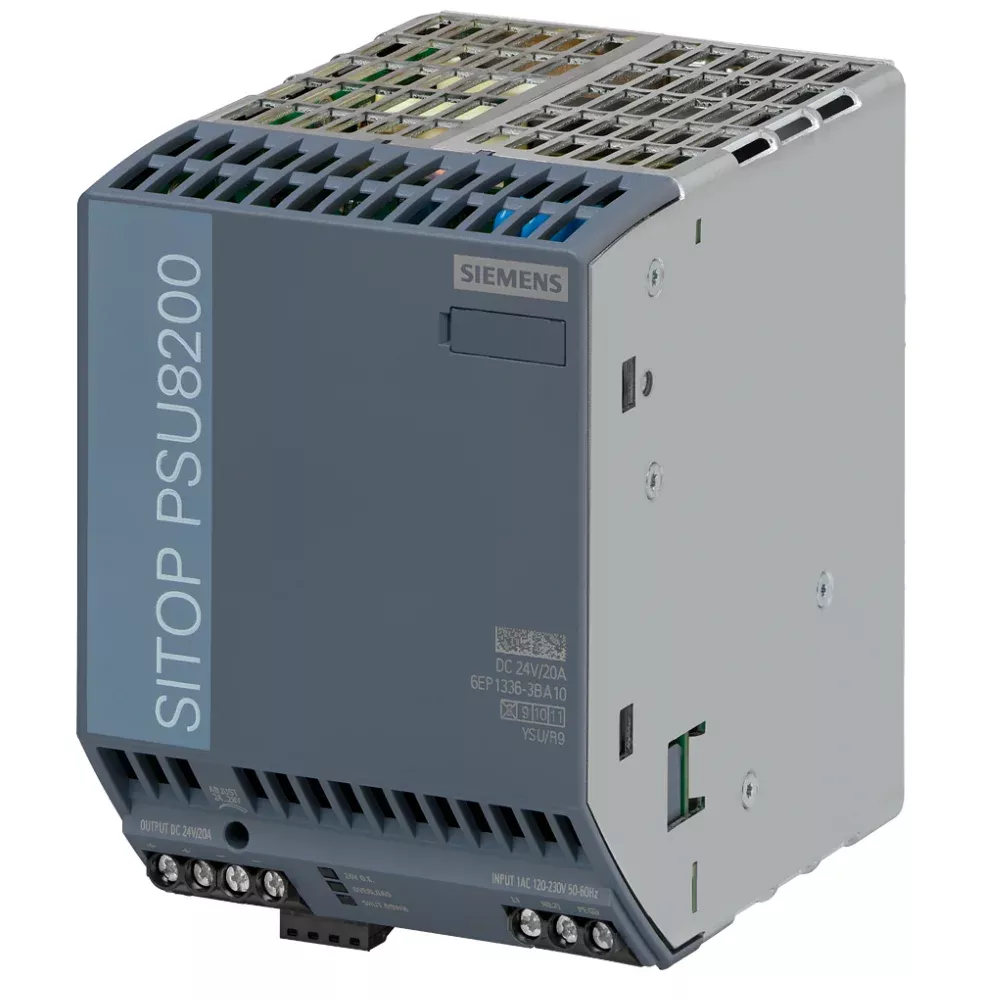

6EP13363BA10 | Siemens Sitop 6EP1 PSU8200 Stabilized Power Supply 20 A, Input 120-230 V AC 110-220 V DC, Output 24 V DC/20 A – Siemens

Name: 6EP13363BA10 | Siemens Sitop 6EP1 PSU8200 Stabilized Power Supply 20 A, Input 120-230 V AC 110-220 V DC, Output 24 V DC/20 A - Siemens - myelectric.in
Brand: Siemens
SKU: 6EP13363BA10
Price: 90868.00 INR
Availability: OutOfStock

SKU: 6EP13363BA10

₹90,868.00 Excl. GST

Out of stock

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Siemens 6EP13363BA10 is a dc power supply / smps, engineered for stable DC control power in demanding Indian and international installations. Key ratings include 20 A, 120–230V AC. Buy the 6EP13363BA10 | Siemens Sitop 6EP1 PSU8200 Stabilized Power Supply 20 A, Input 120-230 V AC 110-220 V DC, Output 24 V DC/20 A online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Parameter	Value
Brand	Siemens
Part Number / SKU	6EP13363BA10
Category	DC Power Supply / SMPS
Current Rating	20 A
Voltage Rating	120–230V AC
Output Voltage	24V DC
Input Frequency	47–63 Hz
Output Protection	Short-circuit, overload, overvoltage — auto recovery
Mounting	35mm DIN rail (EN 60715)
Cooling	Natural convection (no fan)
Standard	IEC 61204 (LV power supplies)
Certifications	BIS certified, CE, cULus (select models)

⚡ Key Features

Regulated 24V DC output — output voltage held stable across the full load range, preventing PLC, relay, and sensor malfunctions caused by supply variation.
20 A output current — sized to power a full PLC rack with I/O modules, solenoid coils, and indicator lamps from a single supply unit.
Electronic short-circuit and overload protection — output current-limits on fault and self-recovers automatically on fault clearance; no fuses to replace after a wiring short.
35mm DIN rail mounting (EN 60715) — snaps into the control panel rail alongside MCBs and terminal blocks; no separate bracket or drilling required.
Manufactured to IEC 61204 (LV power supplies) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE, cULus (select models) — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Siemens product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What is the significance of the 20 A rating on the 6EP13363BA10?

A: The 20 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: What loads can be powered from the 24V DC output of the 6EP13363BA10?

A: The 24V DC regulated DC output of the 6EP13363BA10 is suitable for PLCs, solenoid valves, and contactors with DC coils. The output is short-circuit and overload protected. Ensure total connected load current does not exceed the PSU’s rated output current (20 A). Allow 20% current headroom for inrush at startup and future load additions.

Q: Is the 6EP13363BA10 compatible with both 110V and 230V AC mains supply?

A: Yes. The 6EP13363BA10 accepts a wide-range 120–230V AC input, making it compatible with Indian 230V AC single-phase supply, 110V AC international supply, and generator output which may fluctuate. No voltage selector switch is required — the universal-input switching design handles the full input range automatically, simplifying installation and reducing procurement variants.

Q: Can multiple 6EP13363BA10 units be connected in parallel to increase output current?

A: Standard SMPS units like the 6EP13363BA10 are not designed for direct parallel operation without active current-sharing circuitry. Connecting outputs in parallel without current sharing causes one unit to carry the full load while the other idles — leading to premature failure. For higher current requirements, use a single higher-rated PSU or use Siemens-specified redundancy modules that manage load sharing and provide N+1 fault tolerance for critical applications.
