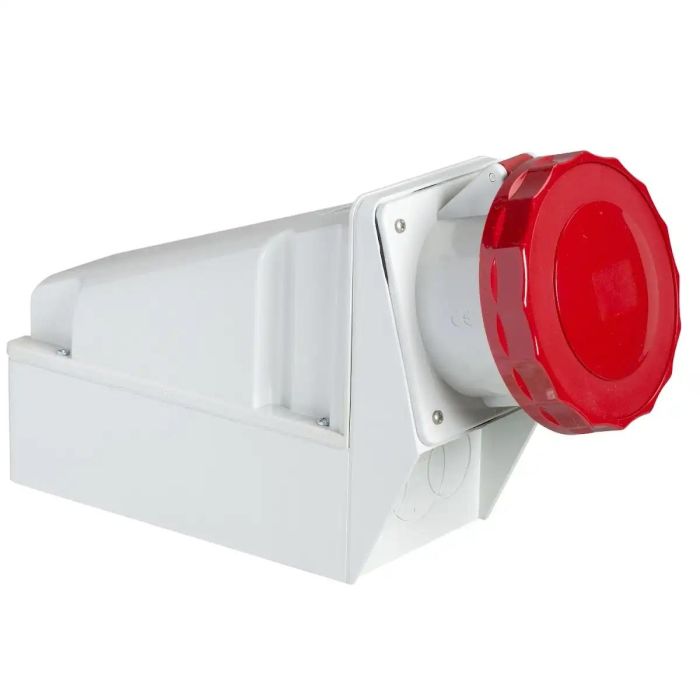

81183 | SOCLE PRISE SAIL. 63A 3PNT 380-415V IP67 – Schneider Electric

Name: 81183 | SOCLE PRISE SAIL. 63A 3PNT 380-415V IP67 - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: 81183
Price: 4457.16 INR
Availability: OutOfStock

SKU: 81183

Original price was: ₹8,254.00.Current price is: ₹4,457.16. Excl. GST

Out of stock

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-45%

81383 | PratiKa wander plug – straight – 63 A – 3P + N + E – 380…415 V AC – IP67 – Schneider Electric

Plug

Schneider Electric

Excl. GST

Add to basket

SKU: 81383

The Schneider Electric 81183 is an electrical component from the Mureva range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 63 A, 380…415 V, 3P + N + E. Buy the SOCLE PRISE SAIL. 63A 3PNT 380-415V IP67 online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	81183
Category	Electrical Component
Main
Range	Mureva
Product or component type	Socket
Device short name	Mureva socket
Plug, socket category	Low voltage
Poles description	3P + N + E
Network type	AC
Outlet standard	Industrial
Complementary
Mounting mode	Wall-mounted
Plug, socket, control station shape	Angled
[In] rated current	63 A
[Ue] rated operational voltage	380…415 V
Network frequency	50/60 Hz
Ground lug clockwise position	6 h
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Pins: stainless steel Sleeves: nickel plated brass Springs: stainless steel
Connections – terminals	Captive screws, completely loosened
Cable cross section	6…25 mm²
cable entry	Cable gland
Thread type	Pg 36
Product weight	1.02 kg
Base dimension	104 x 162 mm
Height	255 mm
Width	104 mm
Depth	180 mm
Colour	Grey (RAL 7035)
Voltage colour	Red
Environment
Standards	EN 60309-2 EN 60309-1
IP degree of protection	IP67 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-11
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s )
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	10.800 cm
Package 1 Width	18.000 cm
Package 1 Length	25.500 cm
Package 1 Weight	1.050 kg
Unit Type of Package 2	S03
Number of Units in Package 2	5
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	5.801 kg
Unit Type of Package 3	P12
Number of Units in Package 3	40
Package 3 Height	45.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	57.192 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

63 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
380–415V AC operating voltage — compatible with standard LV distribution voltages used in Indian industrial installations.
IP67 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

81383

❓ Frequently Asked Questions

Q: What is the significance of the 63 A rating on the 81183?

A: The 63 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: What environments is the IP67 rating on the 81183 suitable for?

A: IP67 means the enclosure is dust-tight (complete protection) (first digit: 6) and protected against temporary immersion up to 1m for 30 minutes (second digit: 7). This makes the 81183 suitable for outdoor, wash-down, and wet-process environments. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.
