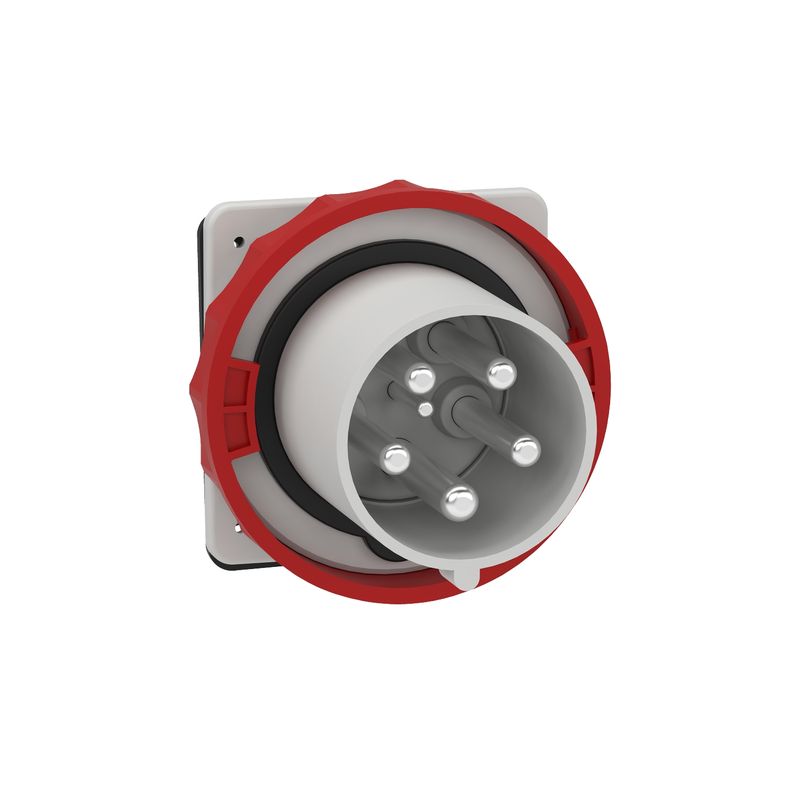

81895 | PK PANEL STRAIGHT PLUG 125A 3PNT 380-415 - Schneider Electric - Image 1

    81895 | PK PANEL STRAIGHT PLUG 125A 3PNT 380-415 – Schneider Electric

    SKU: 81895

    Original price was: ₹27,172.00.Current price is: ₹14,672.88. Excl. GST

    Dispatch By : 7 Weeks

    Dispatch By : 7 Weeks

    16 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    RangeMureva
    Product or component typePlug
    Device short namepanel mounted plugs
    Plug, socket categoryLow voltage
    Poles description3P + N + E
    Network typeAC
    Outlet standardIndustrial
    Complementary
    Mounting modePanel-mounted
    Plug, socket, control station shapeStraight
    [In] rated current125 A
    [Ue] rated operational voltage380…415 V
    Network frequency50/60 Hz
    Ground lug clockwise position6 h
    Plug, socket materialHousing: self-extinguishing polymer
    Contacts materialPins: nickel plated brass
    Connections – terminalsCaptive screws
    Cable cross section16…70 mm²
    Thread typePg 48
    Net weight1.5 kg
    Base dimension110 x 114 mm
    Height325 mm
    Width131 mm
    Depth131 mm
    ColourGrey (RAL 7035)
    Voltage colourRed
    Environment
    StandardsIEC 60309-1
    IEC 60309-2
    IP degree of protectionIP67 conforming to IEC 60529
    IK degree of protectionIK08 conforming to EN 62262
    Fire resistance850 °C conforming to IEC 60695-2-11
    Relative humidity50 % at 40 °C
    70 % at 30 °C
    90 % at 20 °C
    Operating altitude2000 m
    Ambient air temperature for operation35 °C ( 86400 s )
    -25…40 °C
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height14.4 cm
    Package 1 Width12.9 cm
    Package 1 Length12.9 cm
    Package 1 Weight1.225 kg
    Contractual warranty
    Warranty (in months)18
